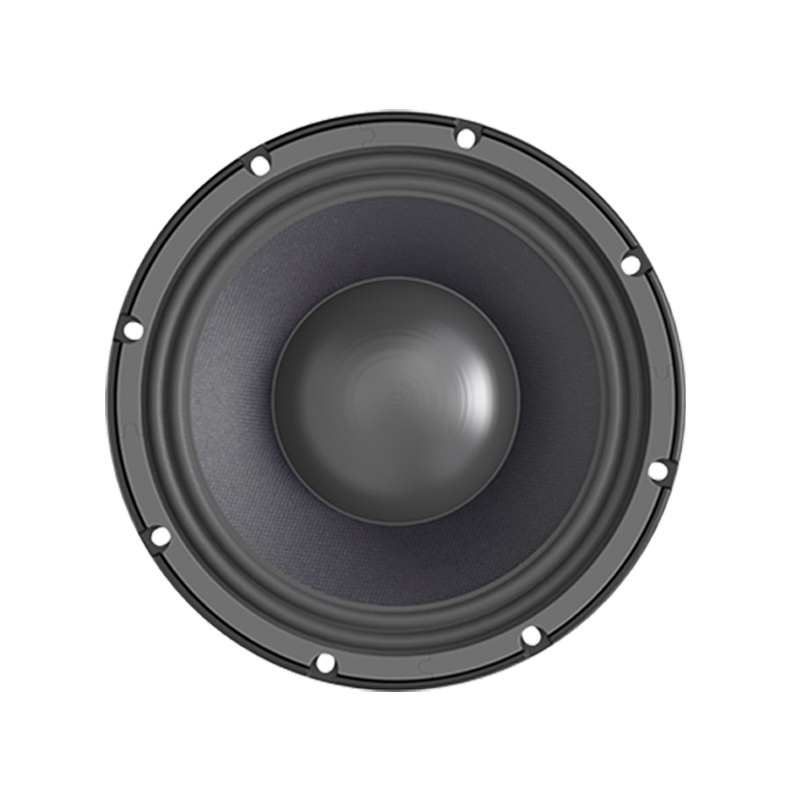

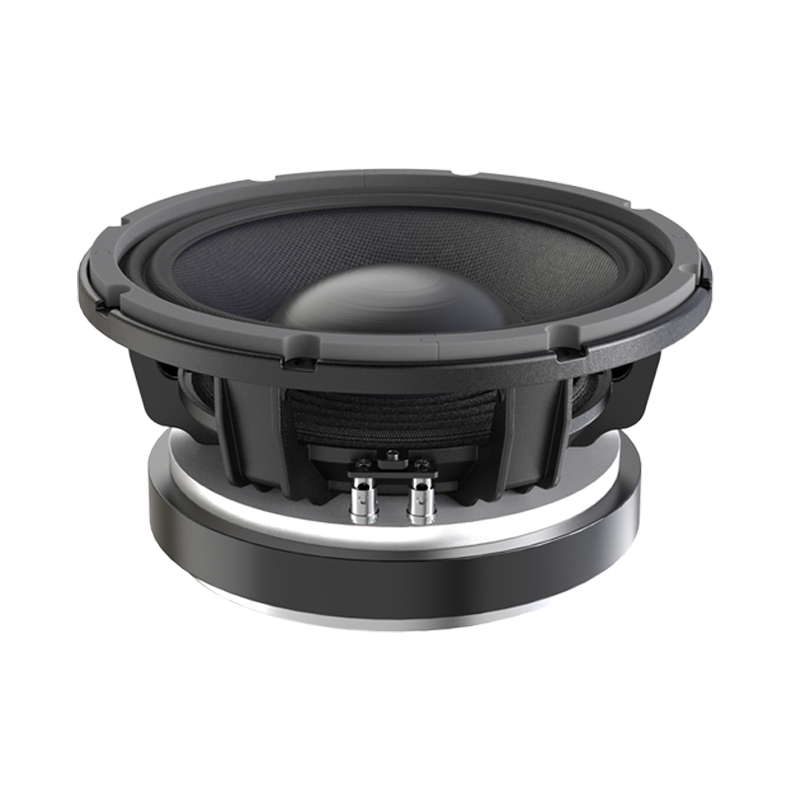

8''LF Loudspeakers
TN-8LF75
8''LF Loudspeakers
●300W RMS capacity
●75.5mm(3 in) in-outside AL voice coil
● 78-4000Hz response
● 95 dB sensitivity
● 8Ω nominal impedance
● Magnet 60Oz
| ELECTRO ACOUSTIC SPECIFICATIONS | |
| Nomina| Chassis Diameter | 8/205 in/mm |
| MAX Power | 600 Watts |
| RMS Power | 300 Watts |
| lmpedance | 8 Ohm |
| Resonance(natura|) Frequency | 78 Hz |
| Frequency Response | 78–4000 Hz |
| Sensitivity(1W/1m) | 95 dB |
| Voice Coi| Diameter | 3"/75.5mm |
| Wind|ing materia| | AL |
| Magnet | 60 Oz 170X86X20mm |
| mounting/shipping information | |
| Overa|| Diameter | 8.3/212 in/mm |
| Bo|t Circ|e Diameter | 7.8/198 in/mm |
| Baffle cutout Diameter | 7.1/180 in/mm |
| Depth | 4.0/103 in/mm |
| Net Weight | 4.9 kgs |
| Shipping Weight | 5.6 kgs |
| Shipping Box | 23.5X23.5X13.5cm |
| THIELE SMALL PARAMETERS | |
| FS Hz | 78 Hz |
| Vas | 14 dm³ |
| RE Ohms | 5.4 ohm |
| Qms | 7.6 |
| Qes | 0.53 |
| Qts | 0.5 |
| BL T/m | 10 T/m |
| MMS(grms) | 20 grams |
| Xmax(mm) | 2.5 mm |
| Sd(cm²) | 200 cm² |
| Efficiency % | 1.30% |
| EBP | 147 |
