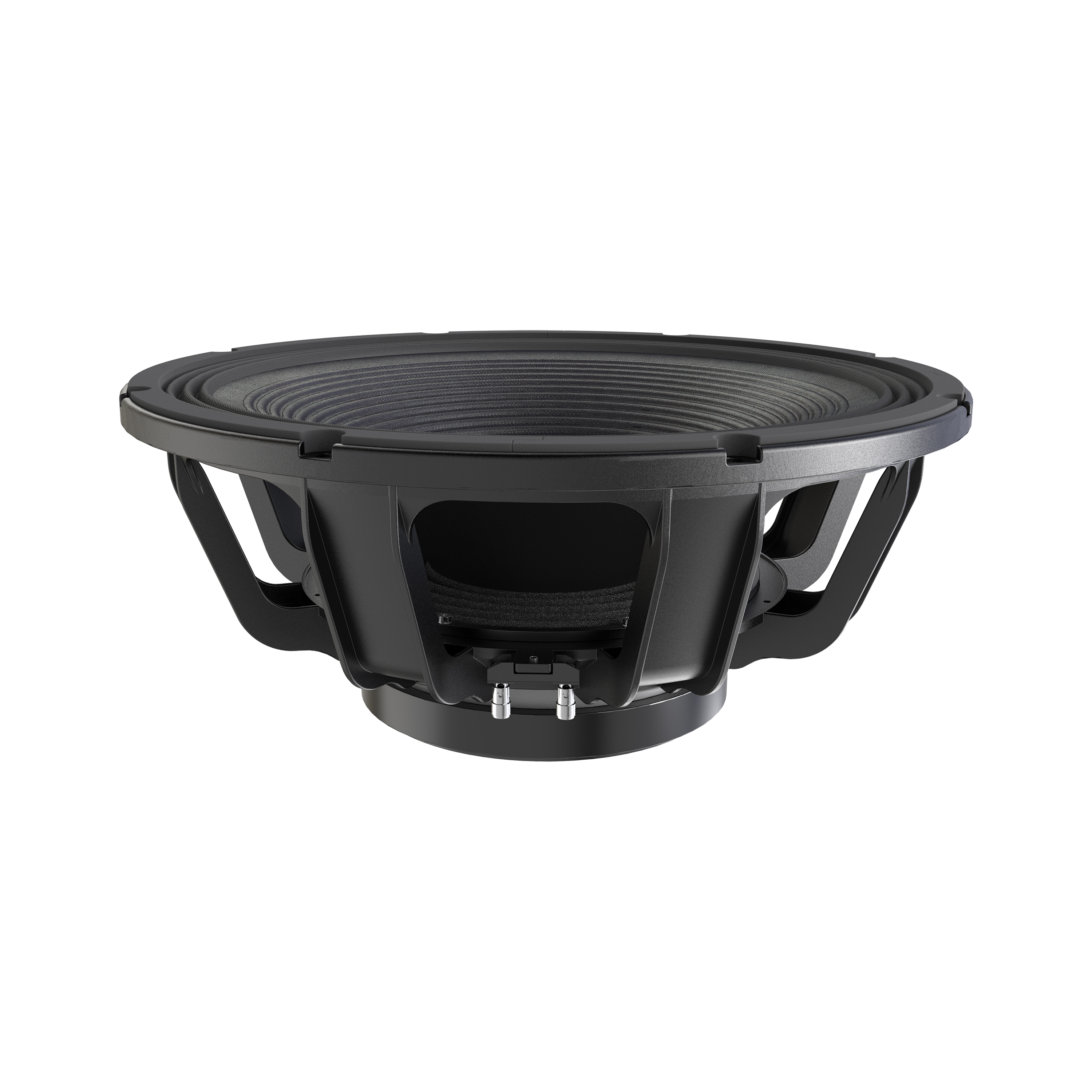

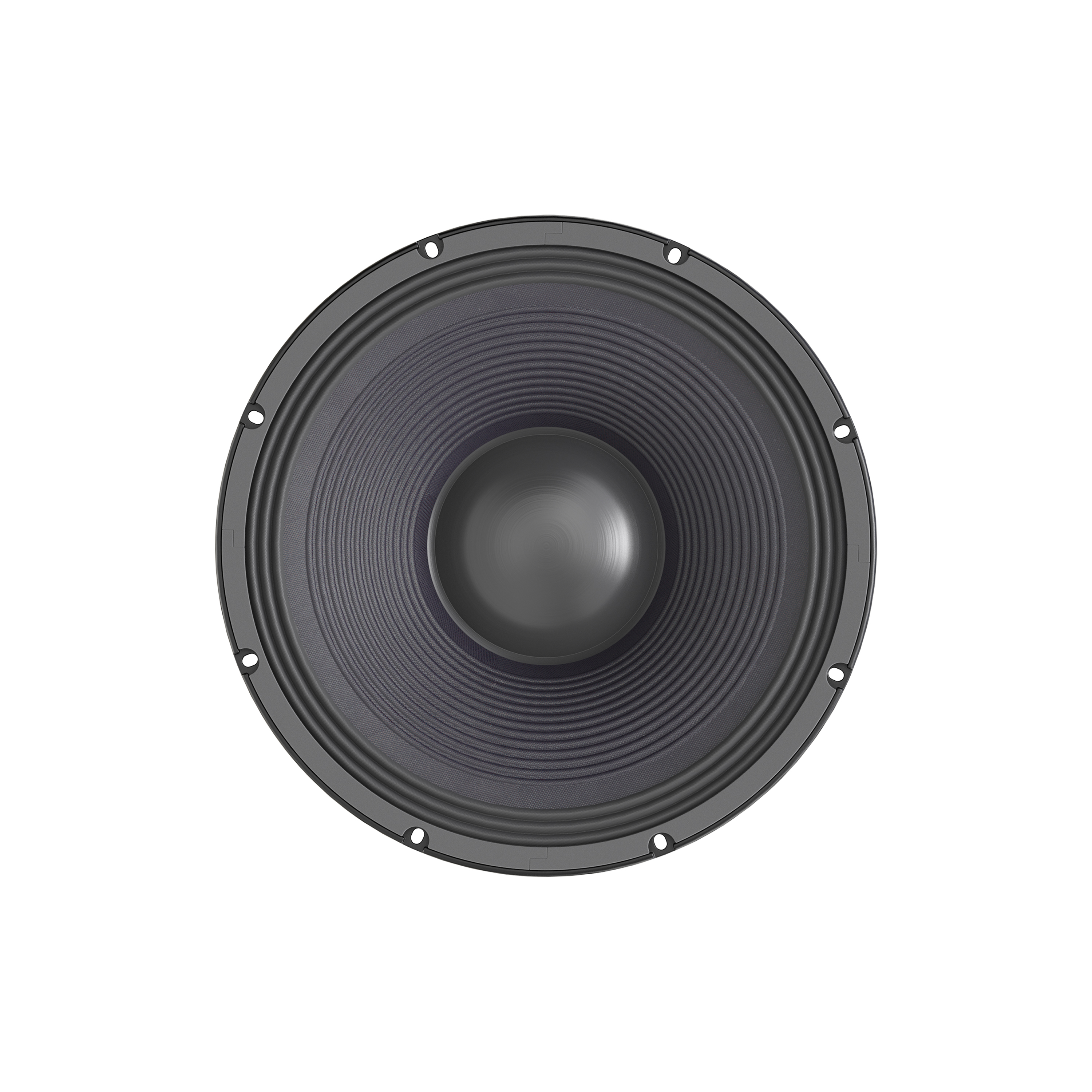

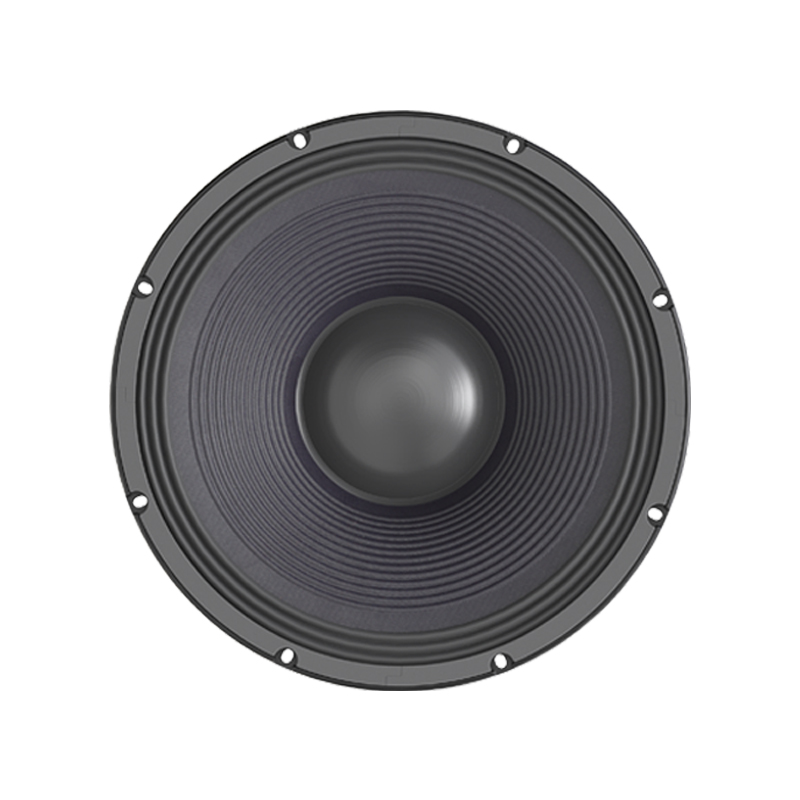

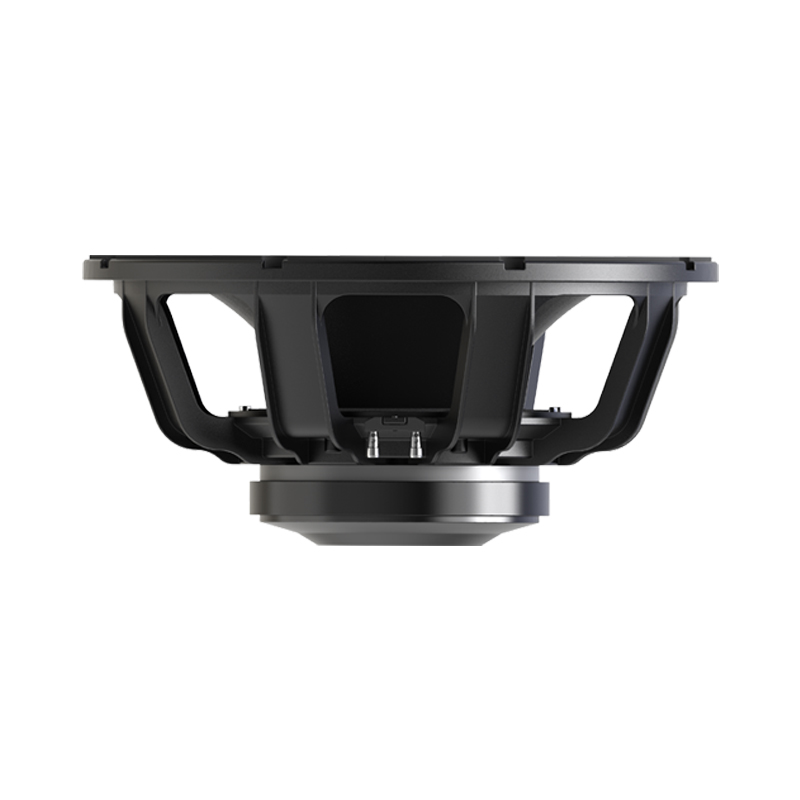

18''LF Loudspeakers
TN-18LF400
18''LF Loudspeakers
●1200W RMS capacity
●100mm(4 in) in-outside GPI voice coil
● 40-1500Hz response
● 97 dB sensitivity
● 8Ω nominal impedance
● Magnet 150Oz
| ELECTRO ACOUSTIC SPECIFICATIONS | |
| Nominal Chassis Diameter | 18/460 in/mm |
| MAX Power | 2400 Watts |
| RMS Power | 1200 Watts |
| Impedance | 8 Ohm |
| Resonance(natural) Frequency | 40 Hz |
| Frequency Response | 40-1500 Hz |
| Sensitivity(1W/1m) | 97 dB |
| Voice Coil Diameter | 4"/100mm |
| Windling material | GPI(inside-outside) |
| Magnet | 150Oz 220X110X30mm |
| MOUNTING/SHIPPING INFORMATION | ||
| Overall Diameter | 18/460 in/mm | |
| Bolt Circle Diameter | 17.2/442 in/mm | |
| Baffle cutout Diameter | 16.6/420 in/mm | |
| Depth | 8.7/220 in/mm | |
| Net Weight | 14 kgs | |
| Shipping Weight | 15 kgs | |
| Shipping Box | 49.5X49.5X25cm | |
| THIELE SMALL PARAMETERS | |
| FS Hz | 40 Hz |
| Vas | 147 dm³ |
| RE Ohms | 5.6 ohm |
| Qms | 8 |
| Qes | 0.38 |
| Qts | 0.37 |
| BLT/m | 25 T/m |
| MMS(grms) | 198 grams |
| Xmax(mm) | 9.9 mm |
| Sd | 1225 cm² |
| Efficiency % | 2.50% |
| EBP | 105 |
