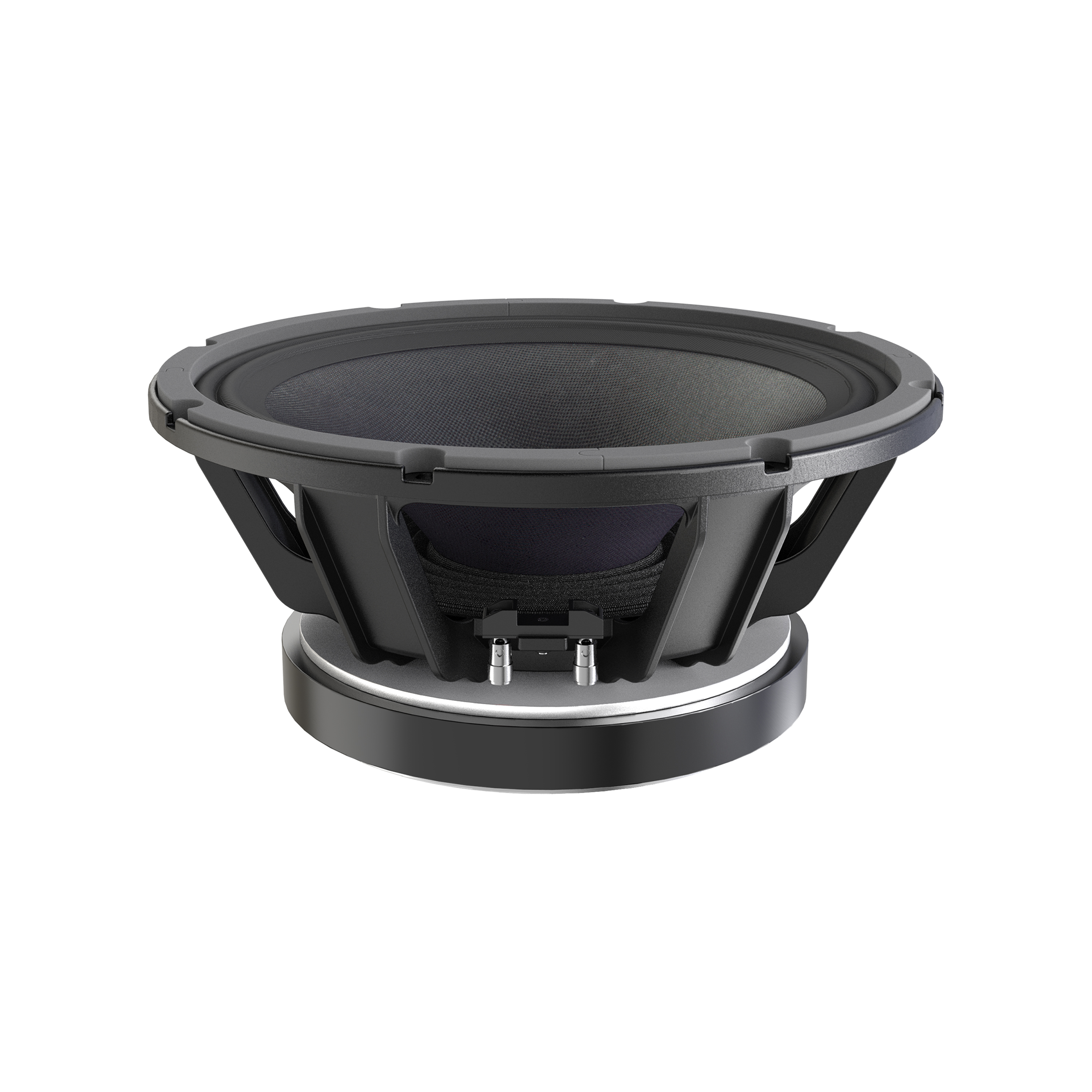

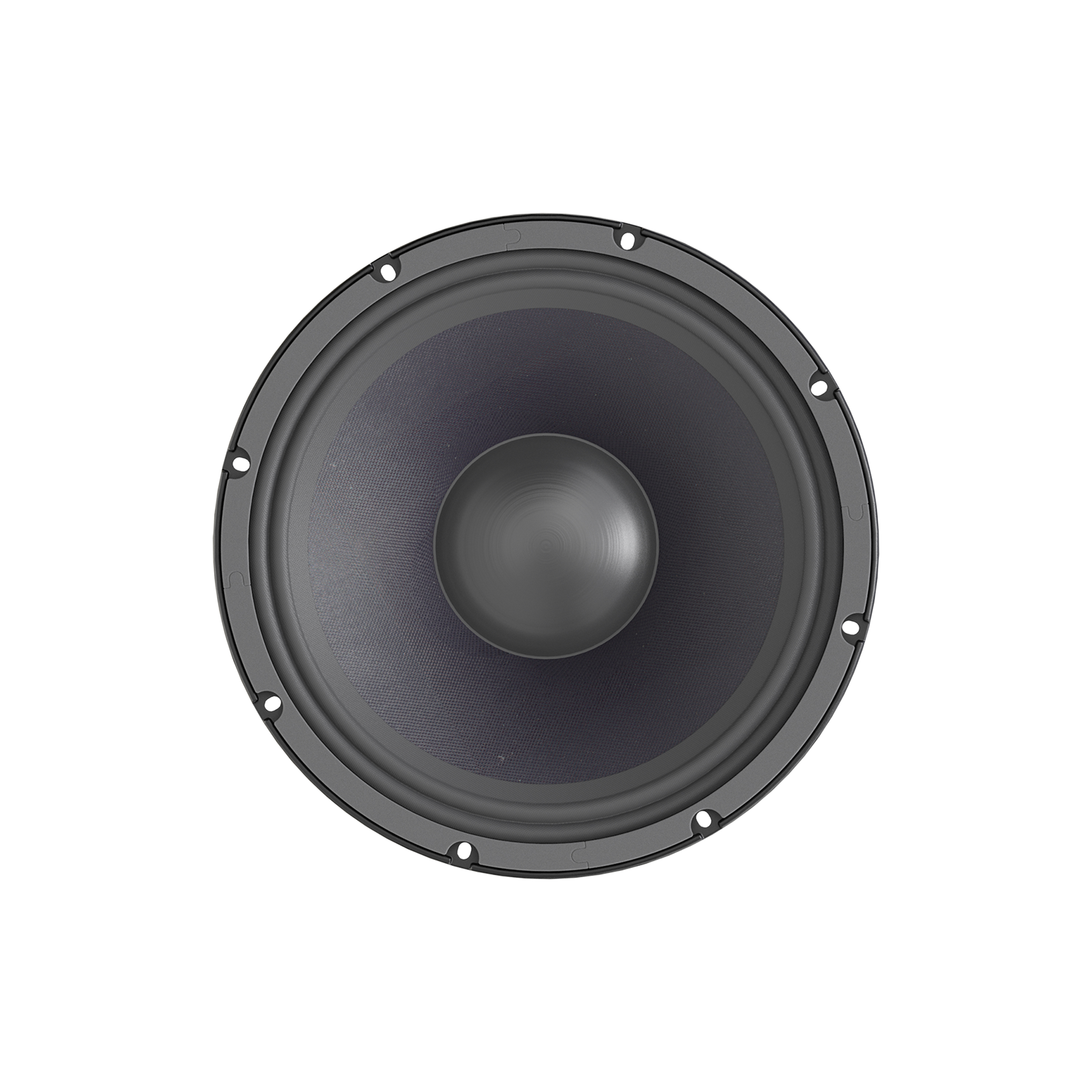

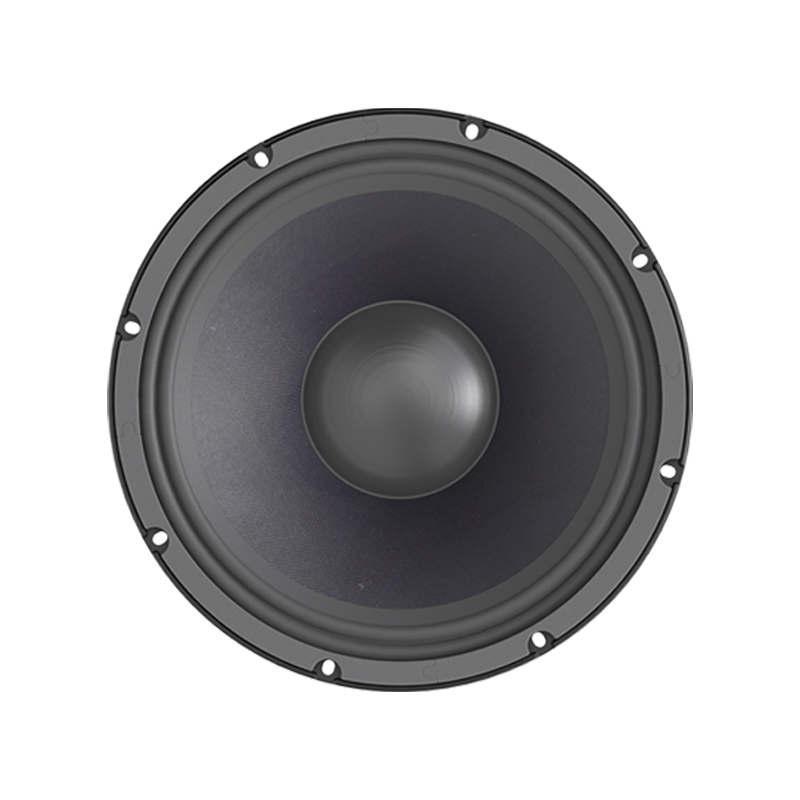

12''LF Loudspeakers
TN-12LF89
12''LF Loudspeakers
●800W RMS capacity
●89mm(3.5 in) in-outside SV voice coil
● 50-4000Hz response
● 97 dB sensitivity
● 8Ω nominal impedance
● Magnet 136Oz
| ELECTRO ACOUSTIC SPECIFICATIONS | |
| Nominal Chassis Diameter | 12/305 in/mm |
| MAX Power | 1600 Watts |
| RMS Power | 800 Watts |
| Impedance | 8 Ohm |
| Resonance(natural) Frequency | 50 Hz |
| Frequency Response | 50-4000 Hz |
| Sensitivity(1W/1m) | 97 dB |
| Voice Coil Diameter | 3.5"/89mm |
| Windling material | PICCAW (inside-outside) |
| Magnet | 136 Oz |
| 220X95X25mm | |
| mounting/shipping information | |
| Overall Diameter | 12.4/317 in/mm |
| Bolt Circle Diameter | 11.8/300 in/mm |
| Baffle cutout Diameter | 11.2/285 in/mm |
| Depth | 63/160 in/mm |
| Net Weight | 10.7 kgs |
| Shipping Weight | 11.3 kgs |
| Shipping Box | 33.5X33.5X17cm |
| thiele small parameters | |
| FS Hz | 50 Hz |
| Vas | 52 dm³ |
| RE Ohms | 5.4 ohm |
| Qms | 6.5 |
| Qes | 0.24 |
| Qts | 0.23 |
| BL T/m | 22 T/m |
| MMS(grms) | 70 grams |
| Xmax(mm) | 3.7 mm |
| Sd | 500 cm² |
| Efficiency % | 2.90% |
| EBP | 208 |
