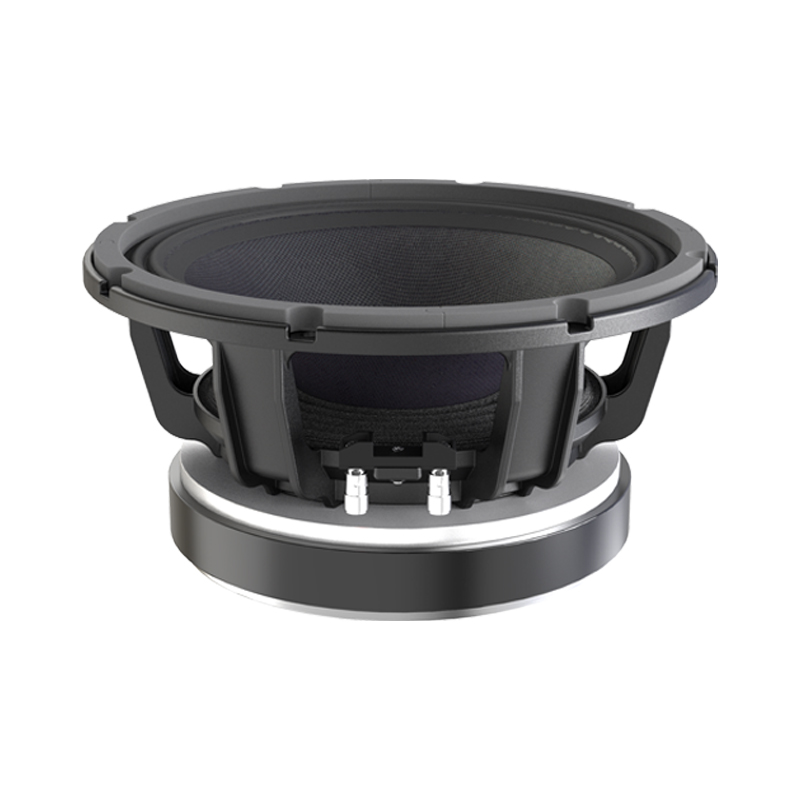

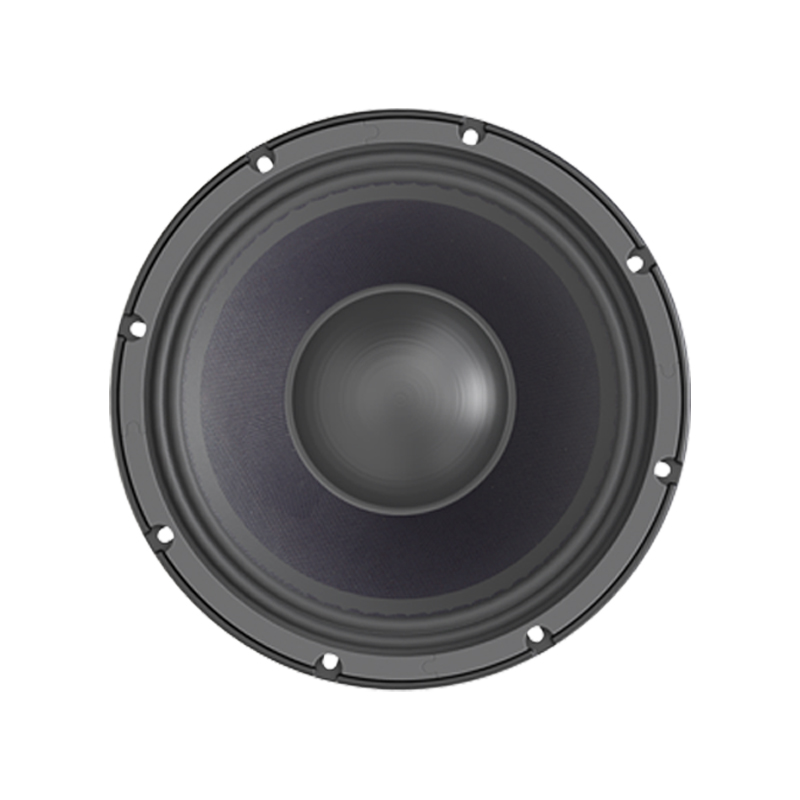

10''LF Loudspeakers
10LF75
10''LF Loudspeakers
●400W RMS capacity
●75mm(3 in) in-outside PI voice coil
● 71-5500Hz response
● 96 dB sensitivity
● 8Ω nominal impedance
● Magnet 113Oz
| ELECTRO ACOUSTIC SPECIFICATIONS | |
| Nomina| Chassis Diameter | 10/254 in/mm |
| MAX Power | 800 Watts |
| RMS Power | 400 Watts |
| lmpedance | 8 Ohm |
| Resonance(natura|) Frequency | 71 Hz |
| Frequency Response | 71–5500 Hz |
| Sensitivity(1W/1m) | 96 dB |
| Voice Coi| Diameter | 3"/75mm |
| Wind|ing materia| | Pl (inside–outside) |
| Magnet | 113 Oz 200X86X25mm |
| mounting/shipping information | |
| Overa|| Diameter | 10.4/265 in/mm |
| Bo|t Circ|e Diameter | 9.6/245 in/mm |
| Baffle cutout Diameter | 9/228 in/mm |
| Depth | 5.5/140 in/mm |
| Net Weight | 8.2 kgs |
| Shipping Weight | 8.7 kgs |
| Shipping Box | 28.5X28.5X15cm |
| thiele small parameters | |
| FS Hz | 71 Hz |
| Vas | 23 dm³ |
| RE Ohms | 5.4 ohm |
| Qms | 4.5 |
| Qes | 0.34 |
| Qts | 0.32 |
| BL T/m | 17 T/m |
| MMS(grms) | 40 grams |
| Xmax(mm) | 3.1 mm |
| Sd | 360 cm² |
| Efficiency % | 2.40% |
