1.5''throat diameter

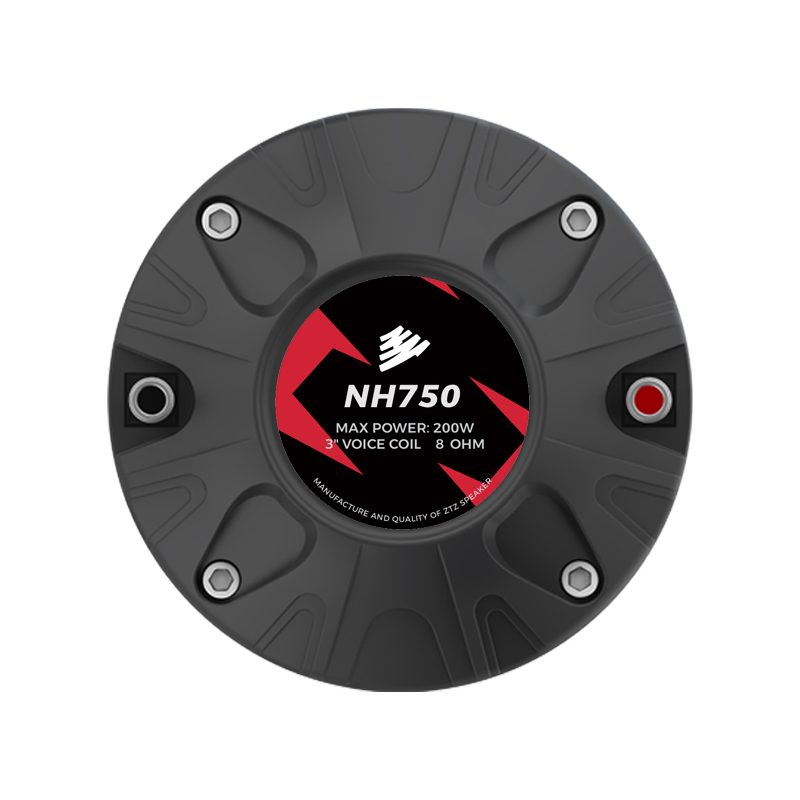

NH750
1.5''throat diameter
●74 mm(3 in) CCAR VC
● 100 Watts RMS
● Titanium diaphragm
● 800-18K Hz response
● 106 dB sensitivity
● 8Ω nominal impedance
● Magnet Neodymium
| ELECTRO ACOUSTIC SPECIFICATIONS | |
| Throat Diameter | 1.5/38 in/mm |
| MAX Power | 200 Watts |
| RMS Power | 100 Watts |

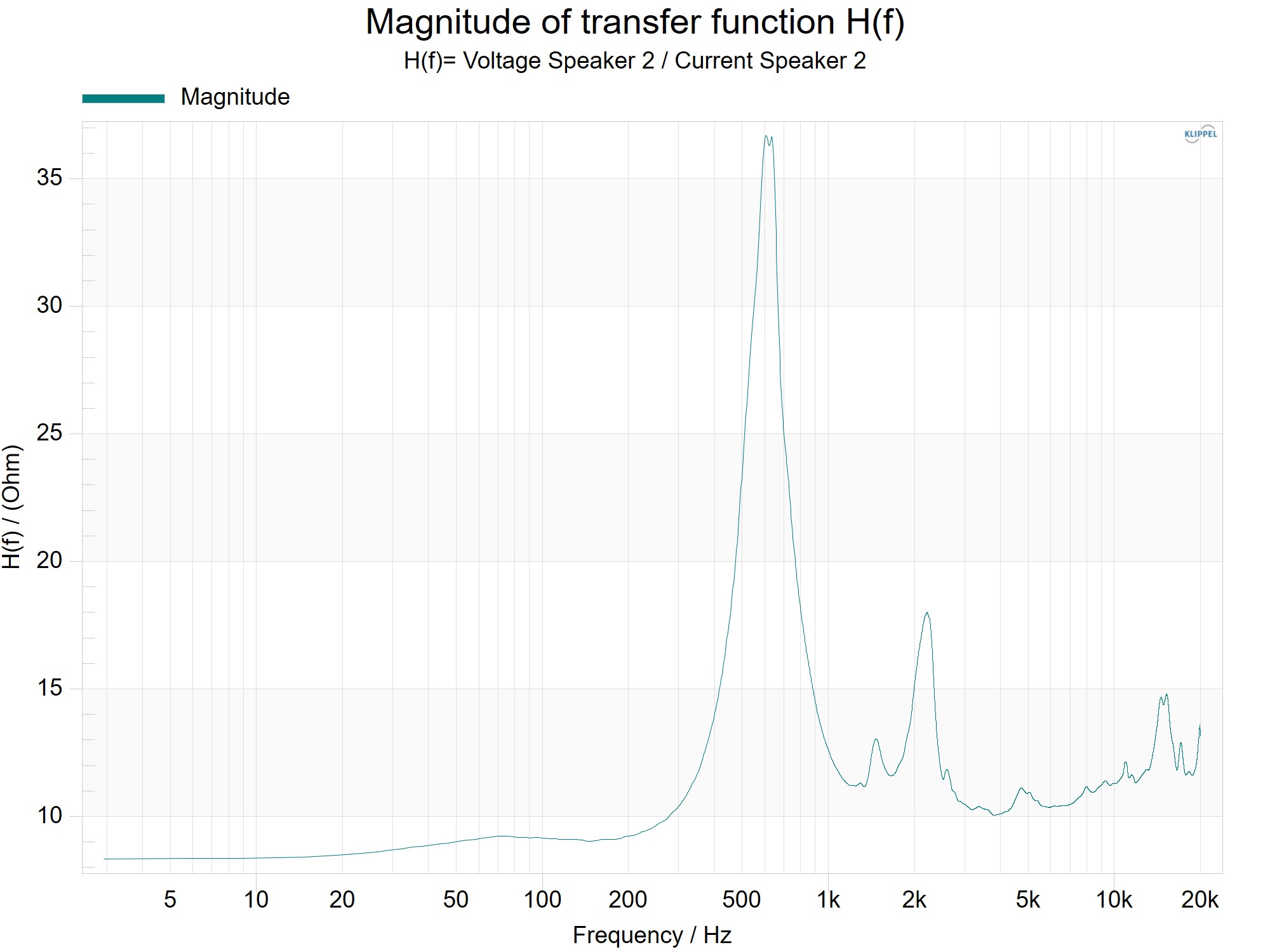

| lmpedance | 8 Ohm |
| Minimum impedance | 5.6 Ohm |

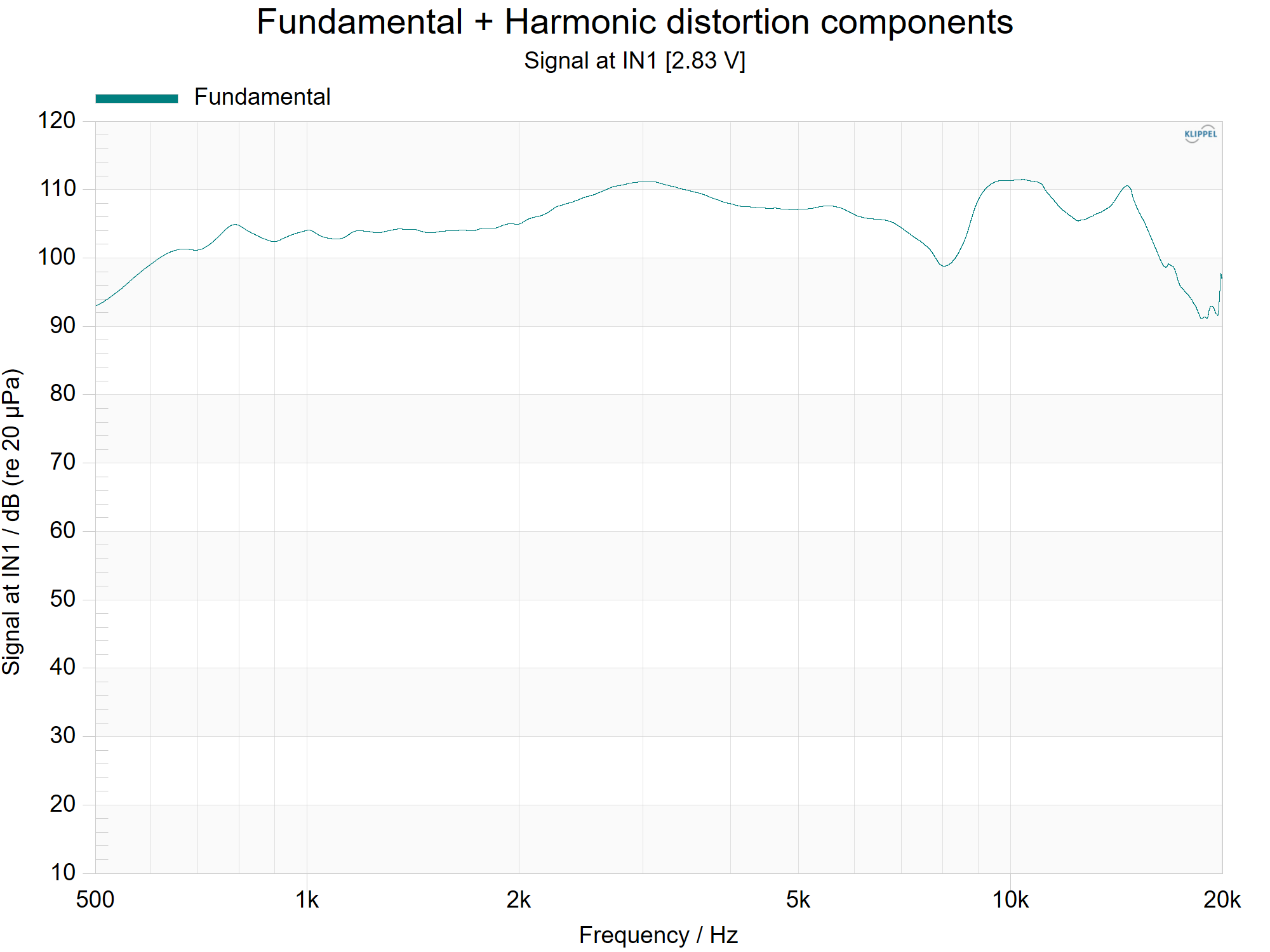

| Frequency Response | 800–18k Hz |
| Sensitivity(1W/1m) | 106 dB |
| Voice Coil Diameter | 3/74 in/mm |
| Winding material | CCAR |
| Diaphragm material | Titanium |
| Former Material | Kapton |
| Diaphragm Shape | Dome |
| Phase Plug Design | Annular |
| Magnet |
Neodymium 124x85x8 mm |
| MOUNTING/SHIPPING INFORMATION | |
| 90°Mounting Holes Diameter(4xM6) | 4.0/101 in/mm |
| Overall Diameter | 4.8/123 in/mm |
| Depth | 2.3/58 in/mm |
| Net Weight |
2.2/4.85 kgs/lb |
| Shipping Weight(1 pc) | 2.3/5.07 kgs/lb |
| Shipping Box(1 pc) |
13.5x13.5x6.5 cm 5.32x5.32x2.56 in |
