1''throat diameter

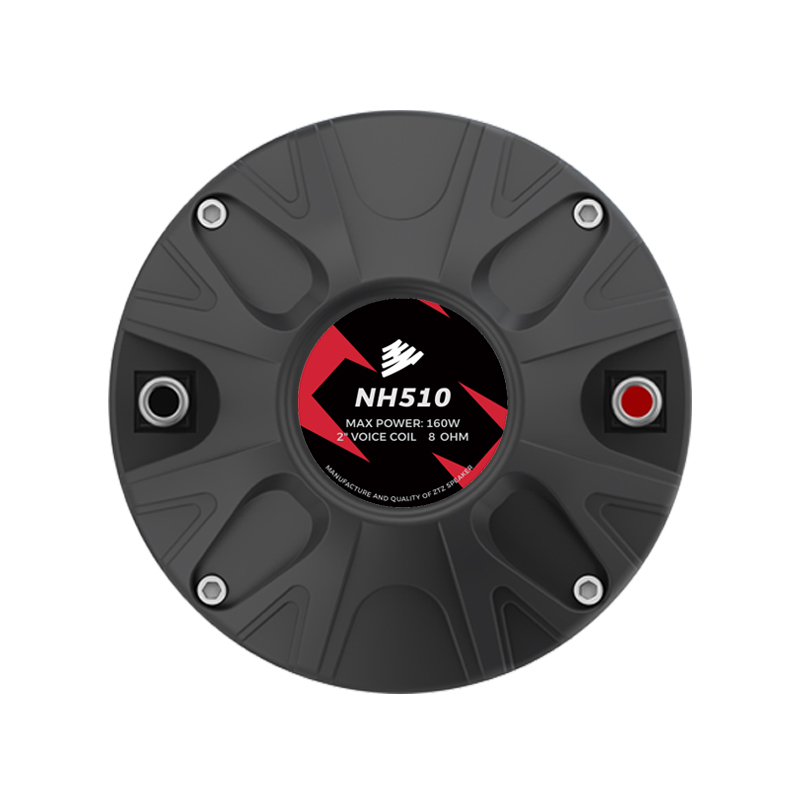

NH510
1''throat diameter
●51 mm(2 in) CCAW VC
● 80 Watts RMS
● Titanium diaphragm
● 1K-20K Hz response
● 106 dB sensitivity
● 8Ω nominal impedance
● Magnet Neodymium
| ELECTRO ACOUSTIC SPECIFICATIONS | |
| Throat Diameter | 1/25 in/mm |
| MAX Power | 160 Watts |
| RMS Power | 80 Watts |

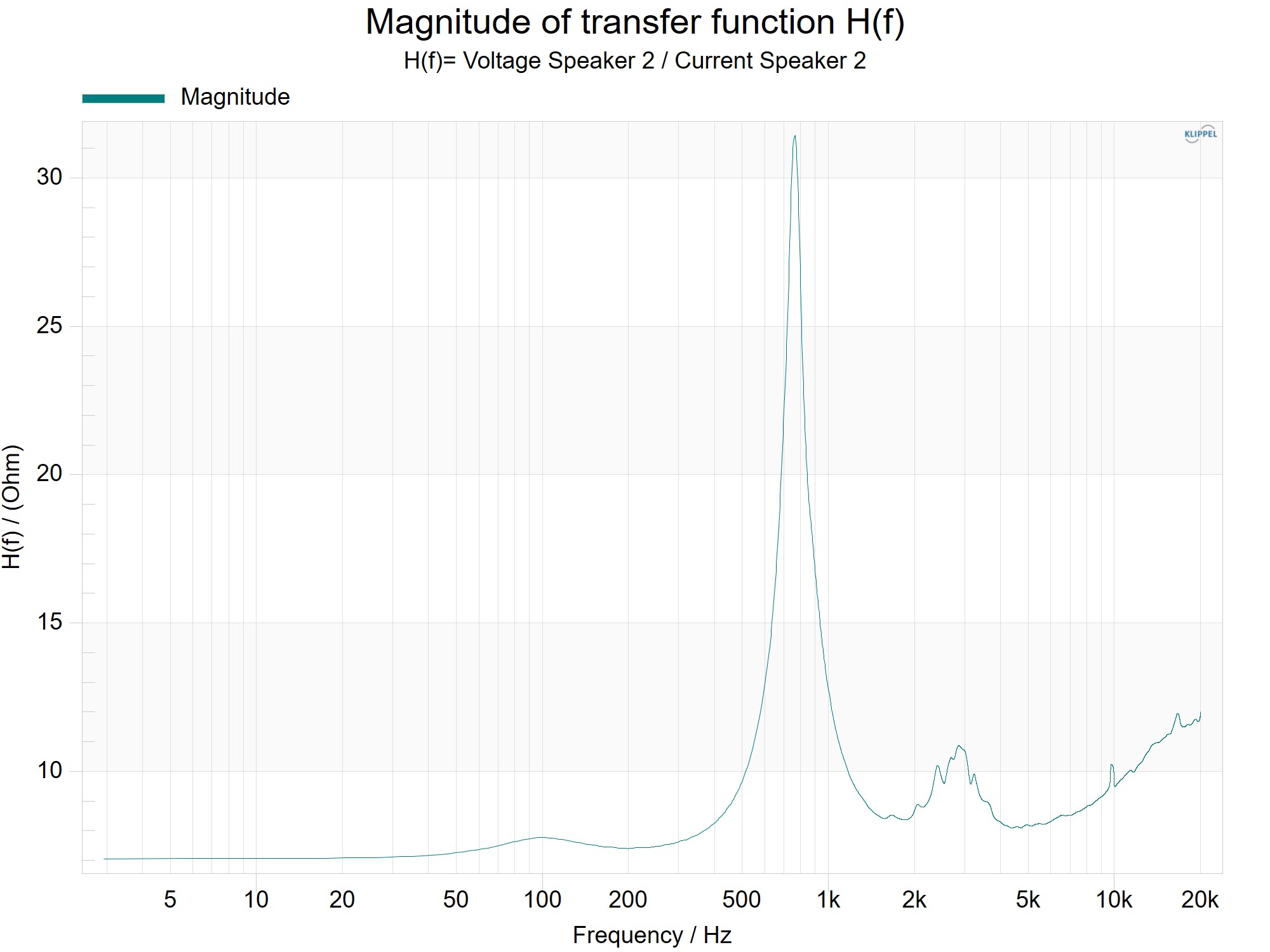

| lmpedance | 8 Ohm |
| Minimum impedance | 7.2 Ohm |

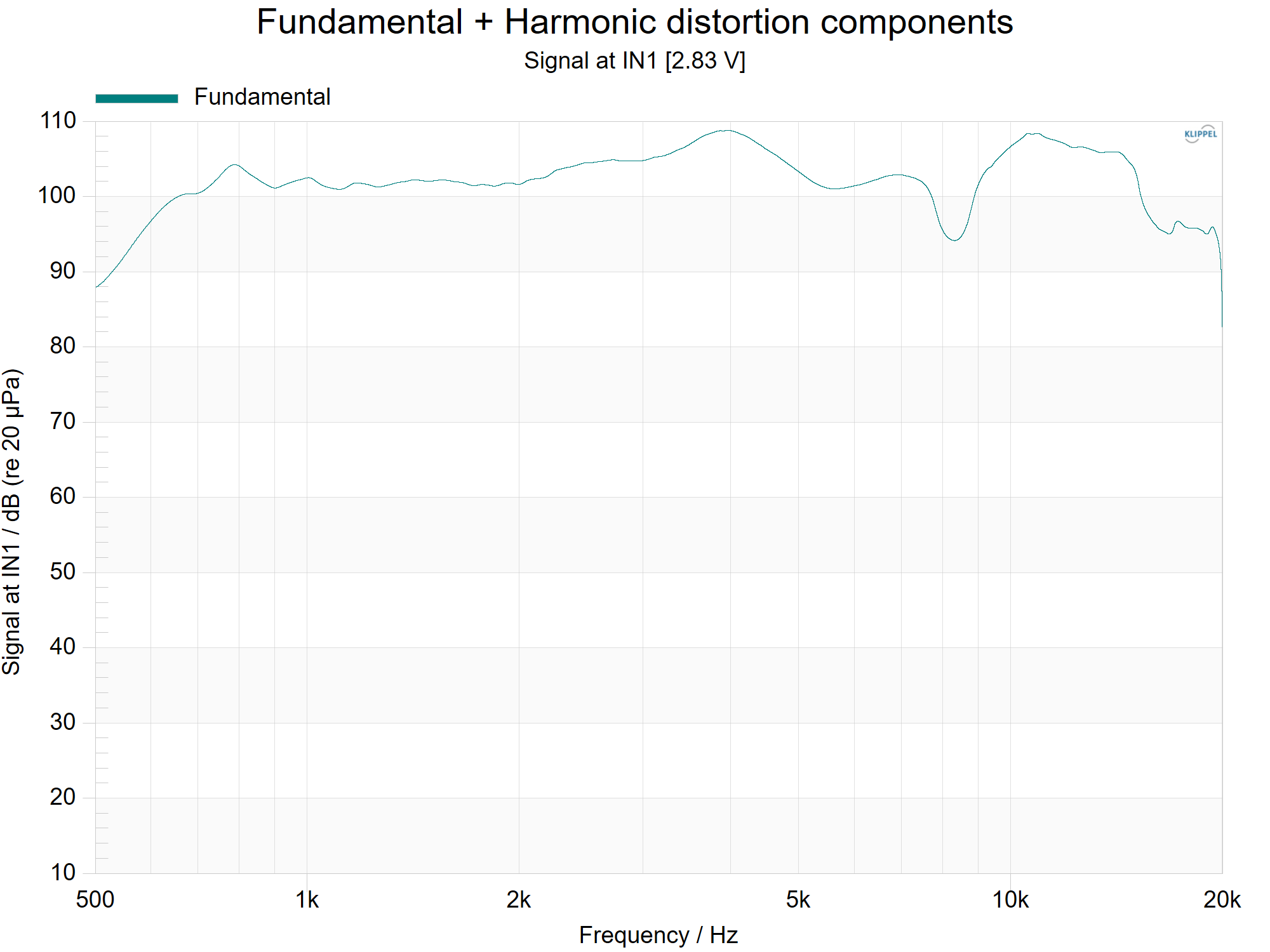

| Frequency Response | 1K–20k Hz |
| Sensitivity(1W/1m) | 106 dB |
| Voice Coil Diameter | 2/51 in/mm |
| Winding material | CCAW |
| Diaphragm material | Titanium |
| Former Material | Kapton |
| Diaphragm Shape | Dome |
| Phase Plug Design | Annular |
| Magnet |
Neodymium 112x85x6 mm |
| MOUNTING/SHIPPING INFORMATION | |
| 90°Mounting Holes Diameter(4xM6) | 4.0/102 in/mm |
| Overall Diameter | 4.4/112 in/mm |
| Depth | 2.2/50 in/mm |
| Net Weight |
1.4/3.08 kgs/lb |
| Shipping Weight(1 pc) | 1.5/3.30 kgs/lb |
| Shipping Box(1 pc) |
12.5x12.5x6.5 cm 4.92x4.92x2.56 in |
