1'' throat diameter

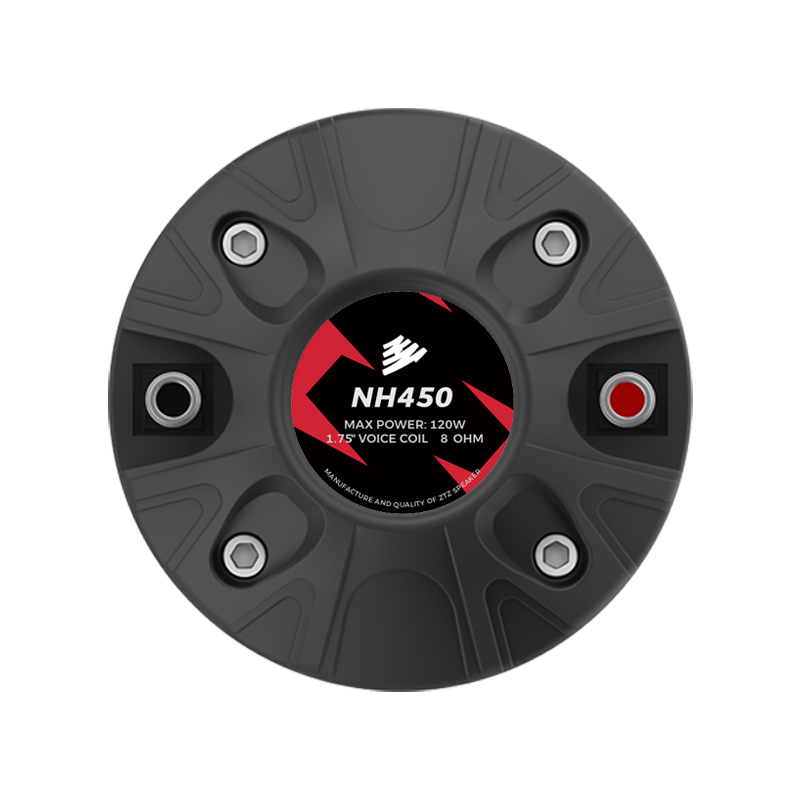

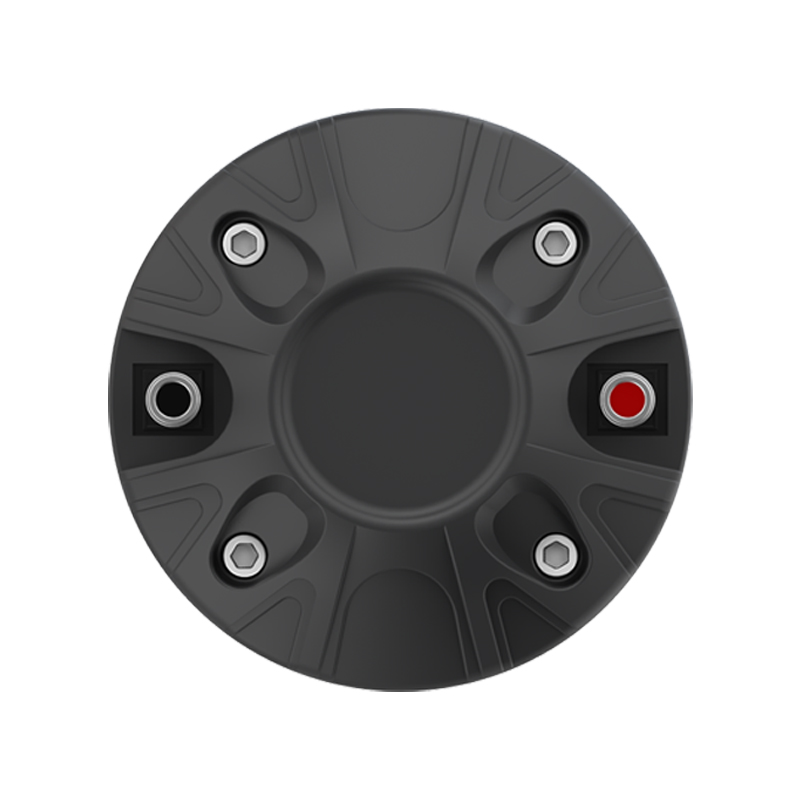

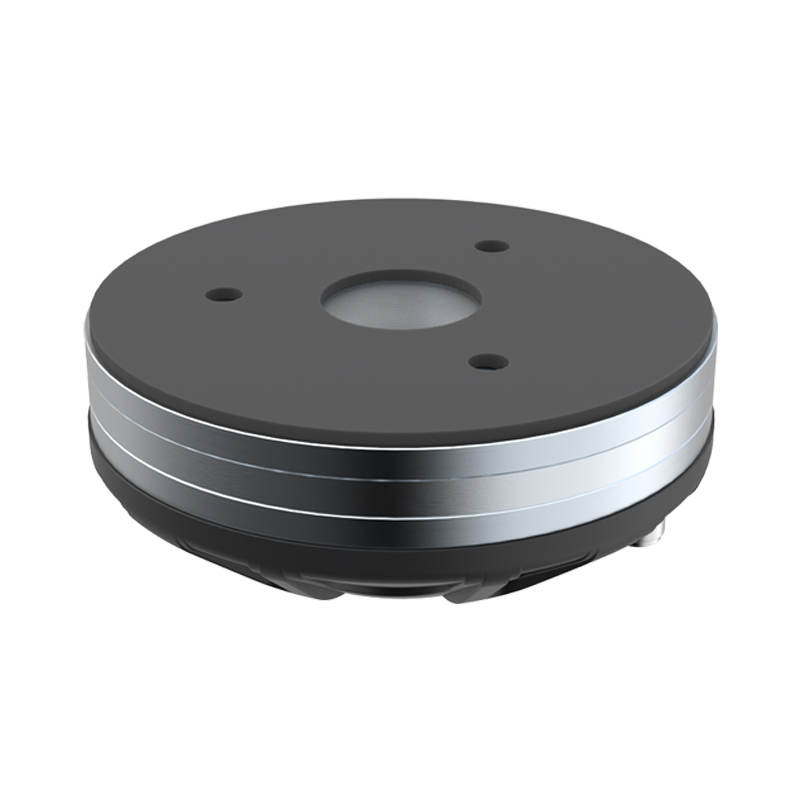

NH450
1'' throat diameter
●44 mm(1.75 in) CCAR VC
● 60 Watts RMS
● Titanium diaphragm
● 1K-20K Hz response
● 107 dB sensitivity
● 8Ω nominal impedance
● Magnet Neodymium
| ELECTRO ACOUSTIC SPECIFICATIONS | |
| Throat Diameter | 1/25 in/mm |
| MAX Power | 120 Watts |
| RMS Power | 60 Watts |

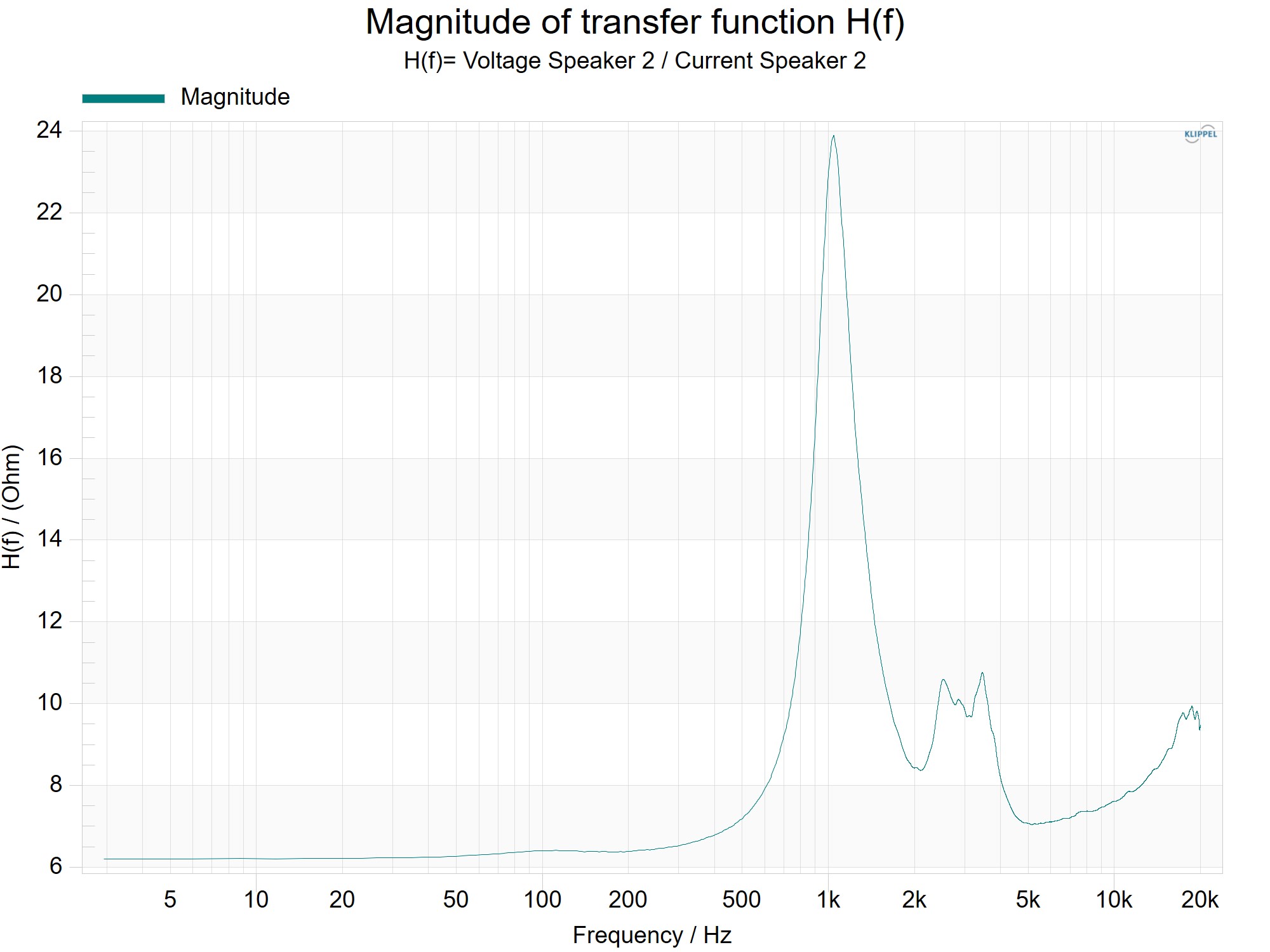

| lmpedance | 8 Ohm |
| Minimum impedance | 6 Ohm |

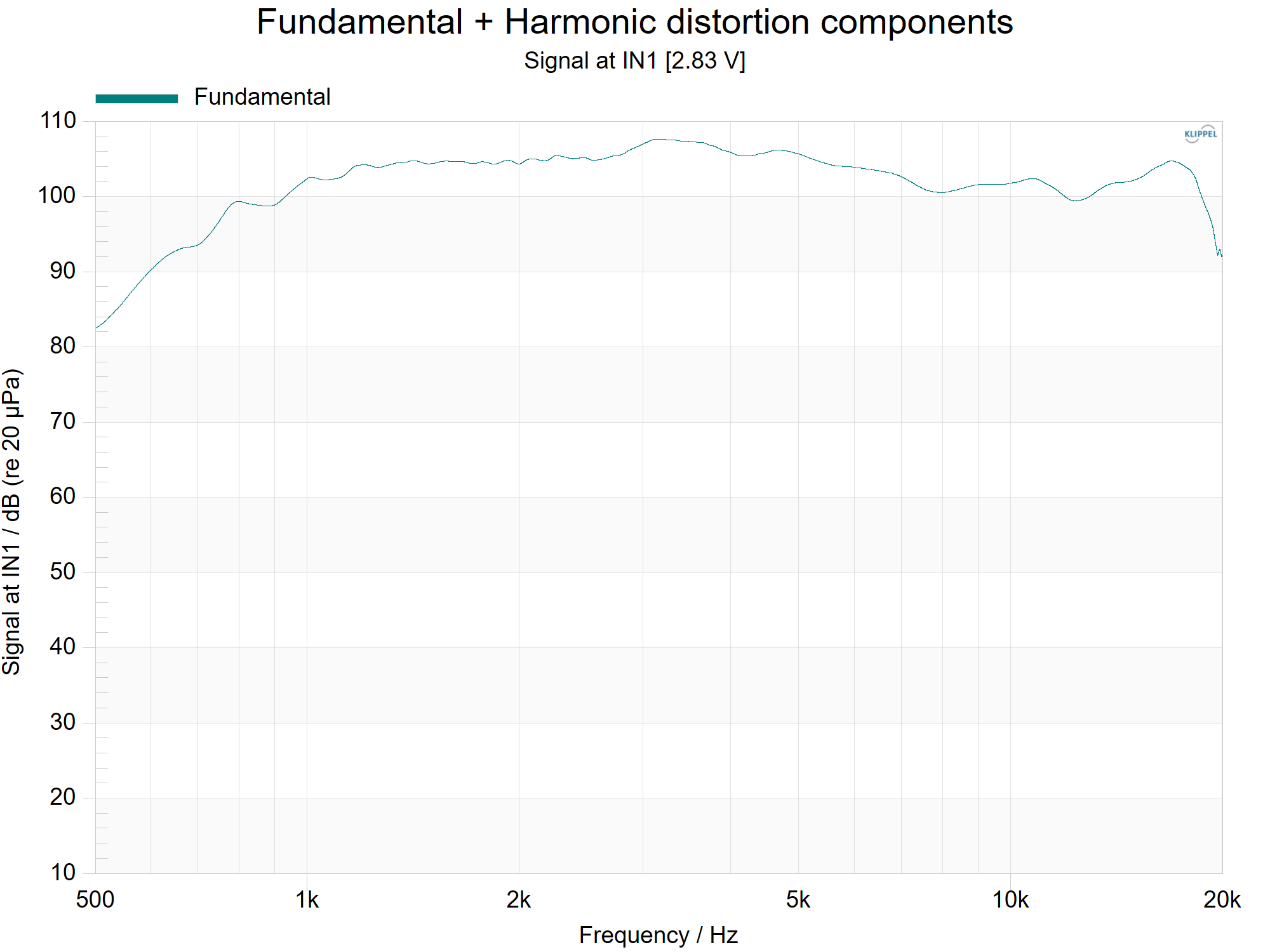

| Frequency Response | 1K–20k Hz |
| Sensitivity(1W/1m) | 107 dB |
| Voice Coil Diameter | 1.75/44 in/mm |
| Winding material | CCAR |
| Diaphragm material | Titanium |
| Former Material | Kapton |
| Diaphragm Shape | Dome |
| Phase Plug Design | Annular |
| Magnet |
Neodymium 100x50x6 mm |
| MOUNTING/SHIPPING INFORMATION | |
| 90°Mounting Holes Diameter(4xM6) | 2.2/57 in/mm |
| Overall Diameter | 4/100 in/mm |
| Depth | 1.8/45 in/mm |
| Net Weight |
1.0/2.20 kgs/lb |
| Shipping Weight(1 pc) | 1.1/2.42 kgs/lb |
| Shipping Box(1 pc) |
10.5x10.5x5 cm 4.13x4.13x1.97 in |
