2''throat diameter
DH750
2''throat diameter
●74 mm(3 in) CCAR VC
● 100 Watts RMS
● Titanium diaphragm
● 800-18K Hz response
● 108 dB sensitivity
● 8Ω nominal impedance
● Magnet 60 Oz
| ELECTRO ACOUSTIC SPECIFICATIONS | |
| Throat Diameter | 2/50 in/mm |
| MAX Power | 200 Watts |
| RMS Power | 100 Watts |

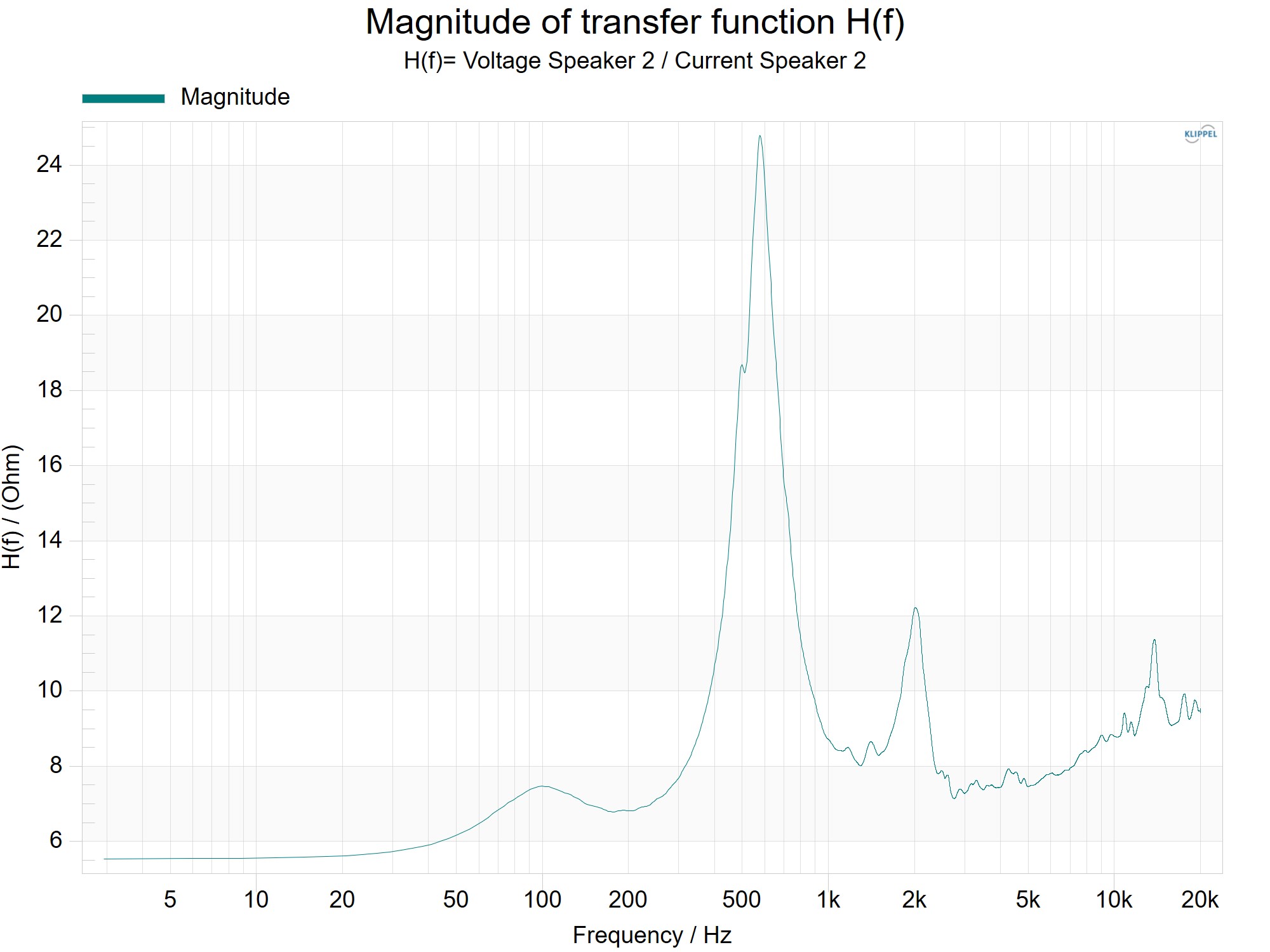

| lmpedance | 8 Ohm |
| Minimum impedance | 5.6 Ohm |

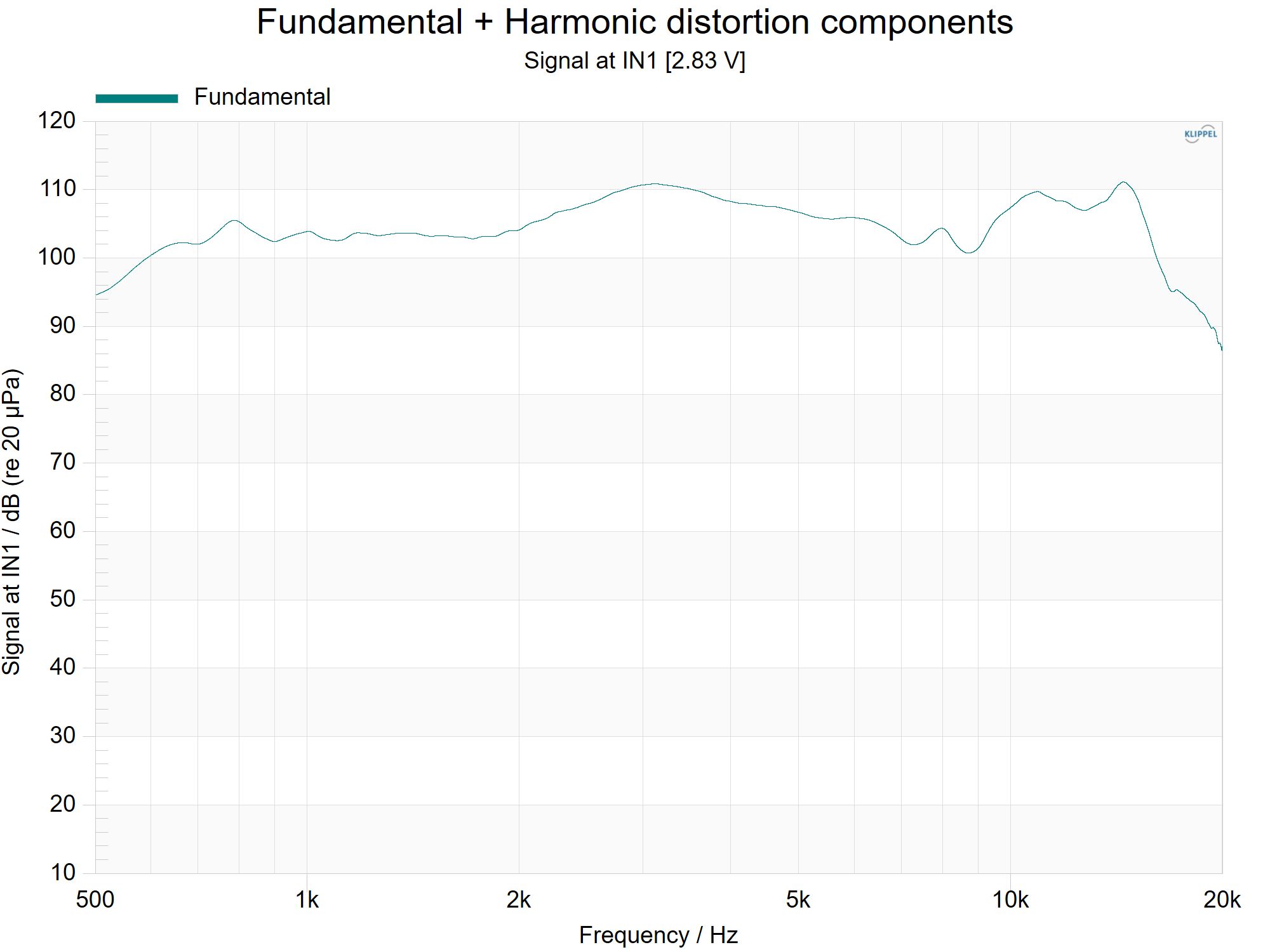

| Frequency Response | 800-18k Hz |
| Sensitivity(1W/1m) | 108 dB |
| Voice Coil Diameter | 3/74 in/mm |
| Winding material | CCAR |
| Diaphragm material | Titanium |
| Former Material | Kapton |
| Diaphragm Shape | Dome |
| Phase Plug Design | Annular |
| Magnet |
60 Oz 170x85x20 mm |
| MOUNTING/SHIPPING INFORMATION | |
| 90°Mounting Holes Diameter(4xM6) | 4.1/104 in/mm |
| Overall Diameter | 6.7/170 in/mm |
| Depth | 2.7/68 in/mm |
| Net Weight |
4.0/8.81 kgs/lb |
| Shipping Weight(1 pc) | 4.2/9.25 kgs/lb |
| Shipping Box(1 pc) |
19x18x7.5 cm 7.48x7.09x2.95 in |
