2''throat diameter

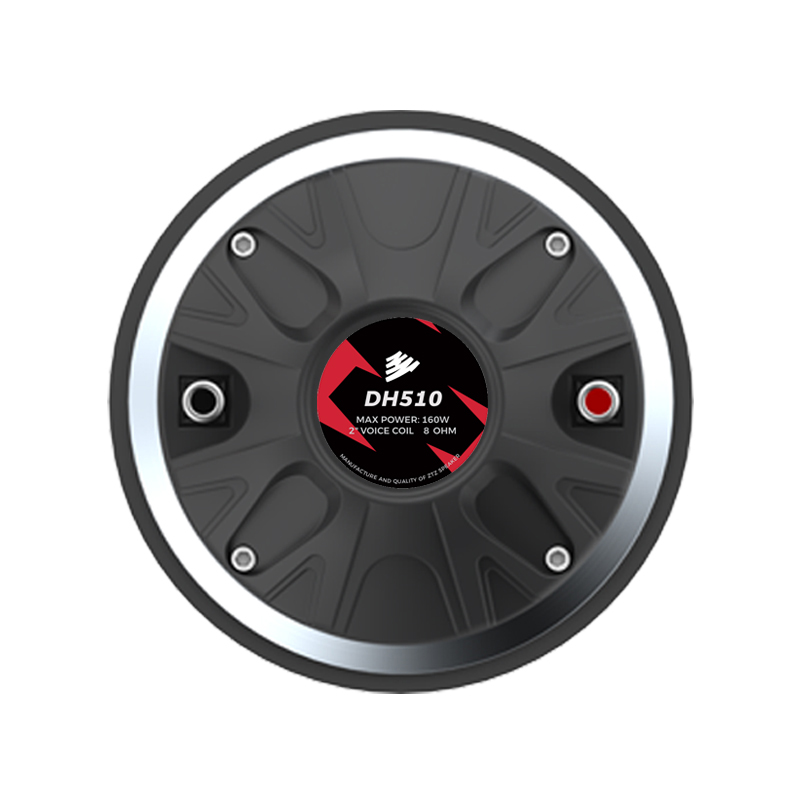

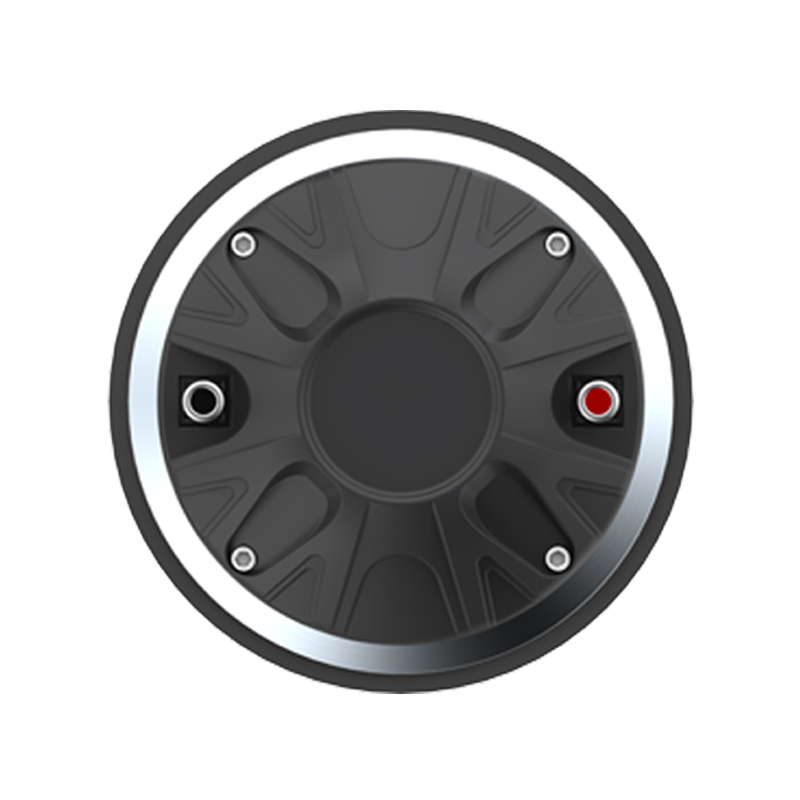

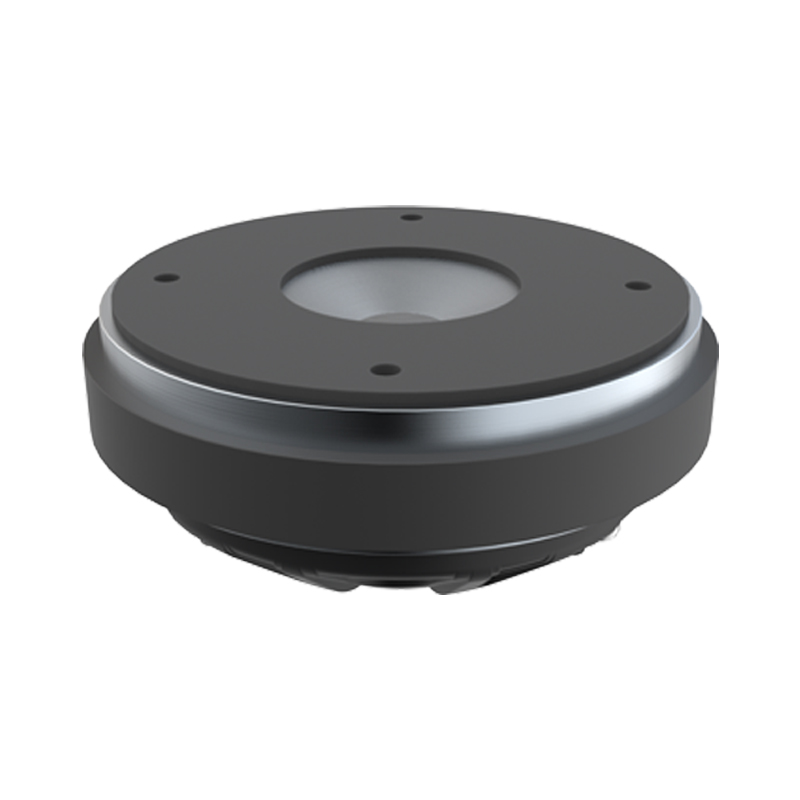

DH510
2''throat diameter
●51 mm(2 in) CCAW VC
● 80 Watts RMS
● Titanium diaphragm
● 1K-20K Hz response
● 108 dB sensitivity
● 8Ω nominal impedance
● Magnet 34Oz
| ELECTRO ACOUSTIC SPECIFICATIONS | |
| Throat Diameter | 2/50 in/mm |
| MAX Power | 160 Watts |
| RMS Power | 80 Watts |
| lmpedance | 8 Ohm |
| Minimum impedance | 7.2 Ohm |
| Frequency Response | 1K–20k Hz |
| Sensitivity(1W/1m) | 108 dB |
| Voice Coil Diameter | 2/51 in/mm |
| Winding material | CCAW |
| Diaphragm material | Titanium |
| Former Material | Kapton |
| Diaphragm Shape | Dome |
| Phase Plug Design | Annular |
| Magnet |
34 Oz 134x60x17 mm |
| MOUNTING/SHIPPING INFORMATION | |
| 90°Mounting Holes Diameter(4xM6) | 3.9/100 in/mm |
| Overall Diameter | 5.3/134 in/mm |
| Depth | 2.5/62 in/mm |
| Net Weight |
2.5/5.51 kgs/lb |
| Shipping Weight(1 pc) | 2.8/6.17 kgs/lb |
| Shipping Box(1 pc) |
15.2x14.2x6.5 cm 5.98x5.59x2.56 in |
