1'' throat diameter
DH350
1'' throat diameter
●34 mm(1.35 in) CCAW VC
● 40 Watts RMS
● Titanium diaphragm
● 1K-20K Hz response
● 106 dB sensitivity
● 8Ω nominal impedance
● Magnet 13Oz
| ELECTRO ACOUSTIC SPECIFICATIONS | |
| Throat Diameter | 1/25 in/mm |
| MAX Power | 80 Watts |
| RMS Power | 40 Watts |

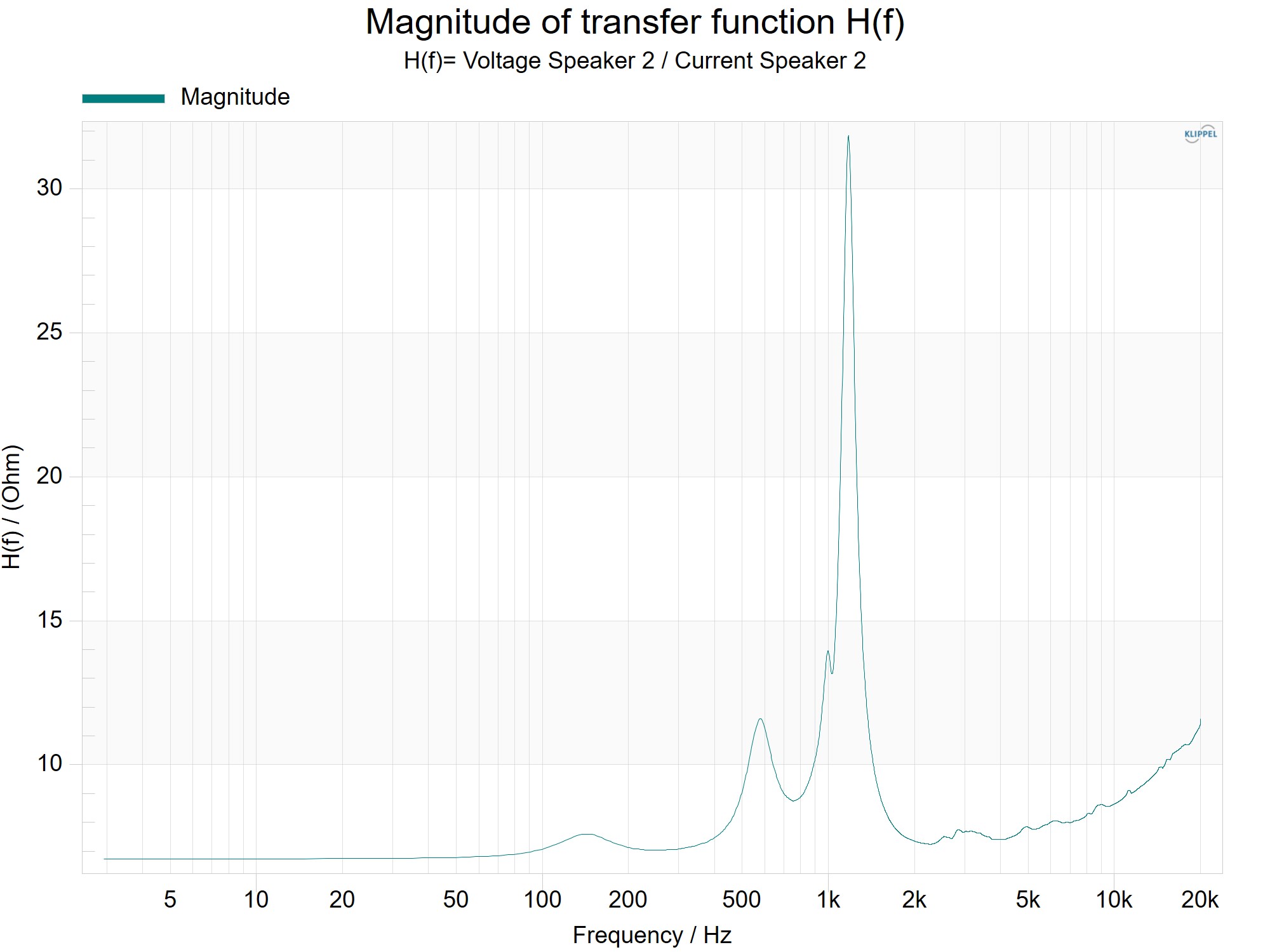

| lmpedance | 8 Ohm |
| Minimum impedance | 6.4 Ohm |

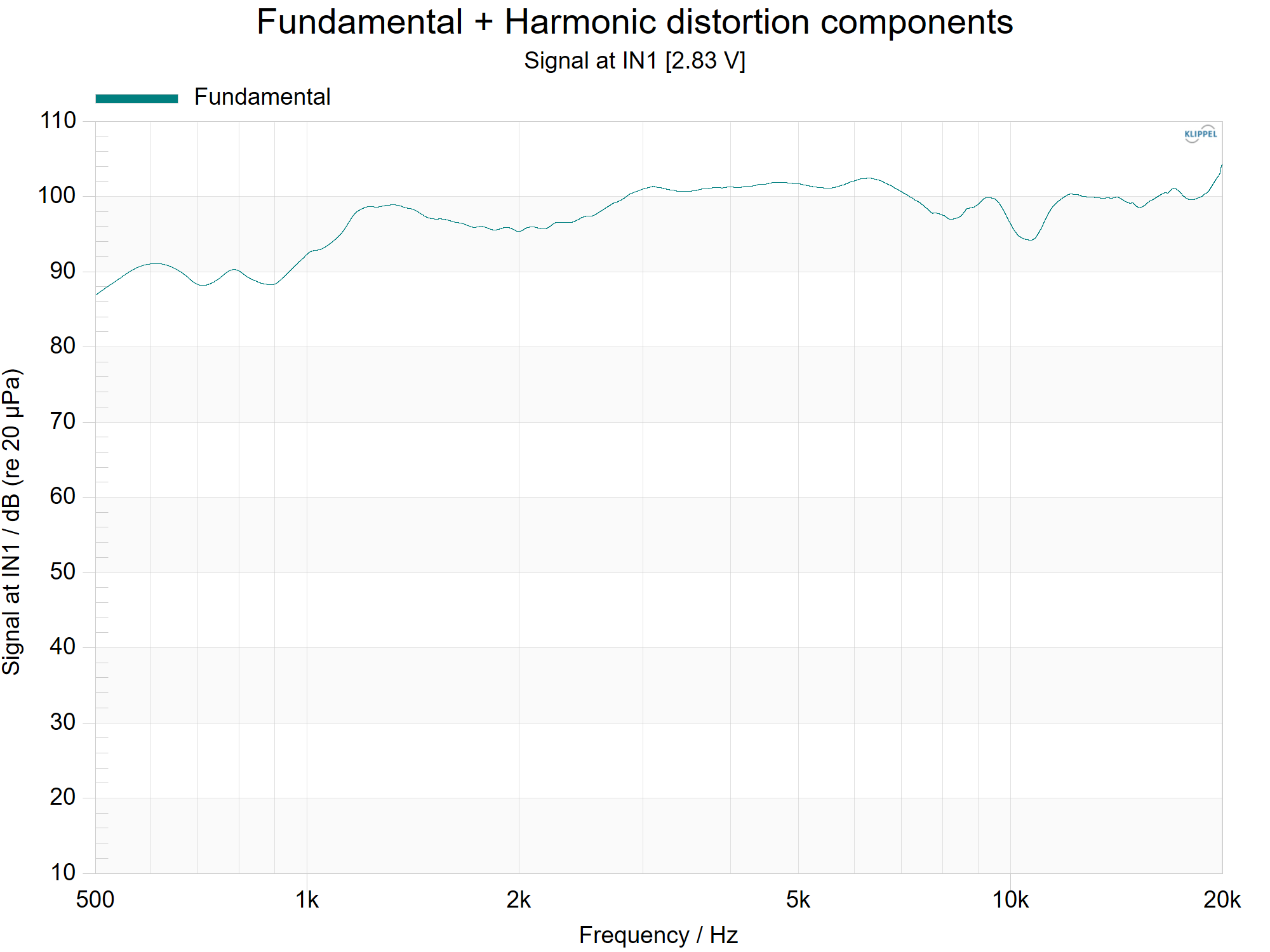

| Frequency Response | 1K–20k Hz |
| Sensitivity(1W/1m) | 106 dB |
| Voice Coil Diameter | 1. 35/ 34 in/mm |
| Winding material | CCAW |
| Diaphragm material | Titanium |
| Former Material | Kapton |
| Diaphragm Shape | Dome |
| Phase Plug Design | Annular |
| Magnet |
13 Oz 90x45x15 mm |
| MOUNTING/SHIPPING INFORMATION | |
| 90°Mounting Holes Diameter(4xM6) | 2.4/60 in/mm |
| Overall Diameter | 3. 5/90 in/mm |
| Depth | 2/50 in/mm |
| Net Weight |
0. 9/1.98 kgs/lb |
| Shipping Weight(1 pc) | 0.95/2.09 kgs/lb |
| Shipping Box(1 pc) |
9. 5X9. 5X5.5 cm 3.74x3.74x2.17 in |
