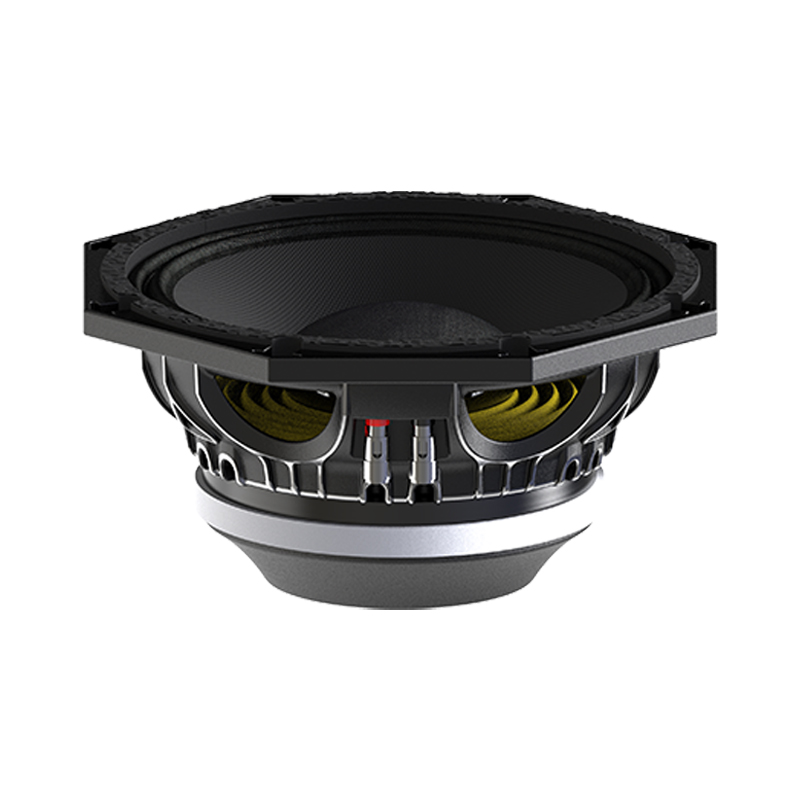

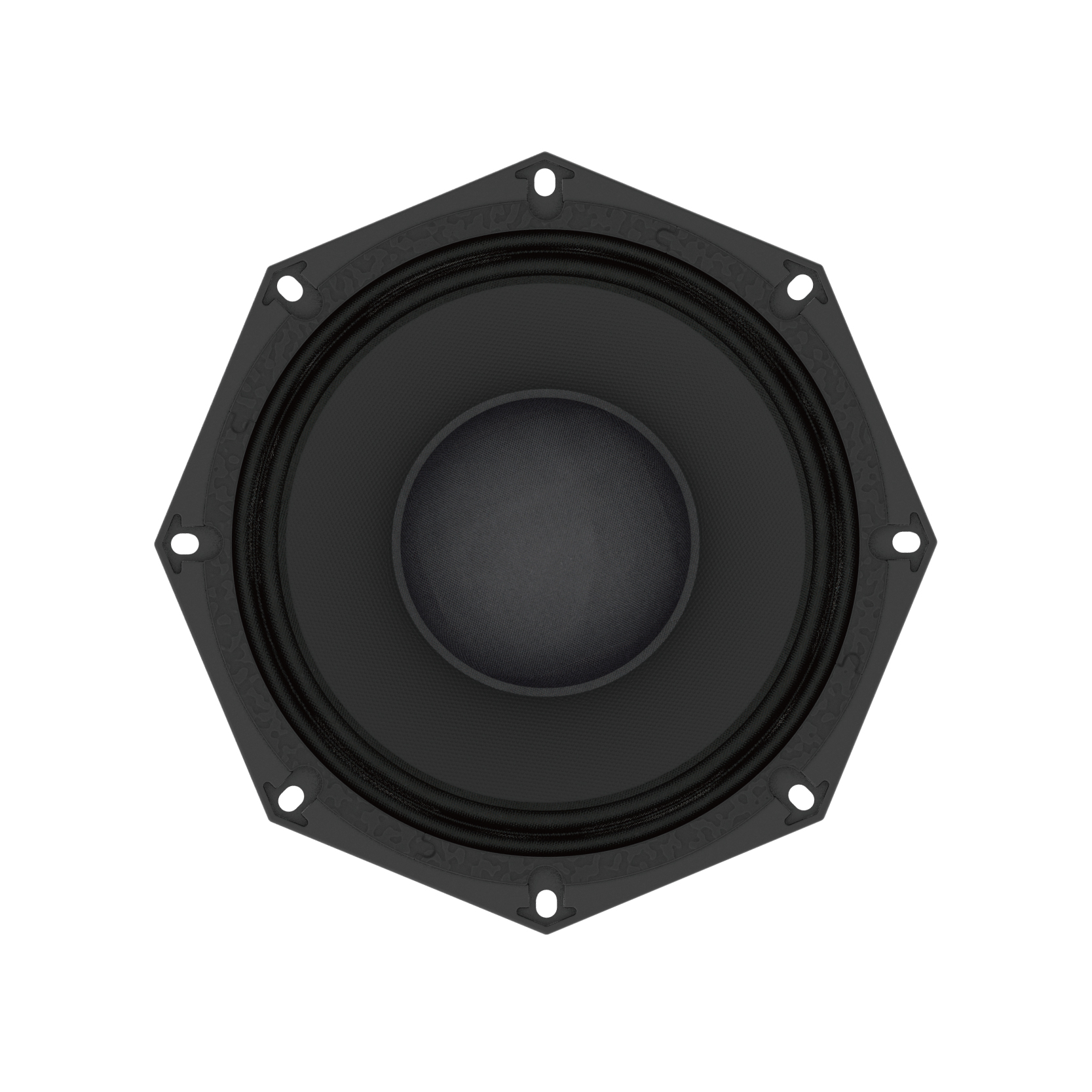

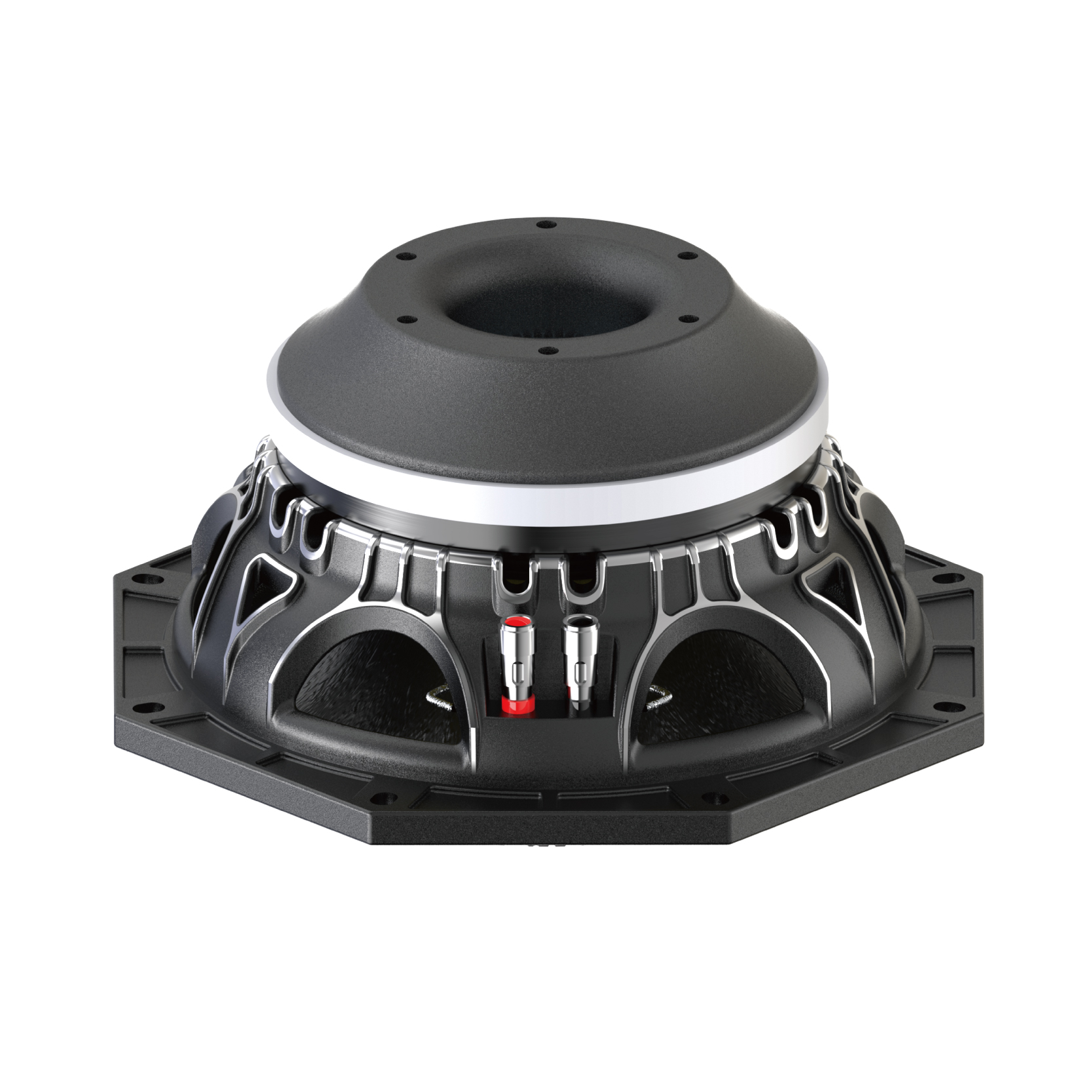

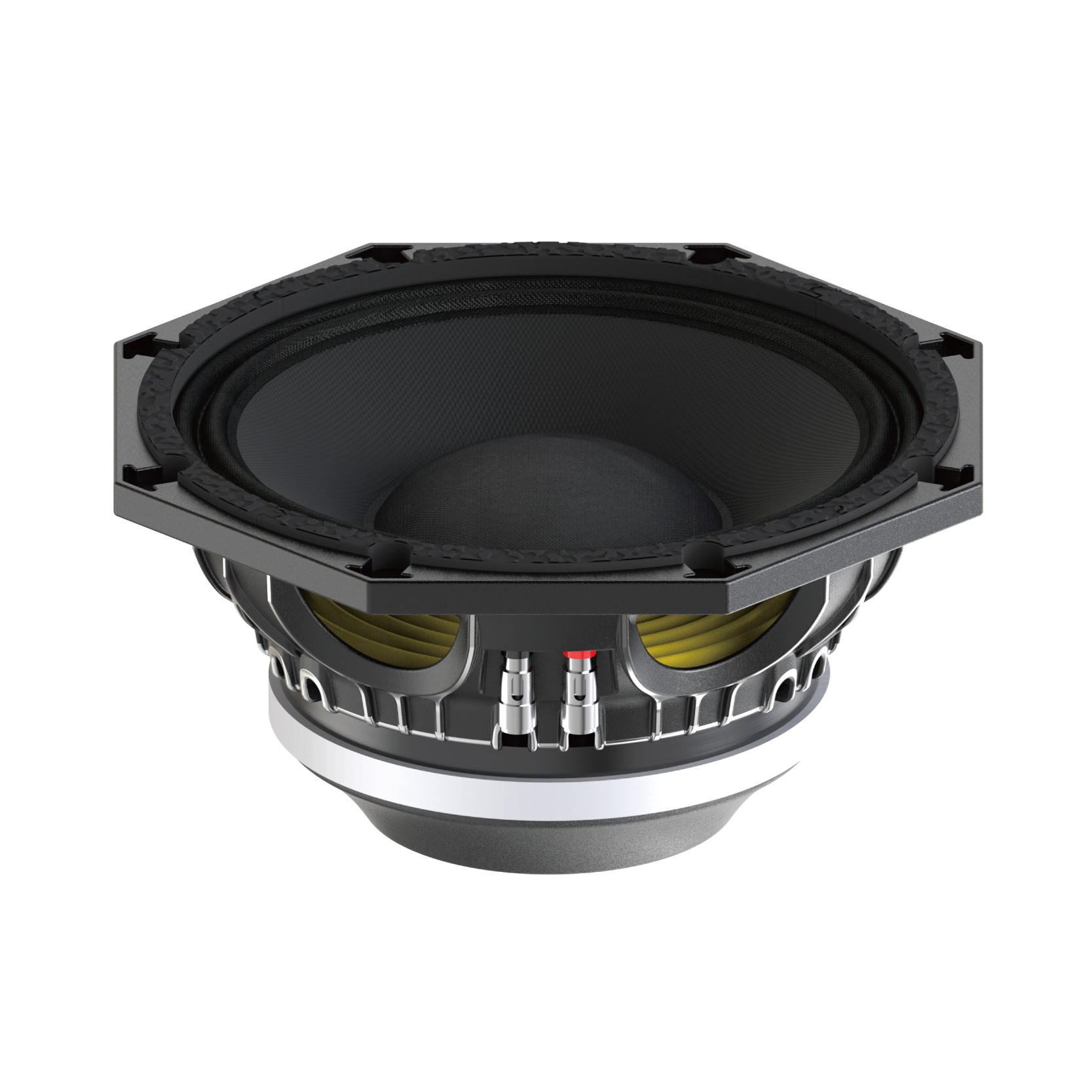

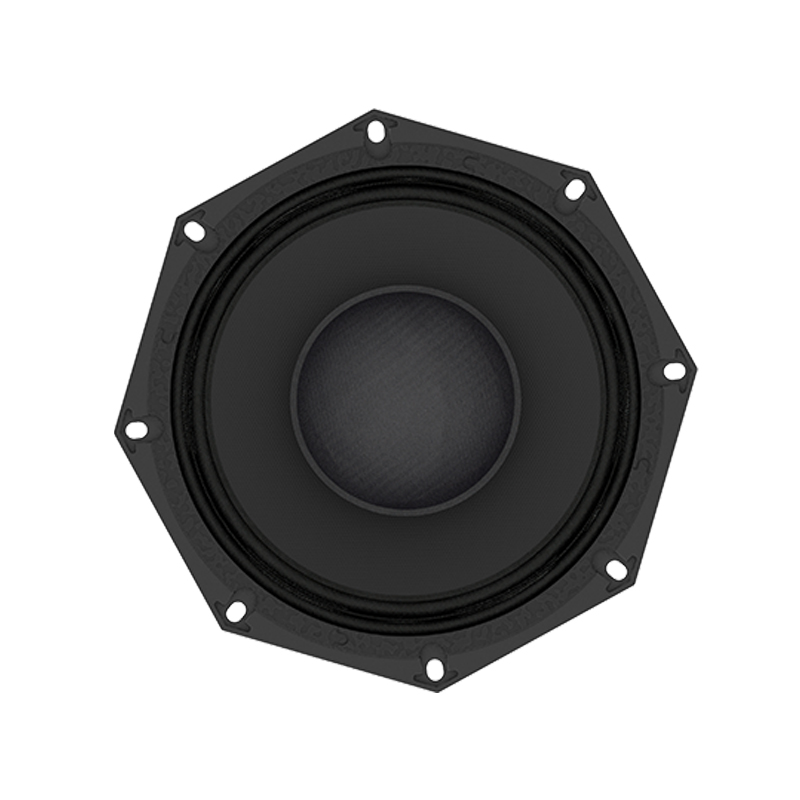

8''LF Loudspeakers
8MD300N
8''LF Loudspeakers
●300W RMS capacity
●75 mm(3 in) in-outside GPI voice coil
● 85-4500Hz response
● 97 dB sensitivity
● 8Ω nominal impedance
● Neodymium
| ELECTRO ACOUSTIC SPECIFICATIONS | ||
| Nominal Chassis Diameter | 8/205 in/mm | |
| MAX Power | 600 Watts | |
| RMS Power | 300 Watts | |

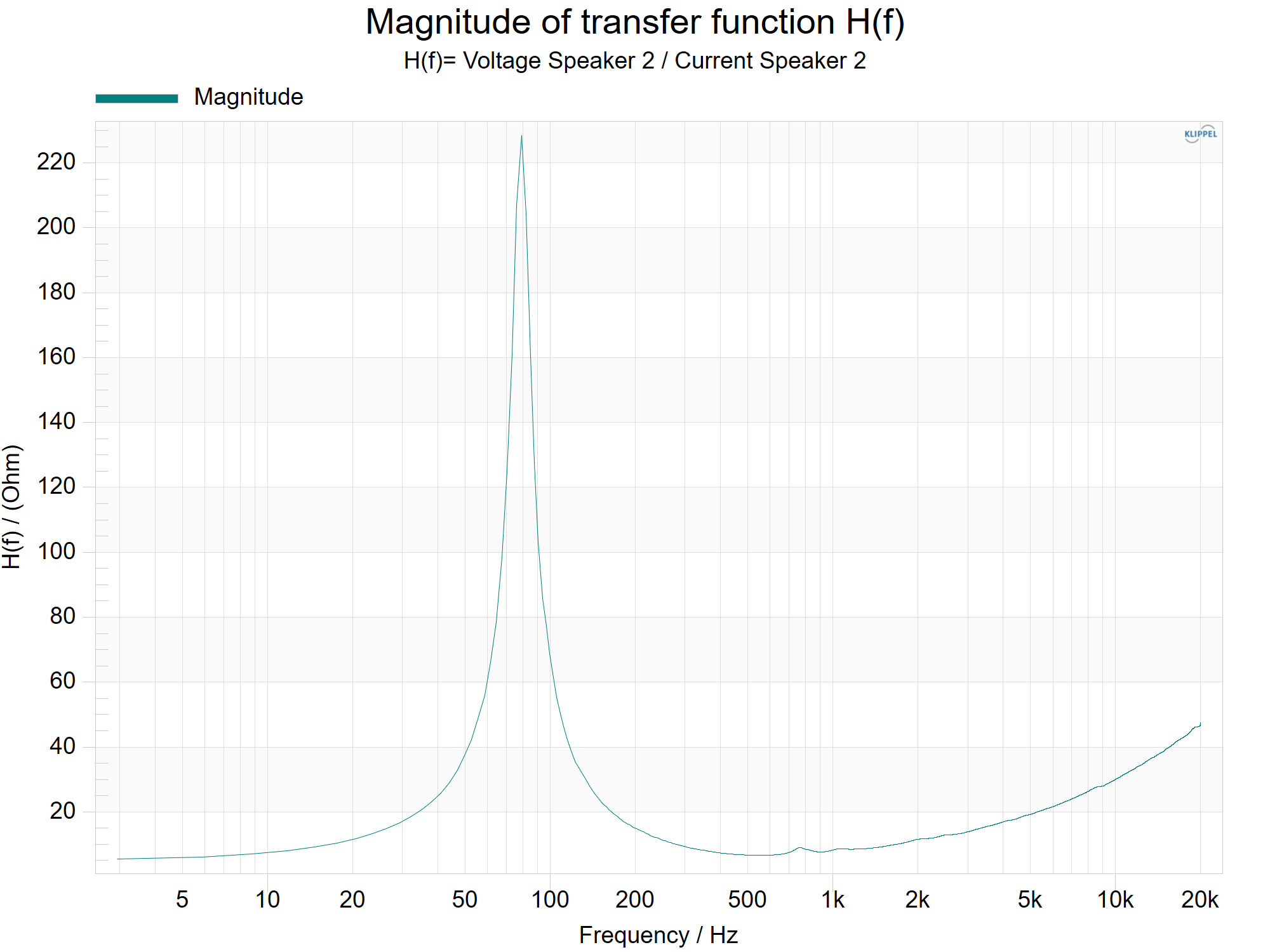

| Impedance | 8 Ohm | |
| Resonance(natural) Frequency | 85 Hz | |

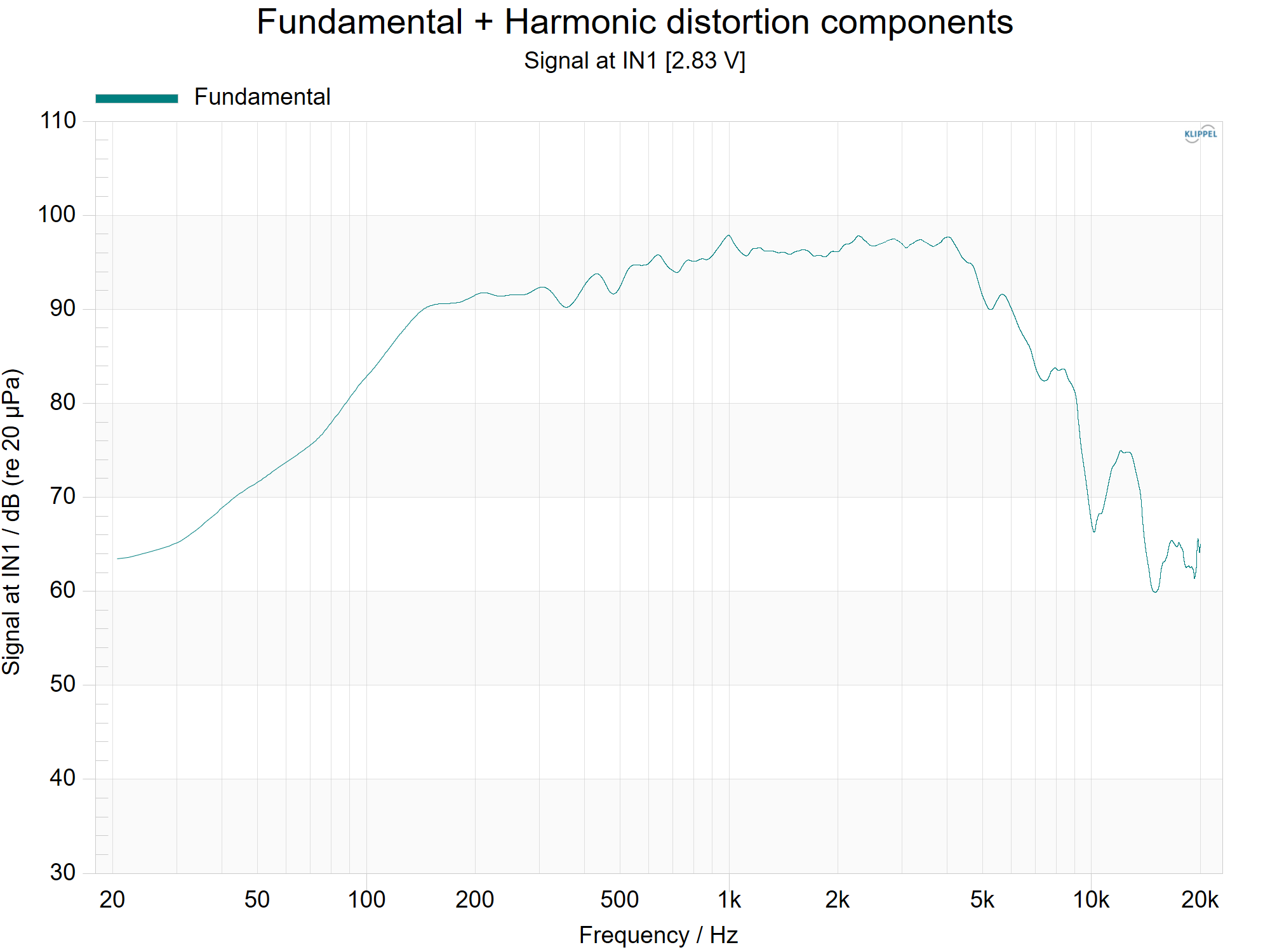

| Frequency Response | 85-4500 Hz | |
| Sensitivity(1W/1m) | 97 dB | |
| Voice Coil Diameter | 3/75 mm | |
| Winding material | PI(inside-outside) | |
| Former material | Glass Fiber | |
| Magnet | Neodymium | |
| MOUNTING/SHIPPING INFORMATION | |
| Overall Diameter | 8.9/226 in/mm |
| Bolt Circle Diameter | 8.2/208 in/mm |
| Baffle cutout Diameter | 7.1/181 in/mm |
| Depth | 4.1/104 in/mm |
| Net Weight | 3.3/7.28 kgs/lb |
| Shipping Weight | 3.6/7.94 kgs/lb |
| Shipping Box |
24x24x15 cm 9.45x9.45x5.91 in |
| THIELE SMALL PARAMETERS | |
| FS | 85 Hz |
| Vas | 9.1 dm³ |
| RE | 5.2 ohm |
| Qms | 7 |
| Qes | 0.16 |
| Qts | 0.15 |
| BL | 22.3 T/m |
| MMS | 30.4 grams |
| Xmax | 3.1 mm |
| Sd | 219 cm² |
| Efficiency | 2.7 % |
| EBP | 531 |
