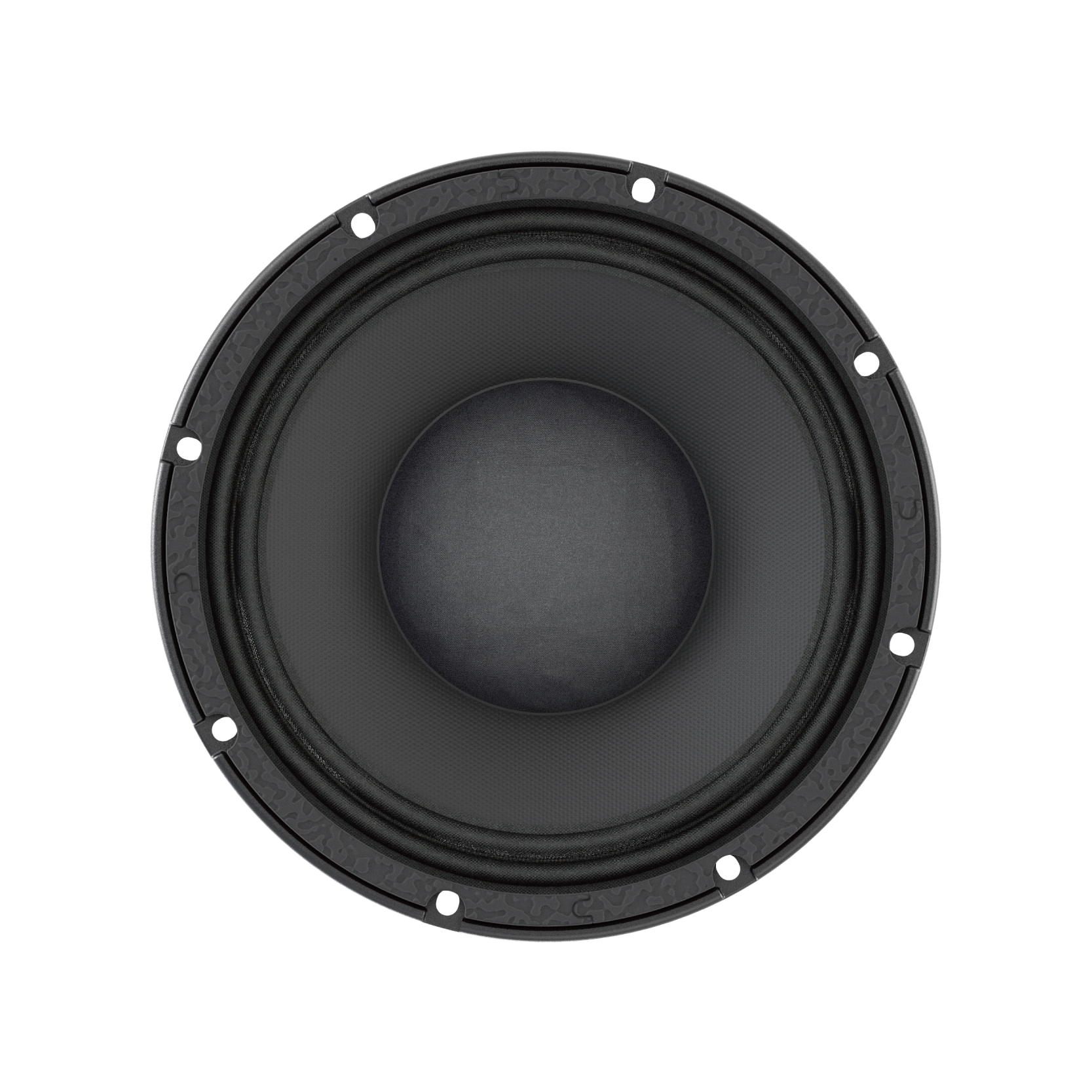

8''LF Loudspeakers
8MH200
8''LF Loudspeakers
●200W RMS capacity
●50 mm(2 in) inside-outside GSV voice coil

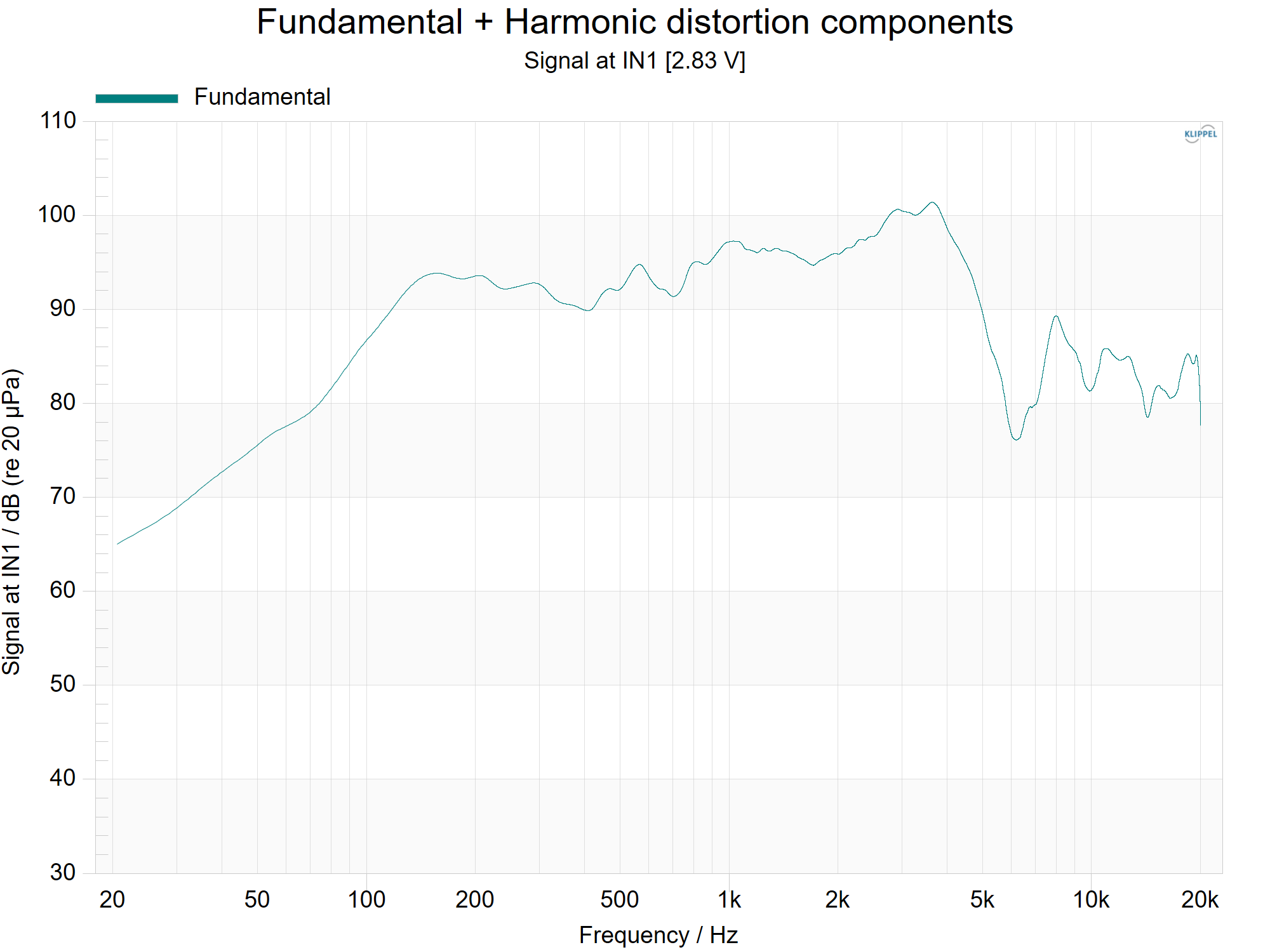

● 85-5000 Hz response
● 96 dB sensitivity
● 8Ω nominal impedance
● Magnet 57Oz
| ELECTRO ACOUSTIC SPECIFICATIONS | |
| Nominal Chassis Diameter | 8/205 in/mm |
| MAX Power | 400 Watts |
| RMS Power | 200 Watts |
| lmpedance | 8 Ohm |

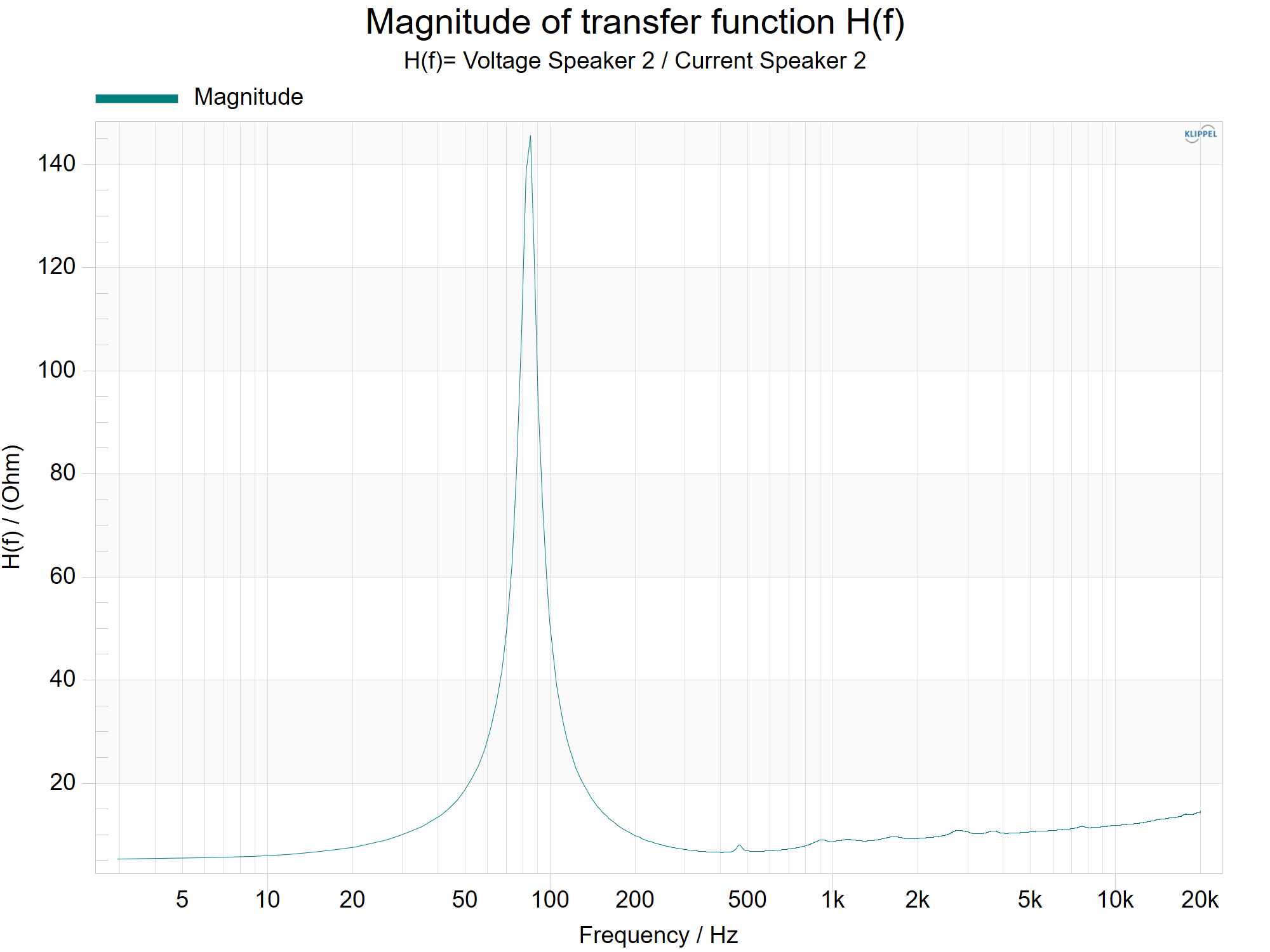

| Resonance(natural) Frequency | 85 Hz |
| Frequency Response | 85–5000 Hz |
| Sensitivity(1W/1m) | 96 dB |
| Voice Coil Diameter | 2/50 in/mm |
| Winding material | SV(inside-outside) |
| Former material | Glass Fiber |
| Magnet |
57 Oz 156*60*20mm |
| MOUNTING/SHIPPING INFORMATION | |
| Overall Diameter | 8.4/212 in/mm |
| Bolt Circle Diameter | 7.7/198 in/mm |
| Baffle cutout Diameter | 7.1/180 in/mm |
| Depth | 4.3/110 in/mm |
| Net Weight | 4/8.82 kgs/lb |
| Shipping Weight | 4.5/9.02 kgs/lb |
| Shipping Box |
23.5X23.5X13.5 cm 9.25x9.25x5.32 in |
| THIELE SMALL PARAMETERS | |
| FS | 85 Hz |
| Vas | 9.5 dm³ |
| RE | 5.2 ohm |
| Qms | 13.2 |
| Qes | 0.29 |
| Qts | 0.28 |
| BL | 14.8 T/m |
| MMS | 23.64 grams |
| Xmax | 2.5 mm |
| Sd | 213.8 cm² |
| Efficiency | 1.92% |
| EBP | 293 |
