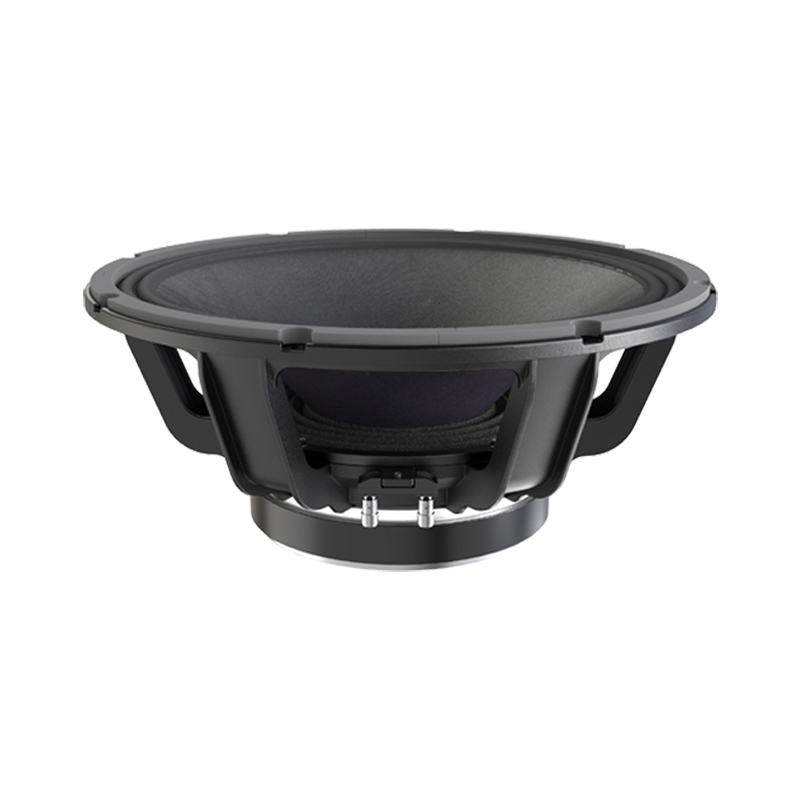

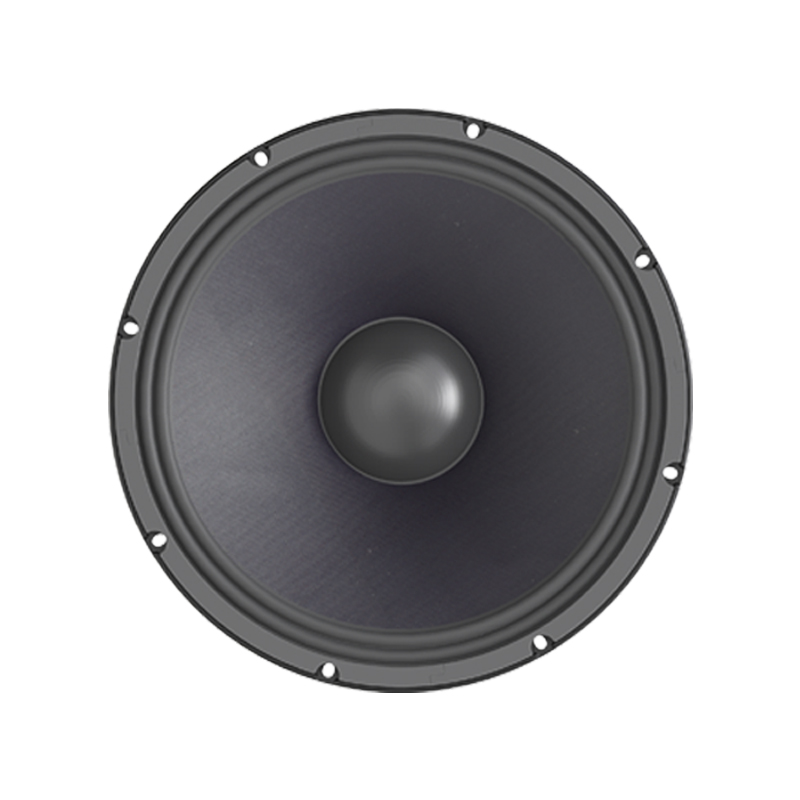

15''LF Loudspeakers
TN-15LF75
15''LF Loudspeakers
●500W RMS capacity
●75mm(3 in) in-outside PI voice coil
● 54-3500Hz response
● 98 dB sensitivity
● 8Ω nominal impedance
● Magnet 113Oz
| ELECTRO ACOUSTIC SPECIFICATIONS | |
| Nomina| Chassis Diameter | 15/385 in/mm |
| MAX Power | 1000 Watts |
| RMS Power | 500 Watts |
| lmpedance | 8 Ohm |
| Resonance(natura|) Frequency | 54 Hz |
| Frequency Response | 54–3500 Hz |
| Sensitivity(1W/1m) | 98 dB |
| Voice Coi| Diameter | 3"/75mm |
| Wind|ing materia| | Pl(inside–outside) |
| Magnet | 113 Oz |
| 200X86X25mm | |
| mounting/shipping information | |
| Overa|| Diameter | 15.5/393 in/mm |
| Bo|t Circ|e Diameter | 14/357 in/mm |
| Baffle cutout Diameter | 13.9/353 in/mm |
| Depth | 6.9/175 in/mm |
| Net Weight | 9.2 kgs |
| Shipping Weight | 9.7 kgs |
| Shipping Box | 40.5X40.5X20.5cm |
| thiele small parameters | |
| FS Hz | 54 Hz |
| Vas | 89 dm³ |
| RE Ohms | 5.4 ohm |
| Qms | 11 |
| Qes | 0. 6 |
| Qts | 0.58 |
| BLT/m | 18 T/m |
| MMS(grms) | 102 grams |
| Xmax(mm) | 5.1 mm |
| Sd(cm²) | 800 cm² |
| Efficiency % | 2.30% |
| EBP | 90 |
