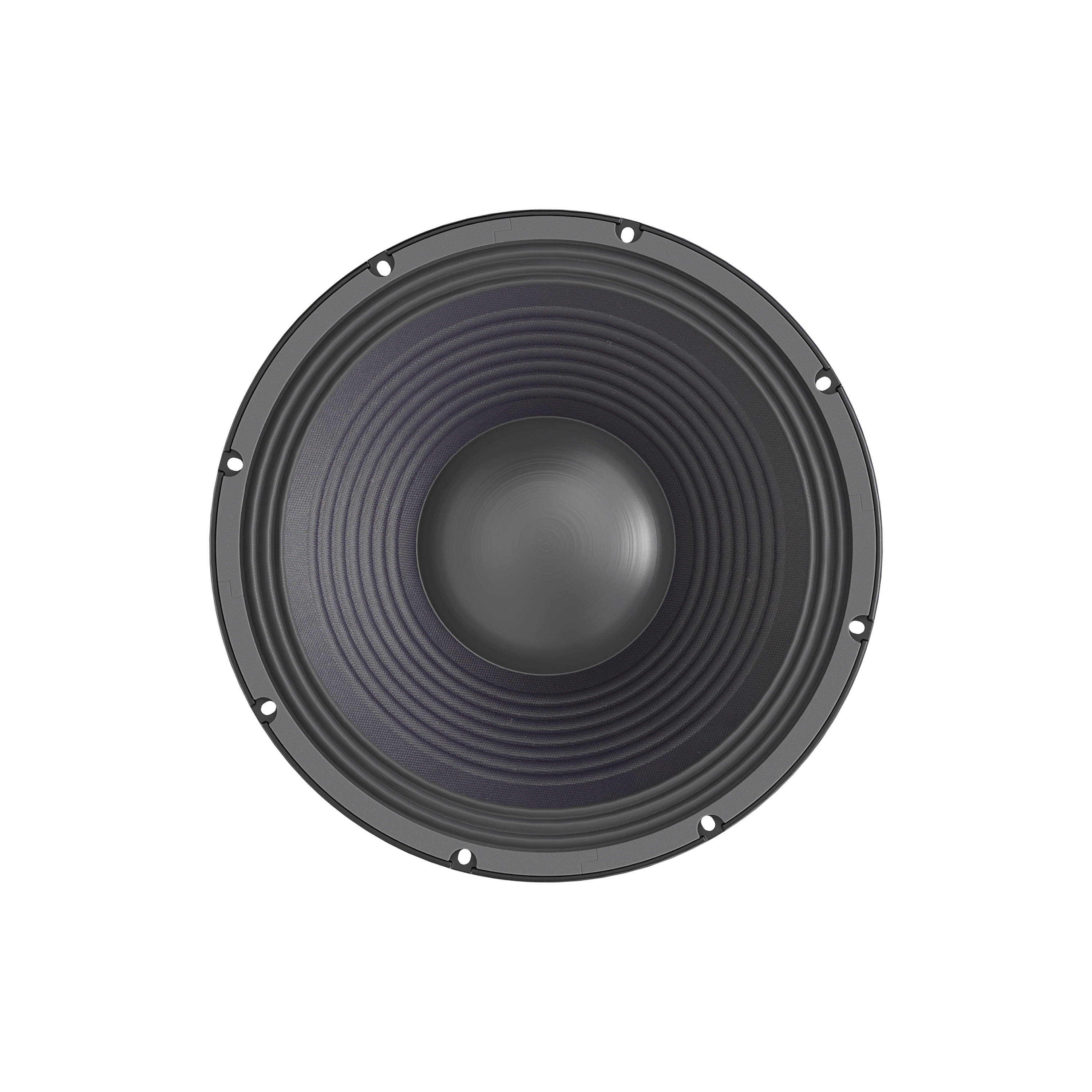

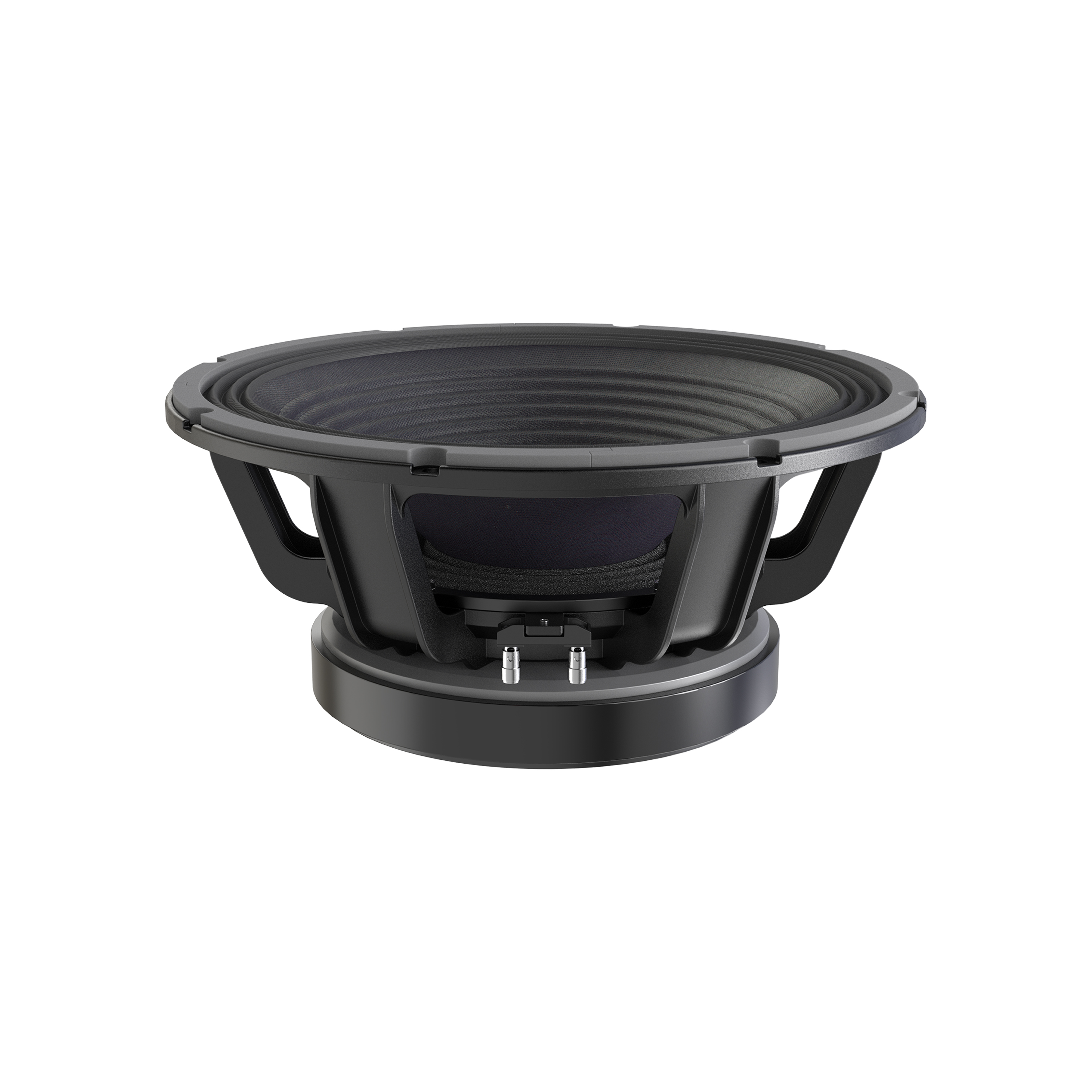

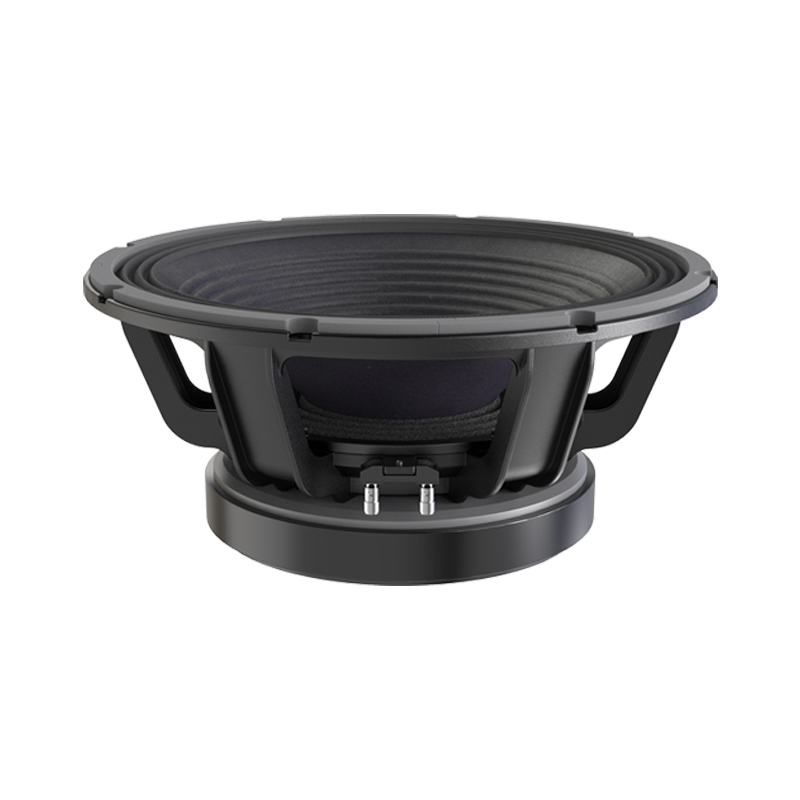

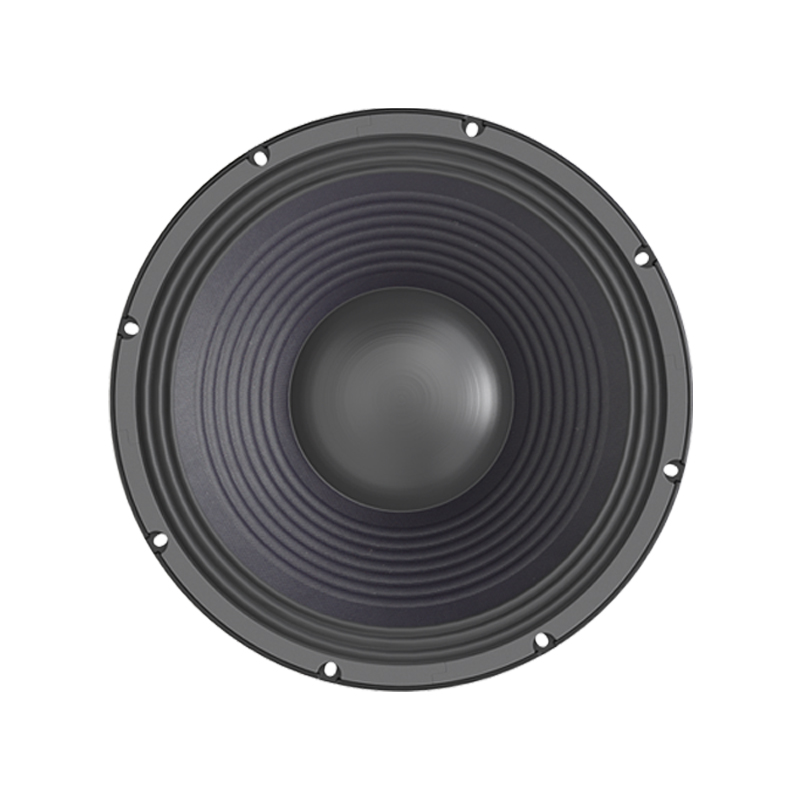

15''LF Loudspeakers
TN-15LF451
15''LF Loudspeakers
●1500W RMS capacity
●114mm(4.5 in) in-outside PI voice coil
● 45-1200Hz response
● 97 dB sensitivity
● 8Ω nominal impedance
● Magnet 200Oz
| ELECTRO ACOUSTIC SPECIFICATIONS | |
| Nomina| Chassis Diameter | 15/385 in/mm |
| MAX Power | 3000 Watts |
| RMS Power | 1500 Watts |
| lmpedance | 8 Ohm |
| Resonance(natura|) Frequency | 45 Hz |
| Frequency Response | 45–1200 Hz |
| Sensitivity(1W/1m) | 97 dB |
| Voice Coi| Diameter | 4.5"/114mm |
| Wind|ing materia| | Pl(inside–outside) |
| Magnet | 201Oz 254X127X30mm |
| mounting/shipping information | |
| Overa|| Diameter | 15.5/393 in/mm |
| Bo|t Circ|e Diameter | 14/357 in/mm |
| Baffle cutout Diameter | 13.9/353 in/mm |
| Depth | 7.9/200 in/mm |
| Net Weight | 18 kgs |
| Shipping Weight | 19 kgs |
| Shipping Box | 40.5X40.5X23cm |
| thiele small parameters | |
| FS Hz | 45 Hz |
| Vas | 45 dm³ |
| RE Ohms | 5.2 ohm |
| Qms | 15.7 |
| Qes | 0.4 |
| Qts | 0.39 |
| BLT/m | 31 T/m |
| MMS(grms) | 250 grams |
| Xmax(mm) | 15 mm |
| Sd(cm²) | 829 cm² |
| Efficiency % | 2.50% |
| EBP | 112 |
