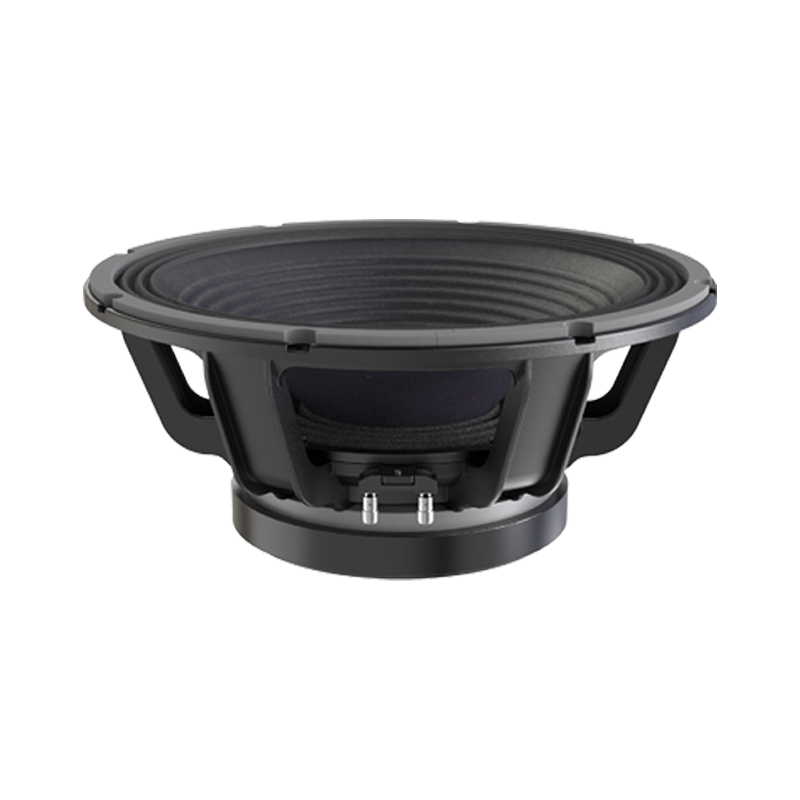

15''LF Loudspeakers
TN-15LF400
15''LF Loudspeakers
●1000W RMS capacity
●100mm(4 in) in-outside PI voice coil
● 45-1500Hz response
● 97 dB sensitivity
● 8Ω nominal impedance
● Magnet 150Oz
| ELECTRO ACOUSTIC SPECIFICATIONS | |
| Nominal Chassis Diameter | 15/385 in/mm |
| MAX Power | 2000 Watts |
| RMS Power | 1000 Watts |
| Impedance | 8 Ohm |
| Resonance(natural) Frequency | 45 Hz |
| Frequency Response | 45-1500 Hz |
| Sensitivity(1W/1m) | 97 dB |
| Voice Coil Diameter | 4"/100mm |
| Windling material | PI(inside-outside) |
| Magnet | 150Oz 220X110X30mm |
| MOUNTING/SHIPPING INFORMATION | ||
| Overall Diameter | 15.5/393 in/mm |
|
| Bolt Circle Diameter | 14/357 in/mm |
|
| Baffle cutout Diameter | 13.9/353 in/mm |
|
| Depth | 7.7/195 in/mm |
|
| Net Weight | 12.5 kgs | |
| Shipping Weight | 13.5 kgs | |
| Shipping Box | 42X42X22cm | |
| THIELE SMALL PARAMETERS | |
| FS Hz | 45 Hz |
| Vas | 85 dm³ |
| RE Ohms | 5.6 ohm |
| Qms | 10.9 |
| Qes | 0.42 |
| Qts | 0.41 |
| BLT/m | 25 T/m |
| MMS(grms) | 162 grams |
| Xmax(mm) | 9.9 mm |
| Sd | 844 cm |
| Efficiency % | 2.50% |
| EBP | 107 |
