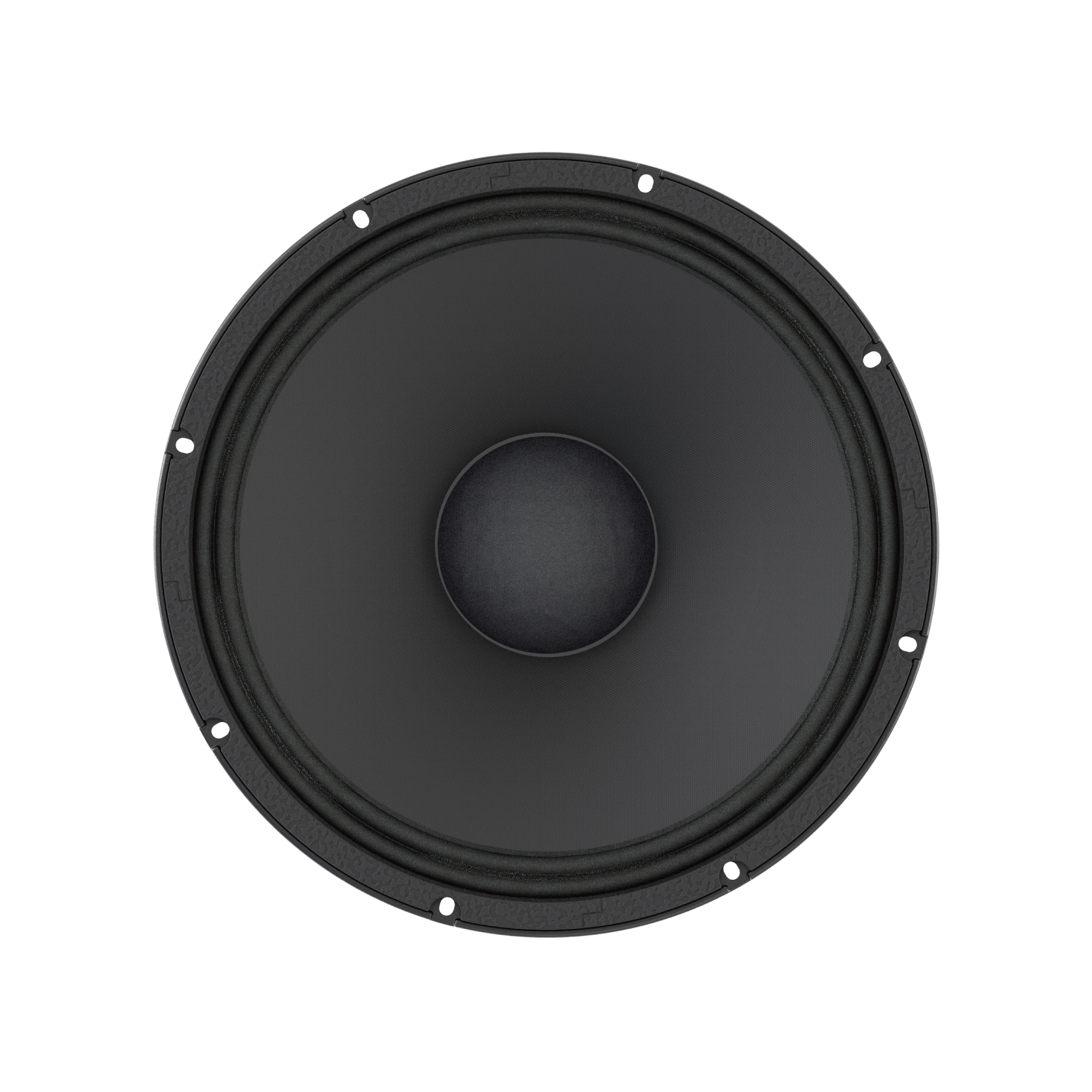

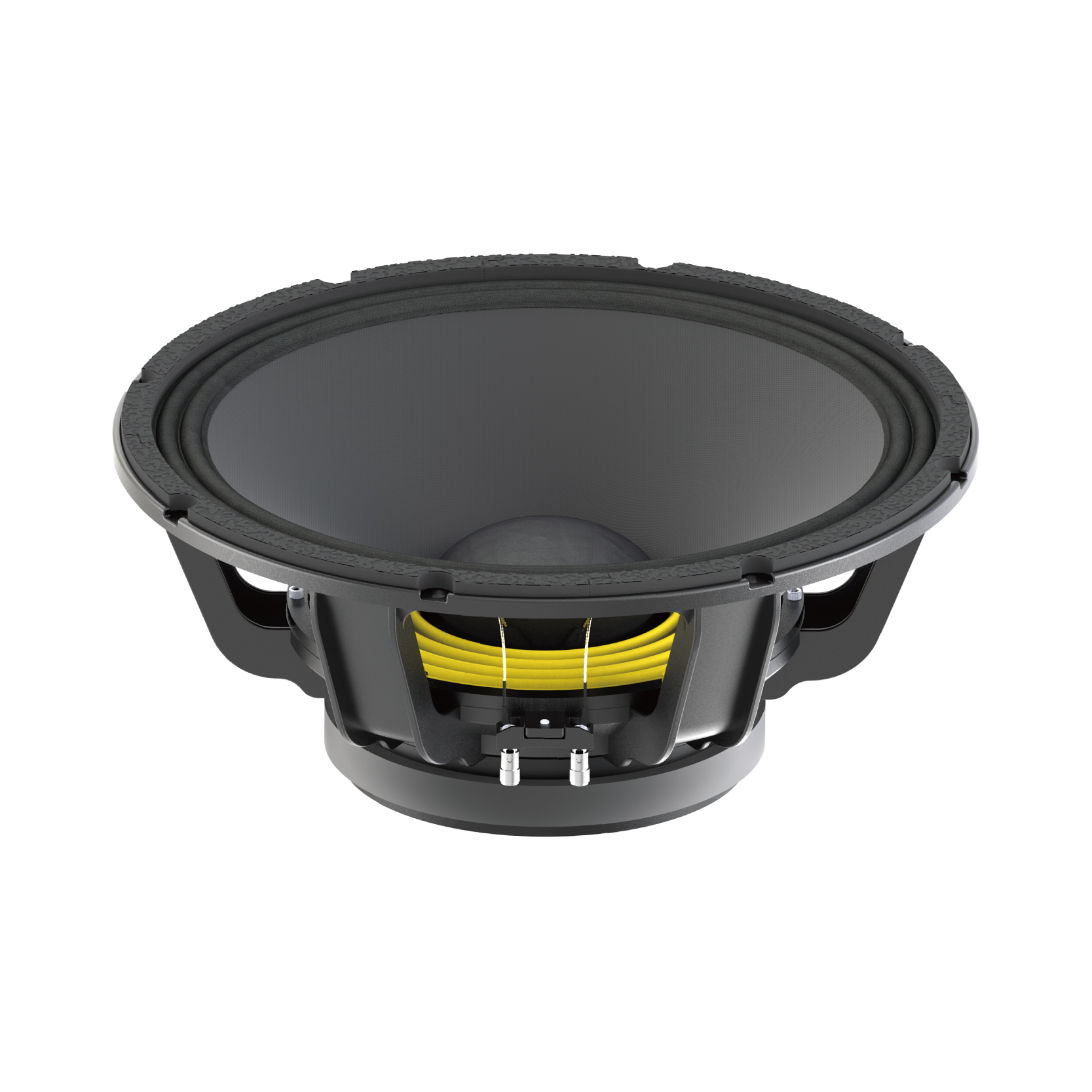

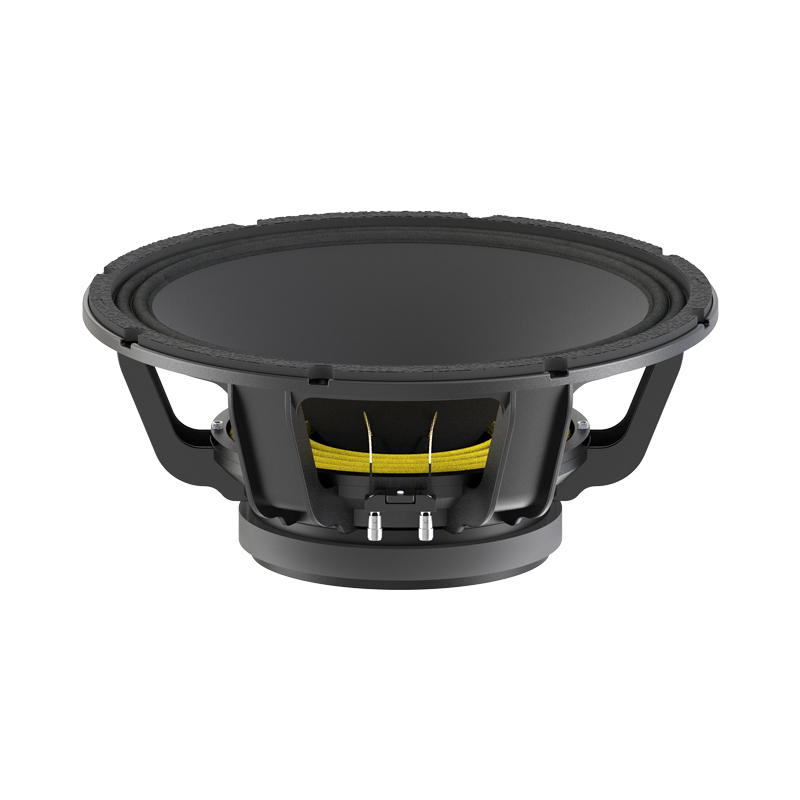

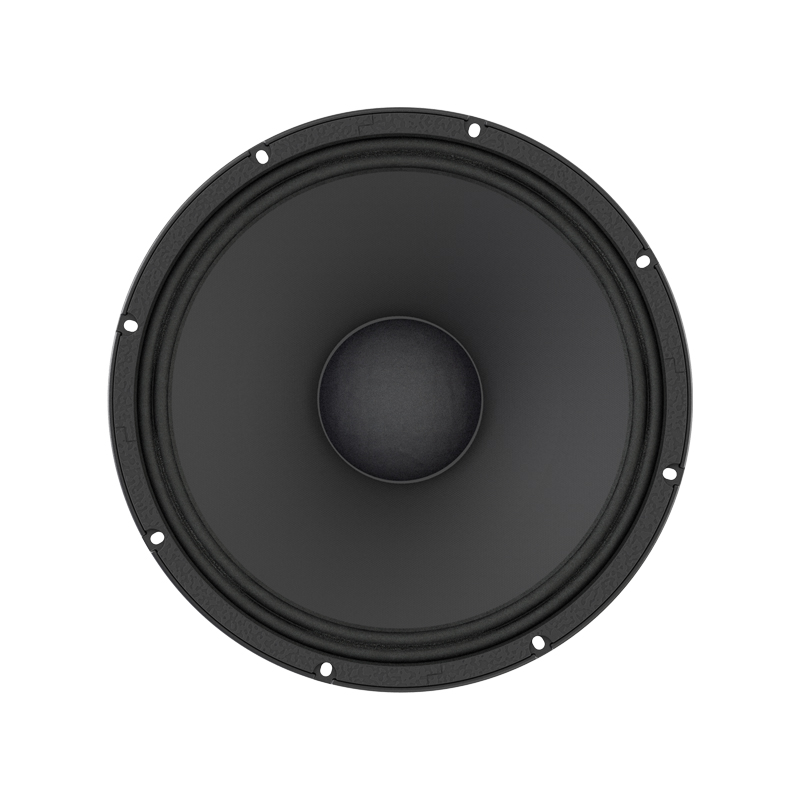

15''LF Loudspeakers
15MH300
15''LF Loudspeakers
●500W RMS capacity
●75 mm(3 in) inside-outside GPI voice coil
● 56-4500Hz response
● 99 dB sensitivity
● 8Ω nominal impedance
● Magnet 90Oz
| ELECTRO ACOUSTIC SPECIFICATIONS | |
| Nominal Chassis Diameter | 15/385 in/mm |
| MAX Power | 1000 Watts |
| RMS Power | 500 Watts |
| lmpedance | 8 Ohm |
| Resonance(natural) Frequency | 56 Hz |

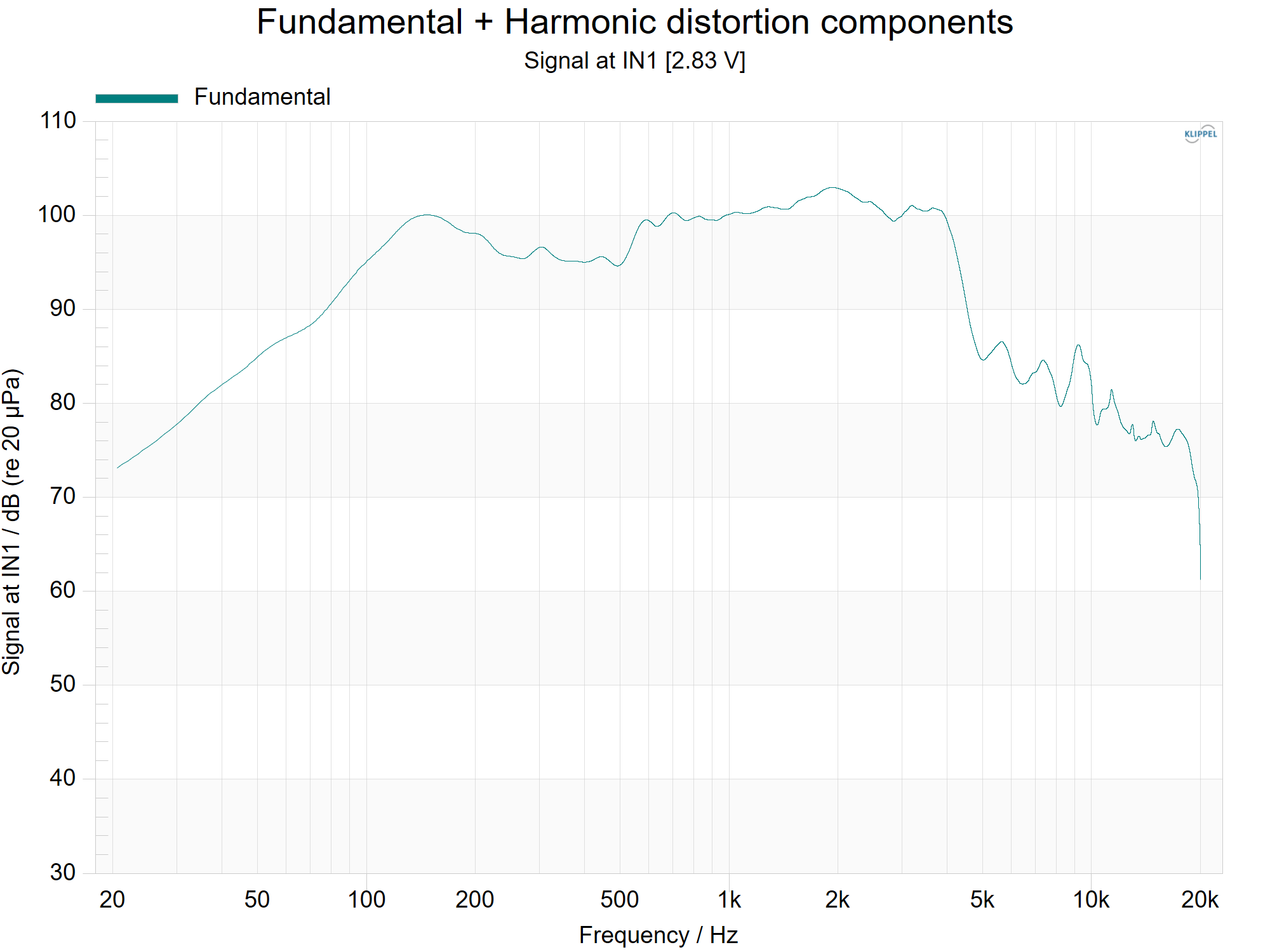

| Frequency Response | 56 Hz–4500 Hz |
| Sensitivity(1W/1m) | 99 dB |
| Voice Coil Diameter | 3/75 in/mm |
| Winding material | PI(inside-outside) |
| Former material | Glass Fiber |
| Magnet |
90 Oz 200*86*20 mm |
| MOUNTING/SHIPPING INFORMATION | |
| Overall Diameter | 15.5/393 in/mm |
| Bolt Circle Diameter | 14.8/375 in/mm |
| Baffle cutout Diameter | 13.9/353 in/mm |
| Depth | 6.9/173 in/mm |
| Net Weight | 9.15/20.17 kgs/lb |
| Shipping Weight | 9.65/21.27 kgs/lb |
| Shipping Box |
40.5X40.5X20.5 cm 15.94x15.94x8.07 in |
| THIELE SMALL PARAMETERS | |
| FS | 56 Hz |
| Vas | 99 dm³ |
| RE | 5 ohm |
| Qms | 6.74 |
| Qes | 0.37 |
| Qts | 0.35 |
| BL | 20 T/m |
| MMS | 85.9 grams |
| Xmax | 4.1 mm |
| Sd | 881.4 cm² |
| Efficiency | 4.59 % |
| EBP | 151 |
