English
15" LF Loudspeakers
15RF100
15" LF Loudspeakers
●600W RMS capacity
●100mm(4 in) in-outside GSV voice coil
● 45-4000Hz response
● 99 dB sensitivity
● 8Ω nominal impedance
| Nominal Diameter | 15/385 in/mm |
| MAX Power | 1200 Watts |
| RMS Power | 600 Watts |

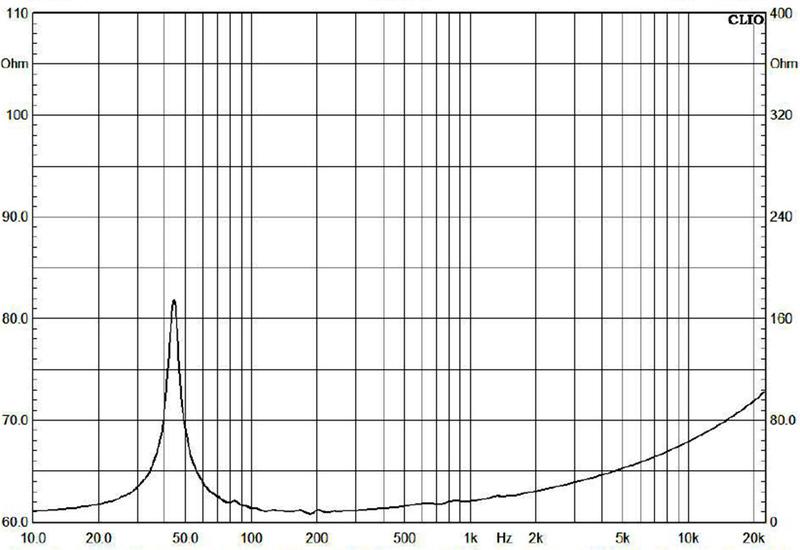

| Impedance | 8 Ohm |
| Resonance Frequency | 45 Hz |

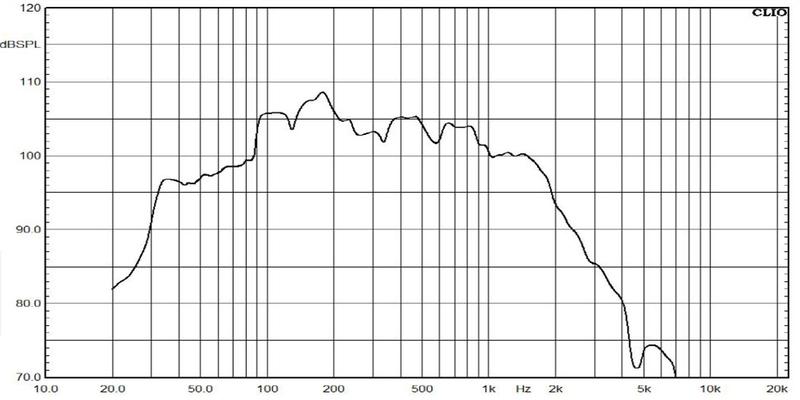

| Frequency Response | 45-4000 Hz |
| Sensitivity(1W/1m) | 99 dB |
| Voice Coil Diameter | 4.0/100 in/mm |
| Voice Coil Material | GSV(inside-outside) |
| Magnet | 125 Oz |
| Overall Diameter | 15.4/395 in/mm |
| Bolt Circle Diameter | 13.2/340 in/mm |
| Baffle cutout Diameter | 10.7 /275 in/mm |
| Depth | 4.7 /121 in/mm |
| Net Weight | 12.6kgs |
| Shipping Weight | 13.6 kgs |
| Shipping Box | 42X42X16.5cm |
| FS Hz | 45 Hz |
| RE Ohms | 5.1 ohm |
| Qms | 9.2 |
| Qes | 0.27 |
| Qts | 0.26 |
| BL T/m | 24 T/m |
| MMS(grams) | 116 grams |
| Xmax(mm) | 9.5 mm |
| Sd(cm²) | 897 cm² |
| Efficiency % | 3.7% |
| Le(1k Hz) | 1.7 mH |
| EBP | 162 Hz |
