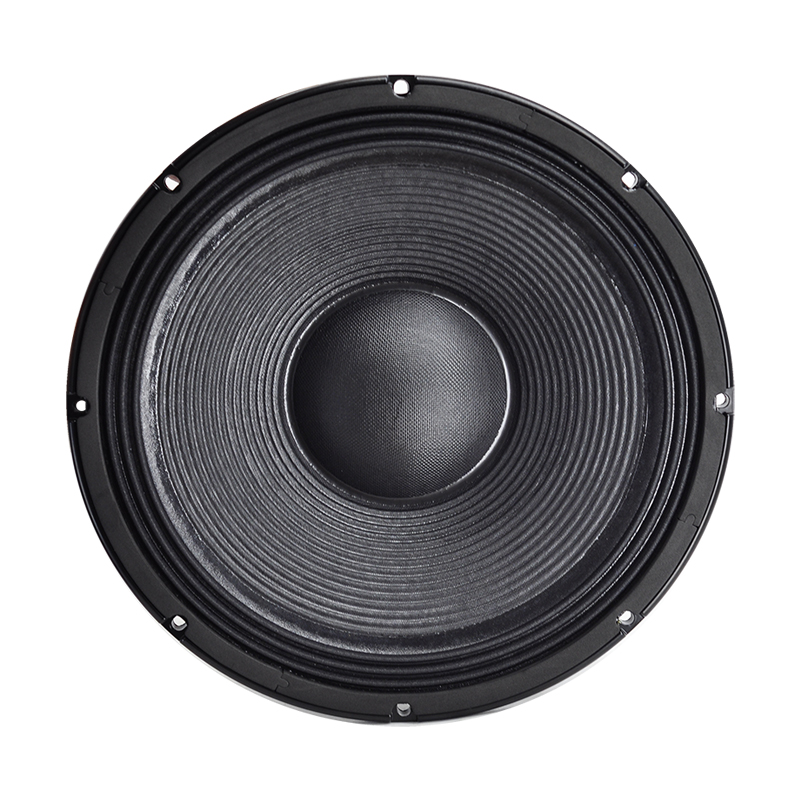

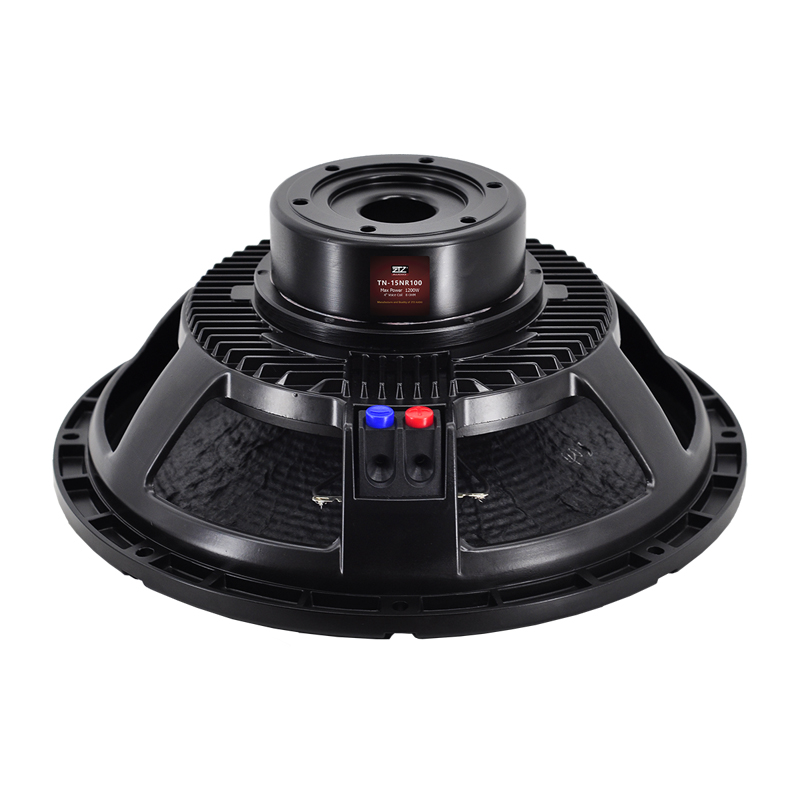

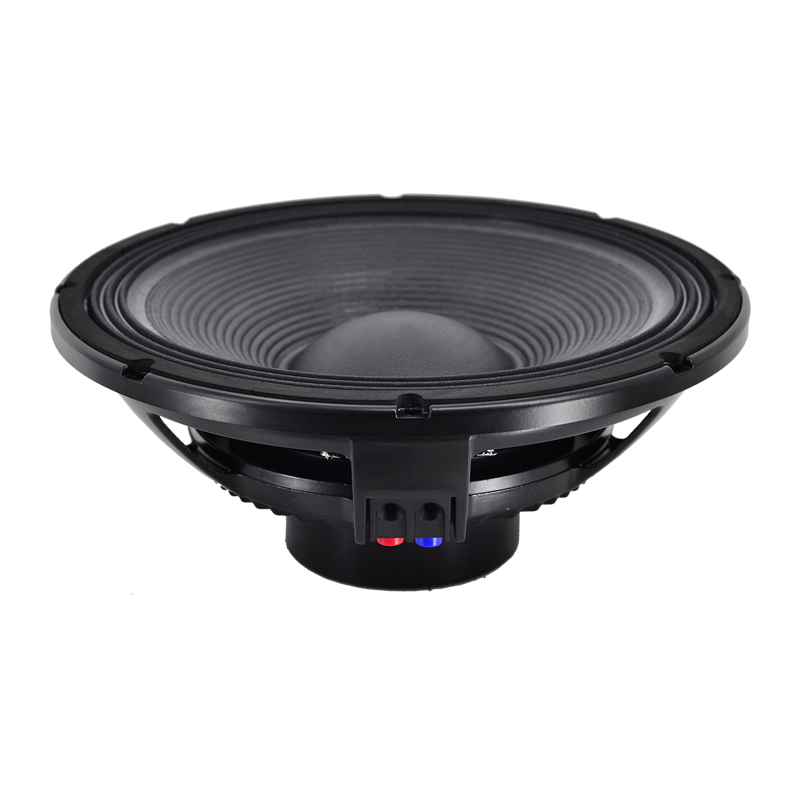

15" LF Loudspeakers
15NR100
15" LF Loudspeakers
●600W RMS capacity
●100mm(4 in) in-outside GSV voice coil
● 35-2000Hz response
● 97 dB sensitivity
● 8Ω nominal impedance
| Nominal Diameter | 15/395 in/mm |
| MAX Power | 1200 Watts |
| RMS Power | 600 Watts |

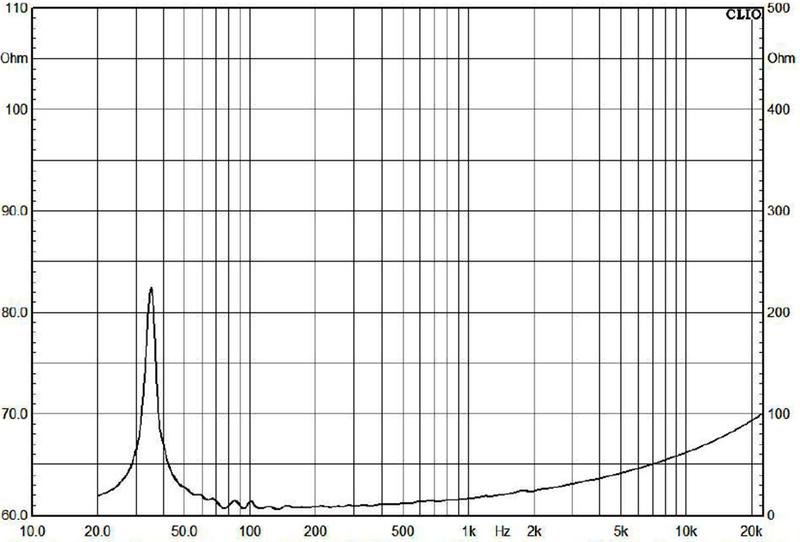

| Impedance | 8 Ohm |
| Resonance Frequency | 35 Hz |

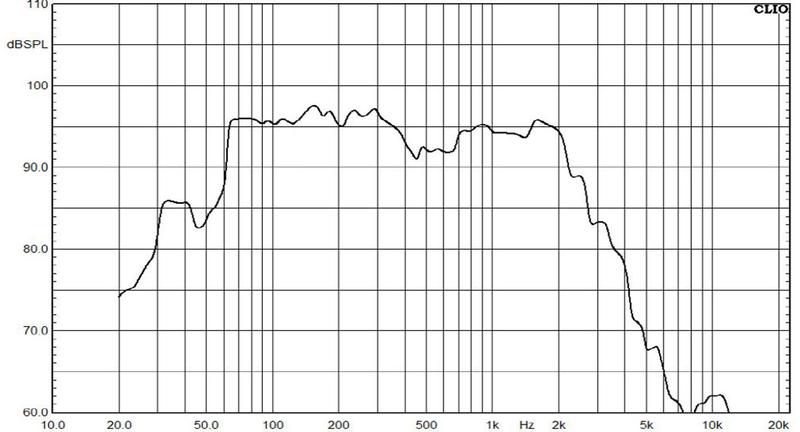

| Frequency Response | 35-2000 Hz |
| Sensitivity(1W/1m) | 97 dB |
| Voice Coil Diameter | 4.0/100 in/mm |
| Voice Coil Material | GSV(inside-outside) |
| Magnet | 125 Oz |
| Overall Diameter | 15.5 /395 in/mm |
| Bolt Circle Diameter | 14.8/376 in/mm |
| Baffle cutout Diameter | 14.1 /359 in/mm |
| Depth | 6.7 /170 in/mm |
| Net Weight | 7.8kgs |
| Shipping Weight | 8.8 kgs |
| Shipping Box | 42X42X21cm |
| FS Hz | 35 Hz |
| RE Ohms | 5.4ohm |
| Qms | 12 |
| Qes | 0.3 |
| Qts | 0.29 |
| BL T/m | 22 T/m |
| MMS(grams) | 123 grams |
| Xmax(mm) | 10 mm |
| Sd(cm²) | 855 cm² |
| Efficiency % | 2.3% |
| Le(1k Hz) | 1.8 mH |
| EBP | 116 Hz |
