12''LF Loudspeakers

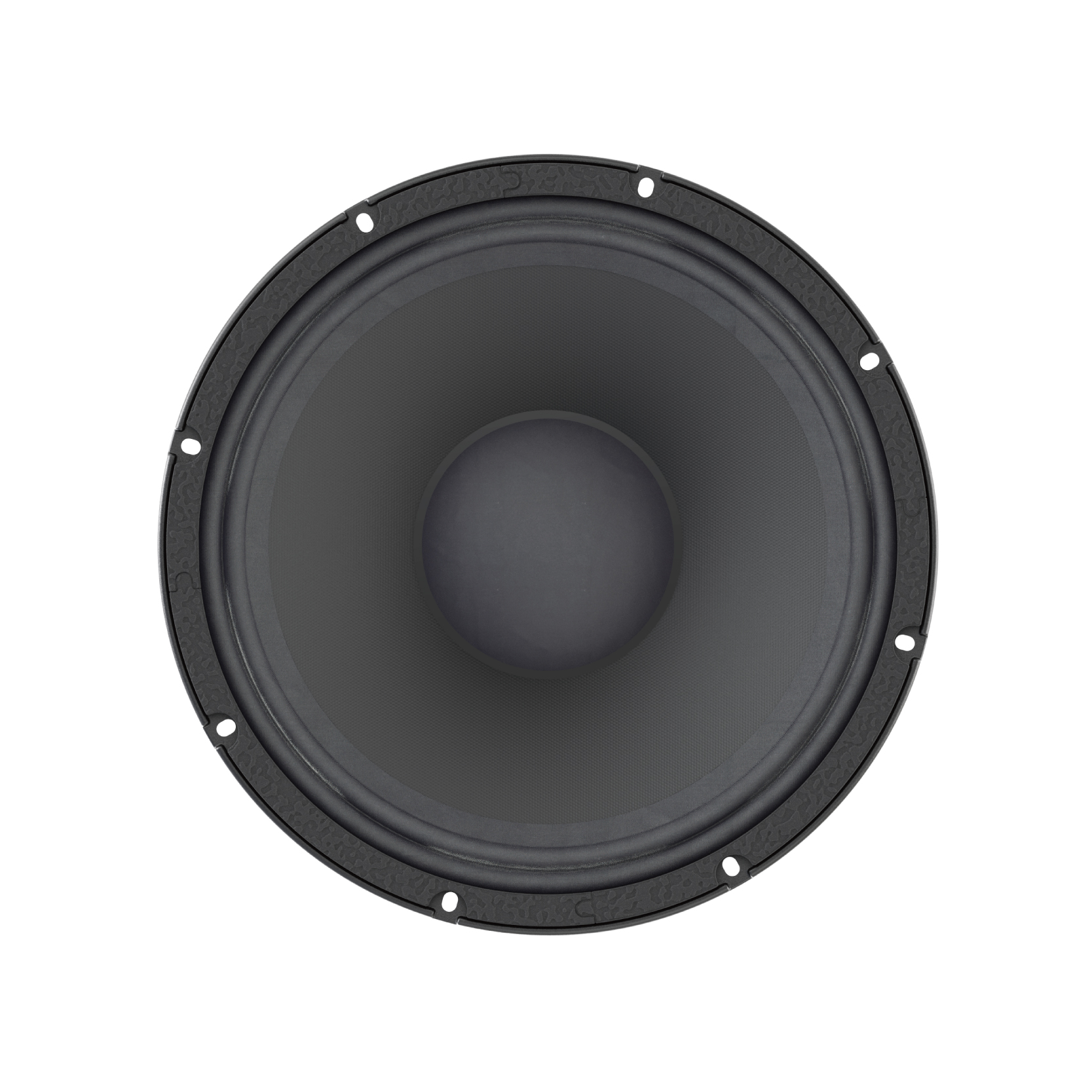

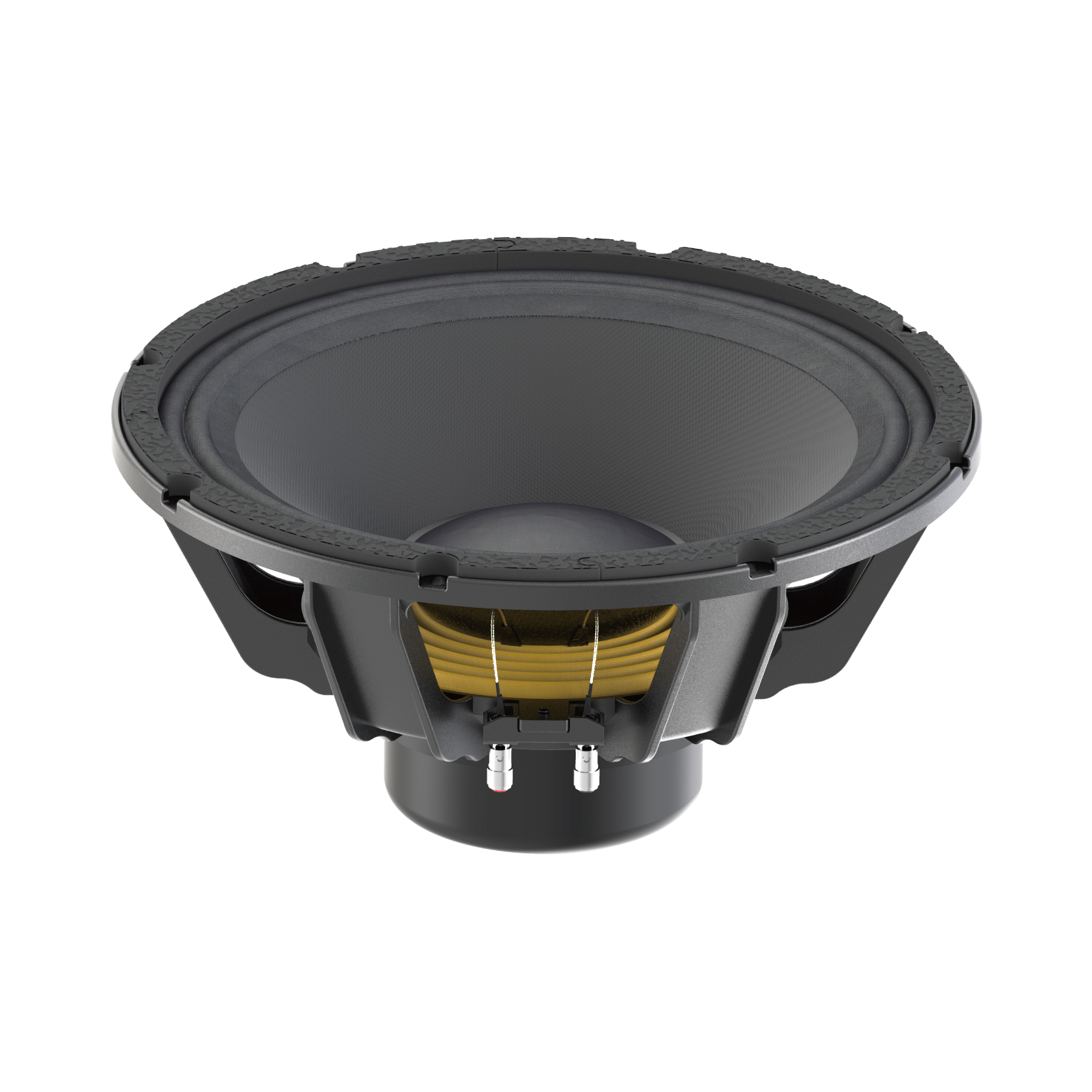

12LW350N
12''LF Loudspeakers
●800W RMS capacity
●89 mm(3.5 in) inside-outside ALR voice coil
● 83-3500Hz response
● 97 dB sensitivity
● 8Ω nominal impedance
● Neodymium
| ELECTRO ACOUSTIC SPECIFICATIONS | |
| Nominal Chassis Diameter | 12/305 in/mm |
| MAX Power | 1600 Watts |
| RMS Power | 800 Watts |
| lmpedance | 8 Ohm |
| Resonance(natural) Frequency | 83 Hz |

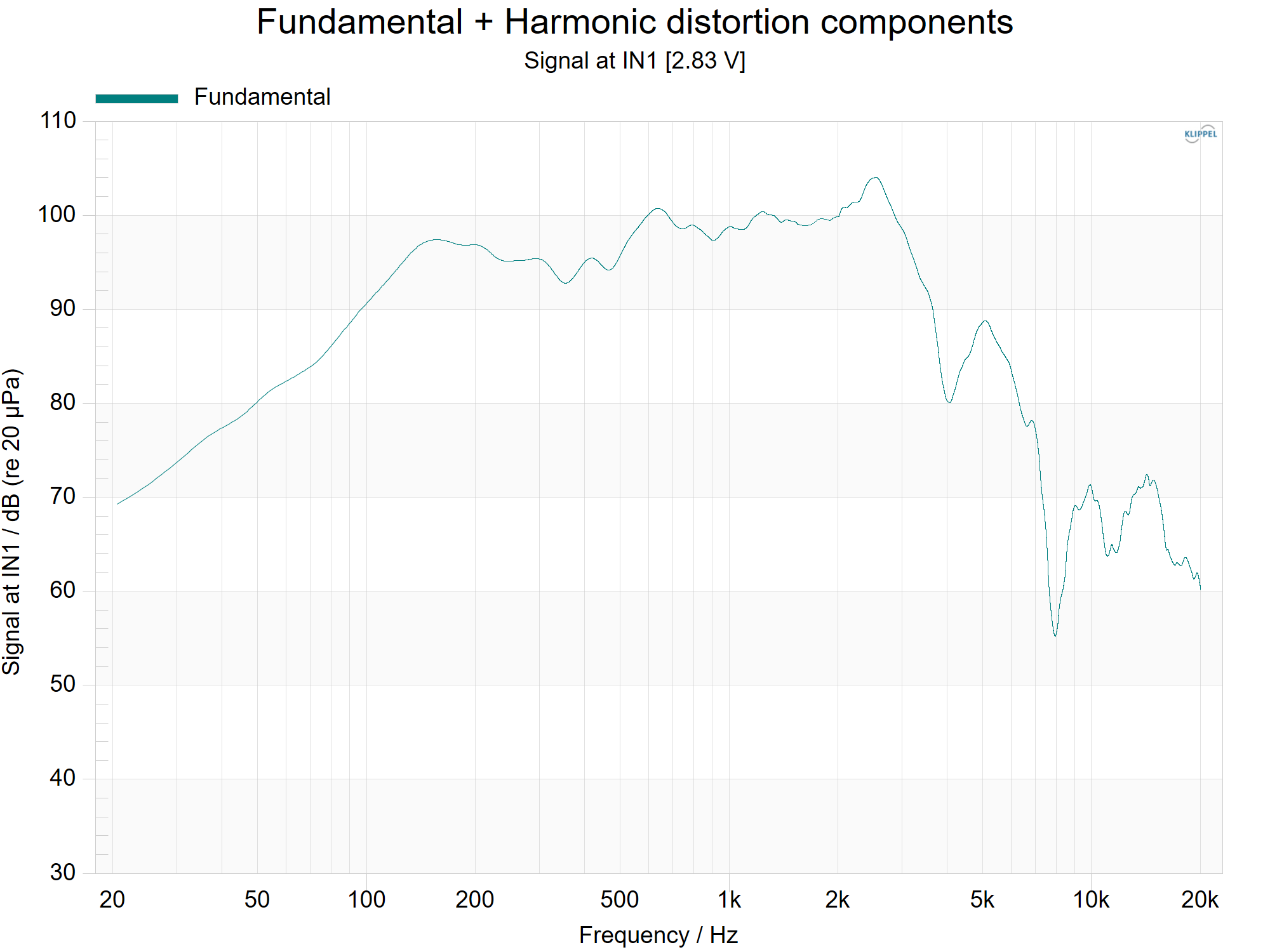

| Frequency Response | 83 Hz–3500 Hz |
| Sensitivity(1W/1m) | 97 dB |
| Voice Coil Diameter | 3.5/89 in/mm |
| Winding material | ALR(inside-outside) |
| Former material | Glass Fiber |
| Magnet |
Neodymium |
| MOUNTING/SHIPPING INFORMATION | |
| Overall Diameter | 12.5/317 in/mm |
| Bolt Circle Diameter | 11.8/300 in/mm |
| Baffle cutout Diameter | 11.2/285 in/mm |
| Depth | 6.2/156 in/mm |
| Net Weight | 4.5/9.92 kgs/lb |
| Shipping Weight | 5/11.02 kgs/lb |
| Shipping Box |
33.5x33.5x17 cm 13.19x13.19x6.69 in |
| THIELE SMALL PARAMETERS | |
| FS | 83 Hz |
| Vas | 21.02 dm³ |
| RE | 4.8 ohm |
| Qms | 7.27 |
| Qes | 0.344 |
| Qts | 0.329 |
| BL | 22.59 T/m |
| MMS | 68.734 grams |
| Xmax | 4.1 mm |
| Sd | 530.93 cm² |
| Efficiency | 3.435 % |
| EBP | 241 |
