10''LF Loudspeakers
10MD300N
10''LF Loudspeakers
●400W RMS capacity
●75.5mm(3 in) in-outside PI voice coil
● 74-4000Hz response
● 98 dB sensitivity
● 8Ω nominal impedance
● Neodymium
| ELECTRO ACOUSTIC SPECIFICATIONS | ||
| Nominal Chassis Diameter | 10/254 in/mm | |
| MAX Power | 800 Watts | |
| RMS Power | 400 Watts | |
| Impedance | 8 Ohm | |

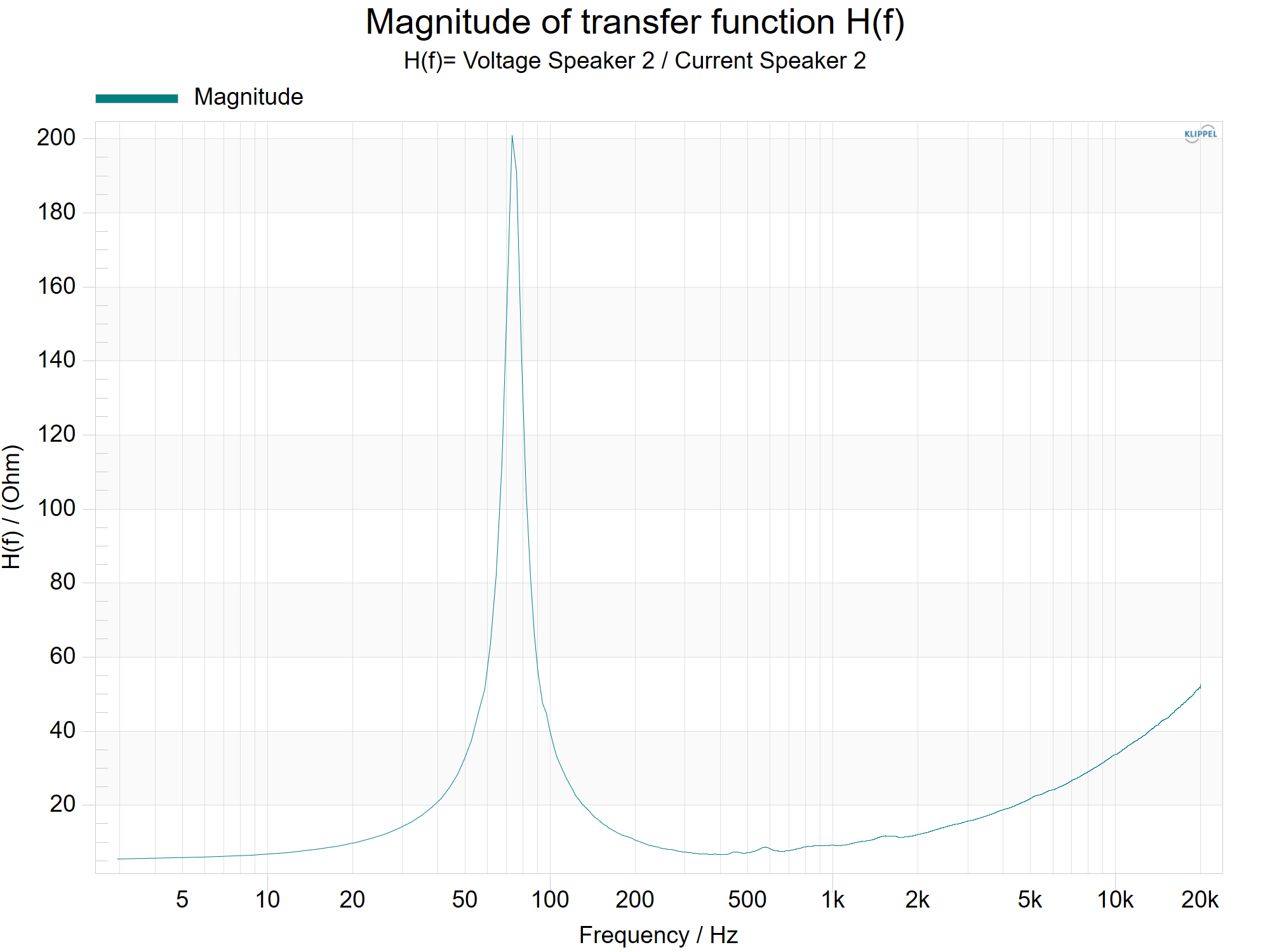

| Resonance(natural) Frequency | 74 Hz | |

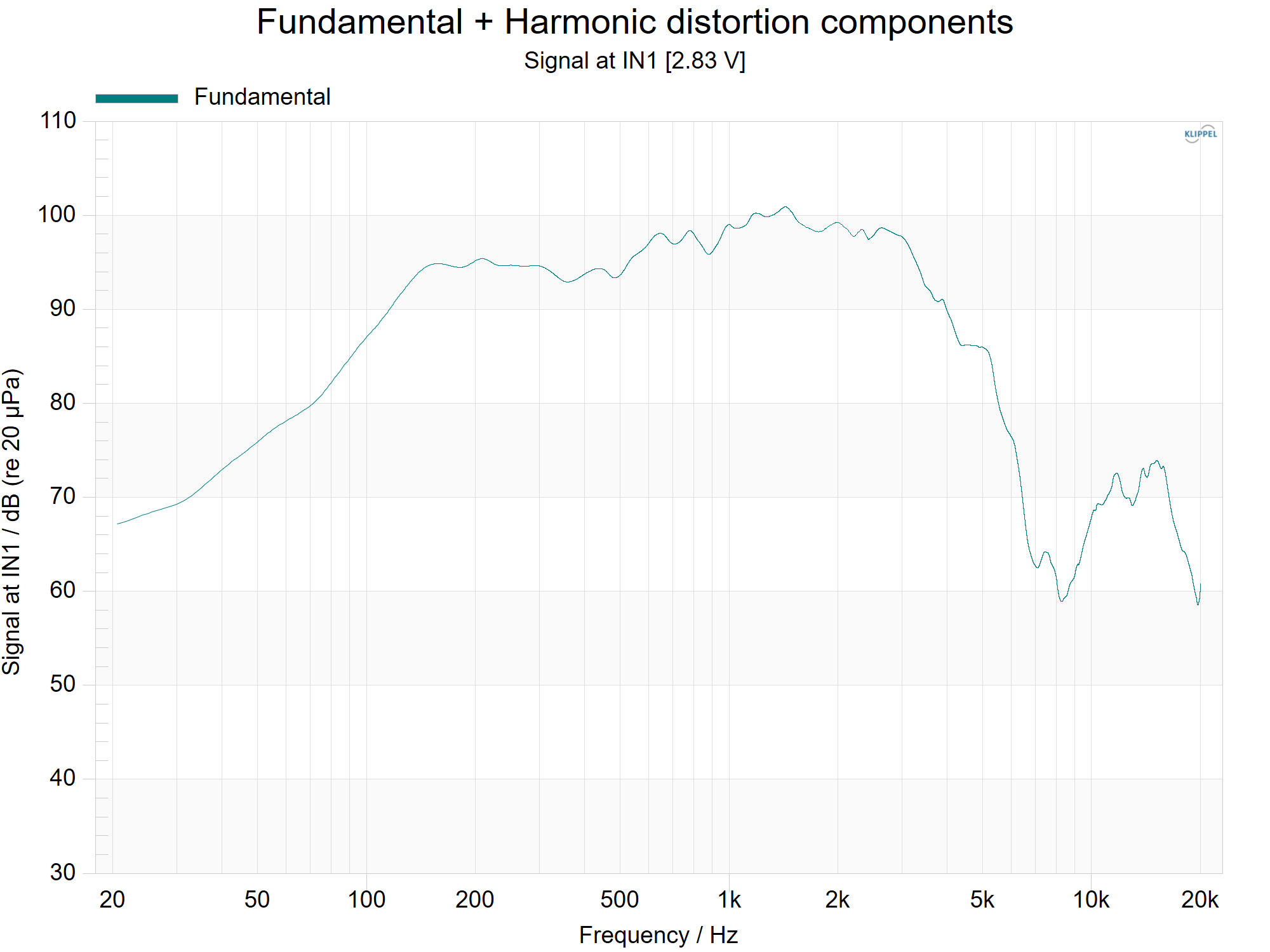

| Frequency Response | 74-4000 Hz | |
| Sensitivity(1W/1m) | 98 dB | |
| Voice Coil Diameter | 3''/ 75.5mm | |
| Winding material | PI(inside-outside) | |
| Magnet | Neodymium | |
| MOUNTING/SHIPPING INFORMATION | |
| Overall Diameter | 10.3/263 in/mm |
| Bolt Circle Diameter | 9.7/247 in/mm |
| Baffle cutout Diameter | 9.1/230 in/mm |
| Depth | 5.1/131 in/mm |
| Net Weight | 3.54 kgs |
| Shipping Weight | 3.94 kgs |
| Shipping Box | 29x29x16 cm |
| THIELE SMALL PARAMETERS | |
| FS Hz | 74 Hz |
| Vas | 17.9 dm³ |
| RE Ohms | 5.2 ohm |
| Qms | 8.4 |
| Qes | 0.22 |
| Qts | 0.21 |
| BL T/m | 22.6 T/m |
| MMS(grms) | 46.2 grams |
| Xmax(mm) | 5.1 mm |
| Sd | 356 cm² |
| Efficiency % | 3.1 % |
| EBP | 336 |
