10''LF Loudspeakers

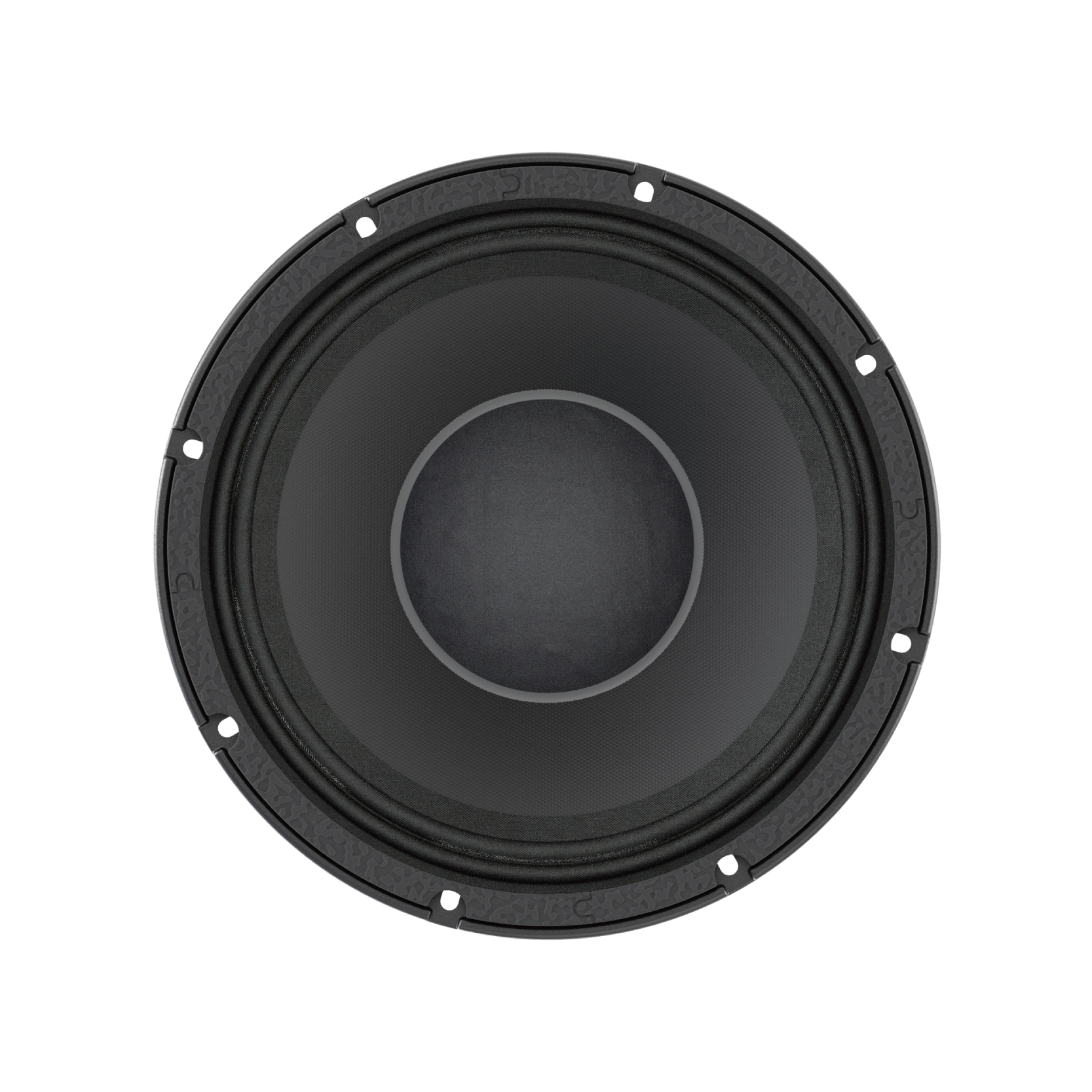

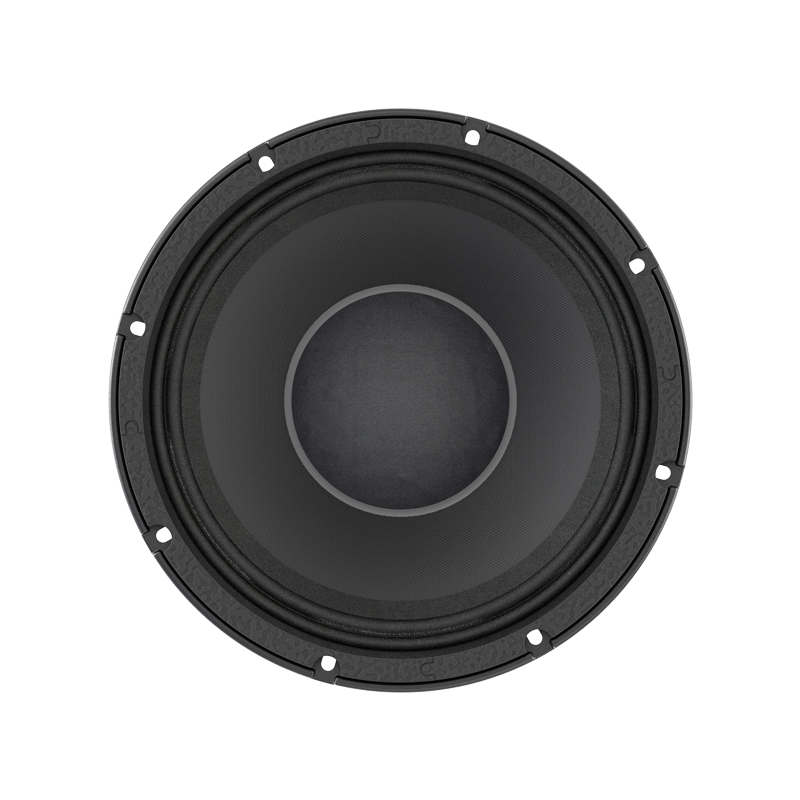

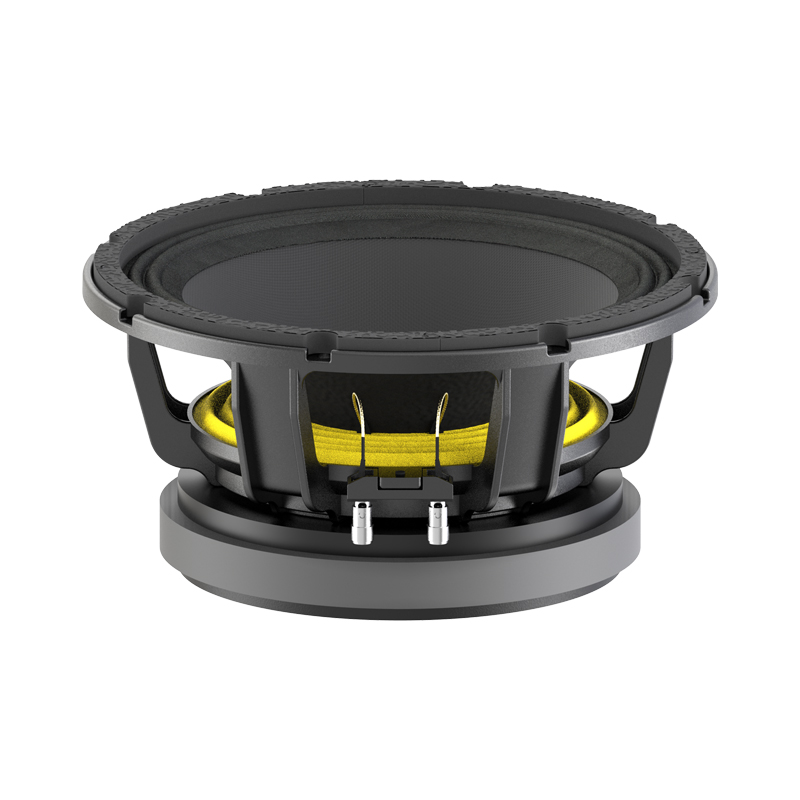

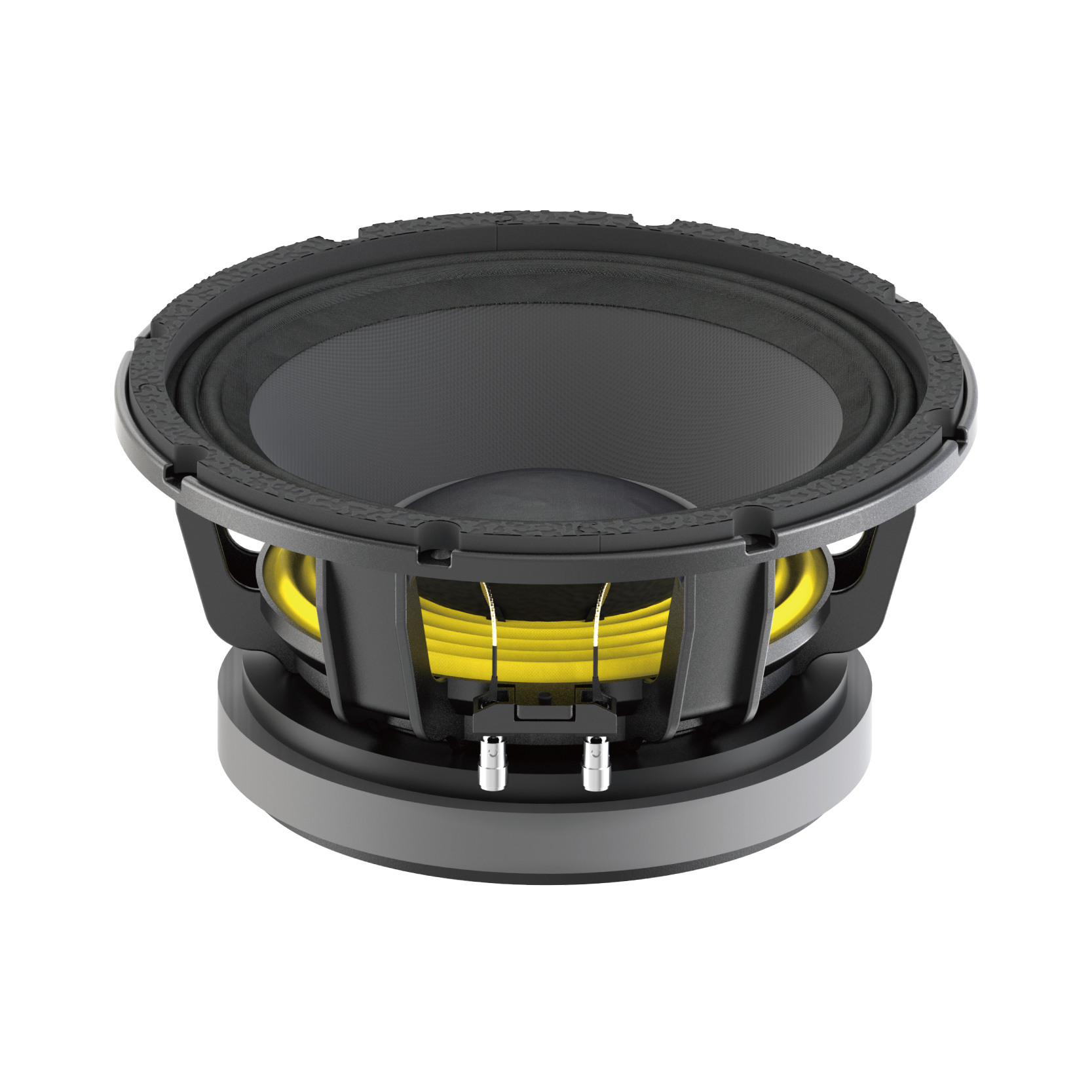

10MH300
10''LF Loudspeakers
●300W RMS capacity
●75 mm(3 in) inside-outside GSV voice coil
● 65-6000Hz response
● 97 dB sensitivity
● 8Ω nominal impedance
● Magnet 90Oz
| ELECTRO ACOUSTIC SPECIFICATIONS | |
| Nominal Chassis Diameter | 10/254 in/mm |
| MAX Power | 600 Watts |
| RMS Power | 300 Watts |
| lmpedance | 8 Ohm |
| Resonance(natural) Frequency | 65 Hz |
| Frequency Response | 65 Hz–6000 Hz |
| Sensitivity(1W/1m) | 97 dB |
| Voice Coil Diameter | 3/75 in/mm |
| Winding material | SV(inside-outside) |
| Former material | Glass Fiber |
| Magnet |
90 Oz 200*86*20mm |
| MOUNTING/SHIPPING INFORMATION | |
| Overall Diameter | 10.4/265 in/mm |
| Bolt Circle Diameter | 9.6/245 in/mm |
| Baffle cutout Diameter | 9/228 in/mm |
| Depth | 5.5/140 in/mm |
| Net Weight | 8.2/18.08 kgs/lb |
| Shipping Weight | 8.7/19.18 kgs/lb |
| Shipping Box |
28.5X28.5X15 cm 11.61x11.61x5.91 in |
| THIELE SMALL PARAMETERS | |
| FS | 65 Hz |
| Vas | 21.4 dm³ |
| RE | 5.4 ohm |
| Qms | 14.1 |
| Qes | 0.268 |
| Qts | 0.263 |
| BL | 19.6 T/m |
| MMS | 47.1 grams |
| Xmax | 2.15 mm |
| Sd | 346.36 cm² |
| Efficiency | 2.1 % |
| EBP | 25 |
