1.75" HF Drivers

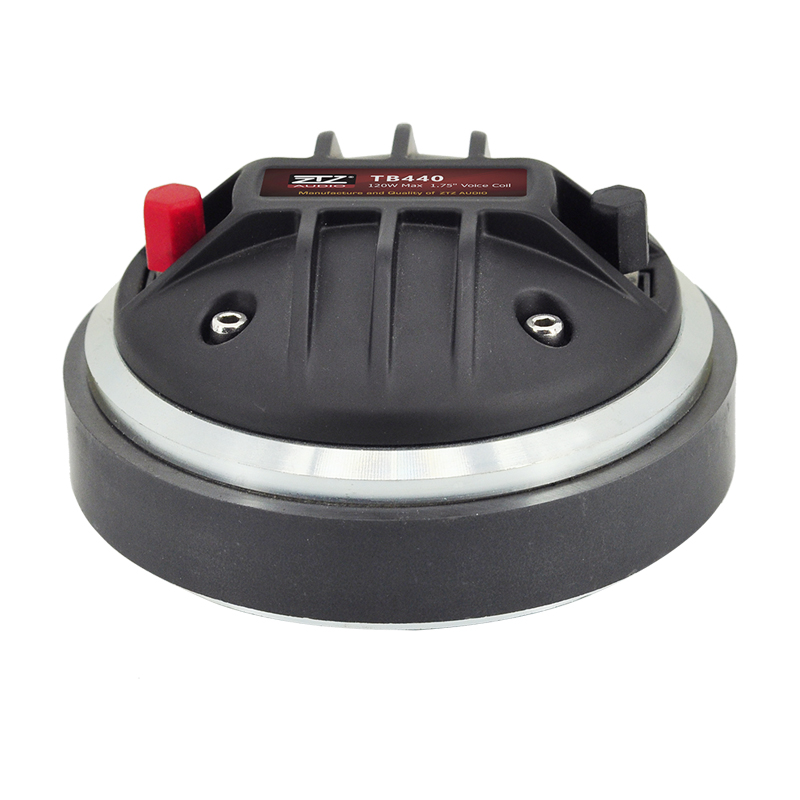

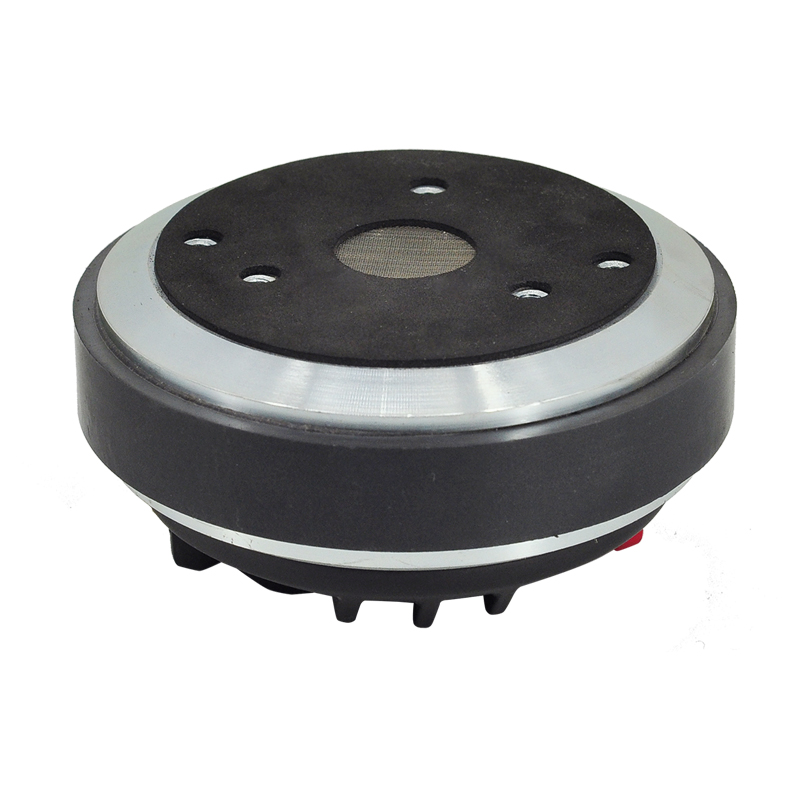

TB440
1.75" HF Drivers
●1"throat diameter
●44.4mm(1.75 in) CCAW VC
● 60 Watts RMS
● Titanium diaphragm
● 60 Watts RMS
● 1.5KHz-18KHz response
● 108.5 dB sensitivity
● 8Ω nominal impedance
| Throat Diameter | 1/25 in/mm |
| MAX Power | 120 Watts |
| RMS Power | 60 Watts |

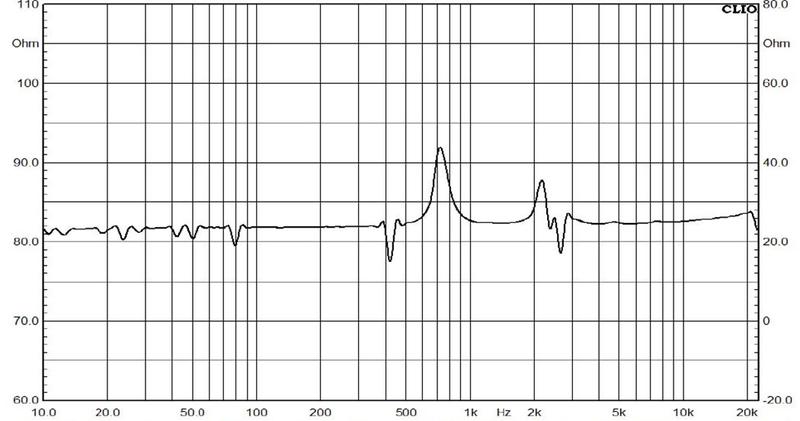

| Impedance | 8 Ohm |

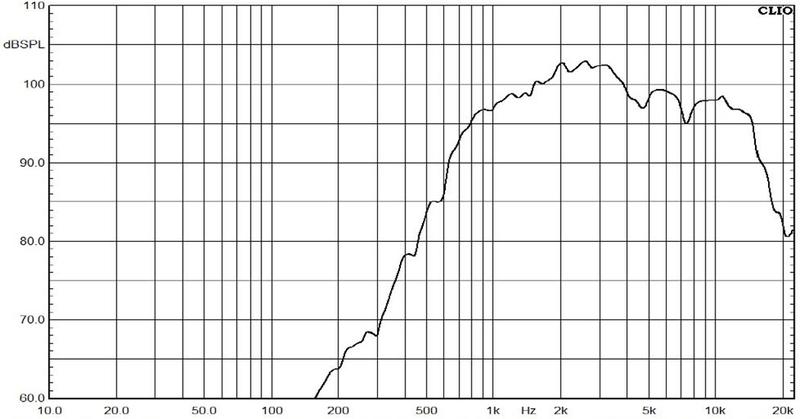

| Frequency Response | 1.5k Hz-18k Hz Hz |
| Sensitivity(1W/1m) | 108.5 dB |
| Voice Coil Diameter | 1.75/44.4 in/mm |
| Voice Coil Material | CCAW |
| Magnet | 30 Oz |
| Overall Diameter | 4.72 /120 in/mm |
| Depth | 2.36 / 60 in/mm |
| Net Weight | 2.05 kgs |
| Shipping Weight | 2.1 kgs |
| Shipping Box | 120X120X54 mm |
