1.5''throat diameter

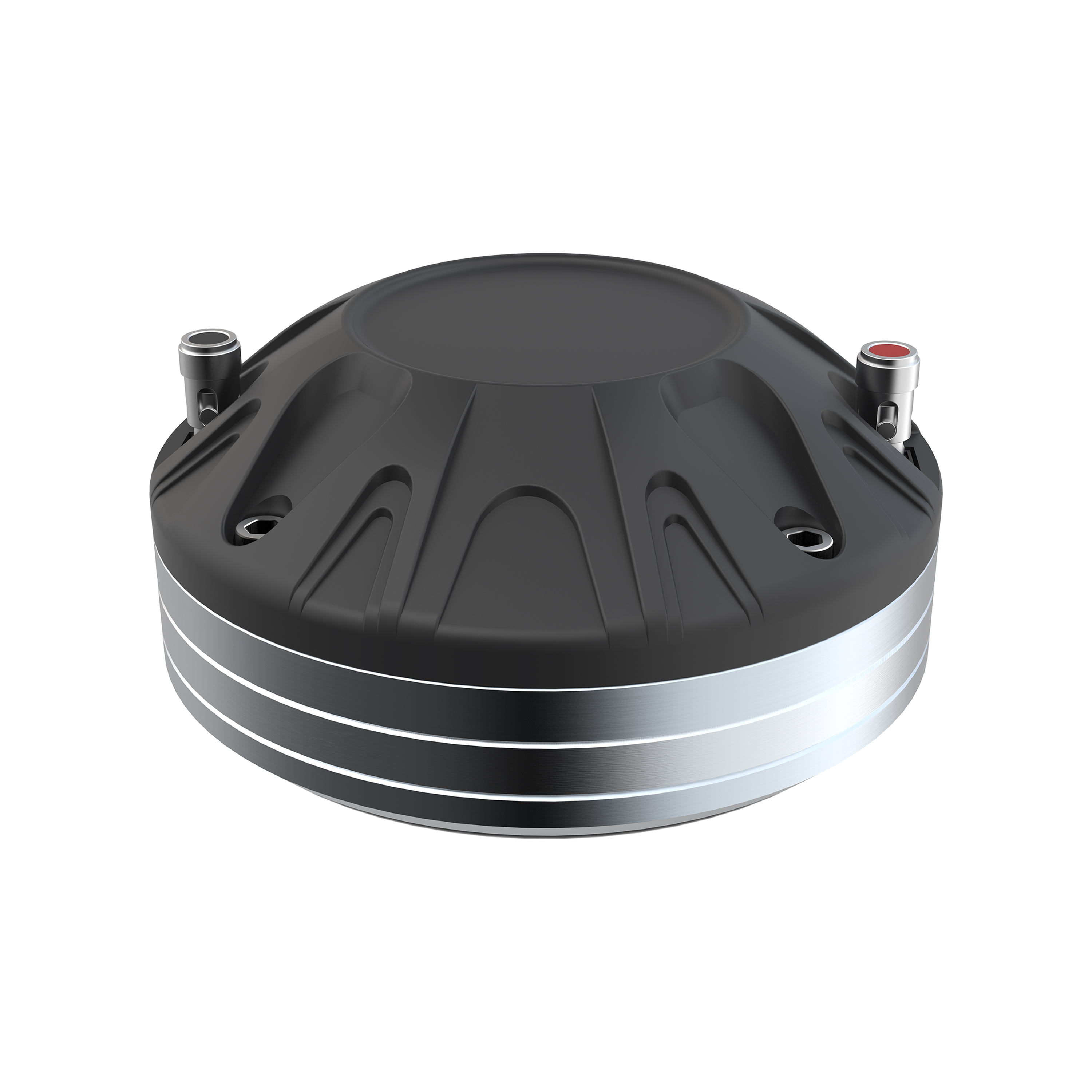

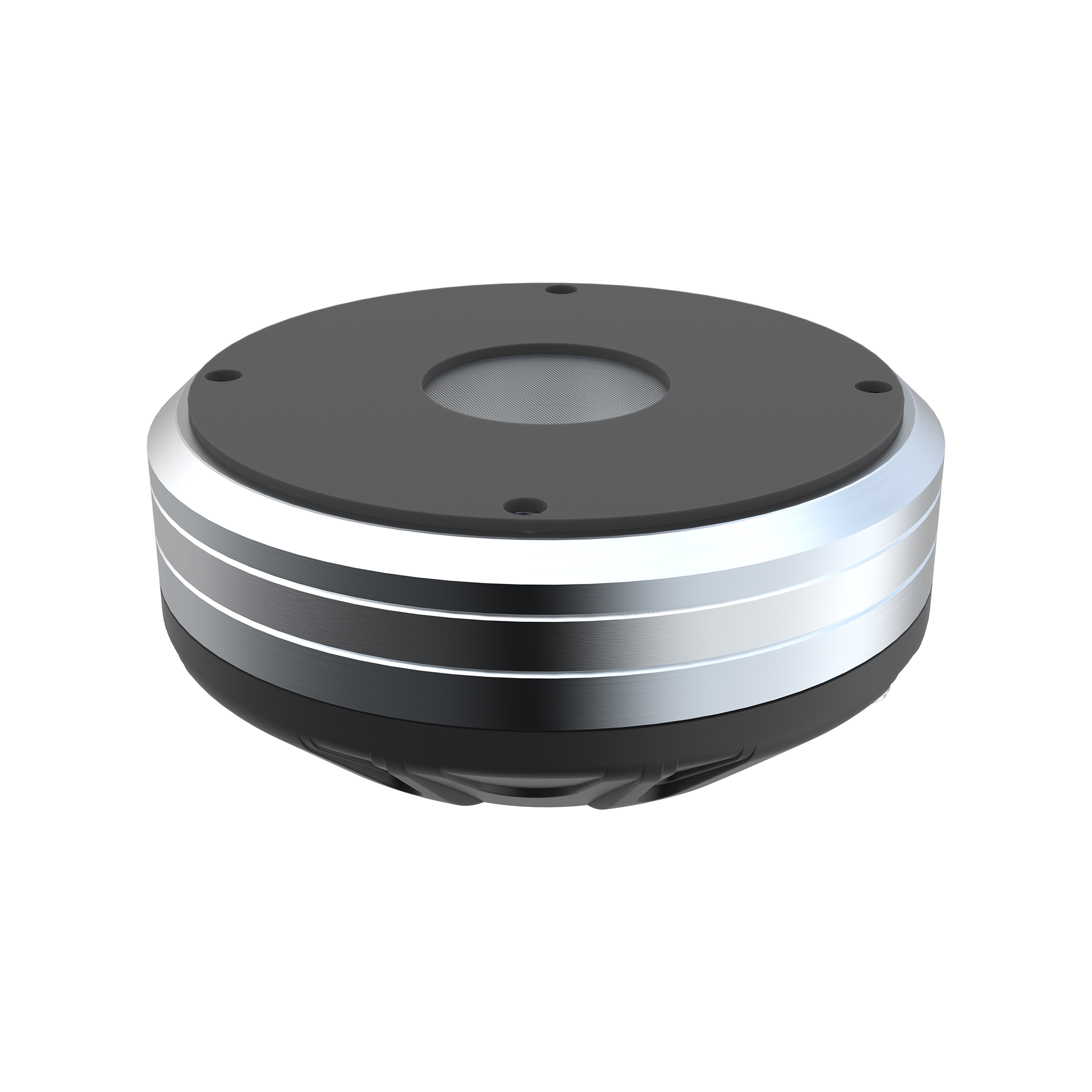

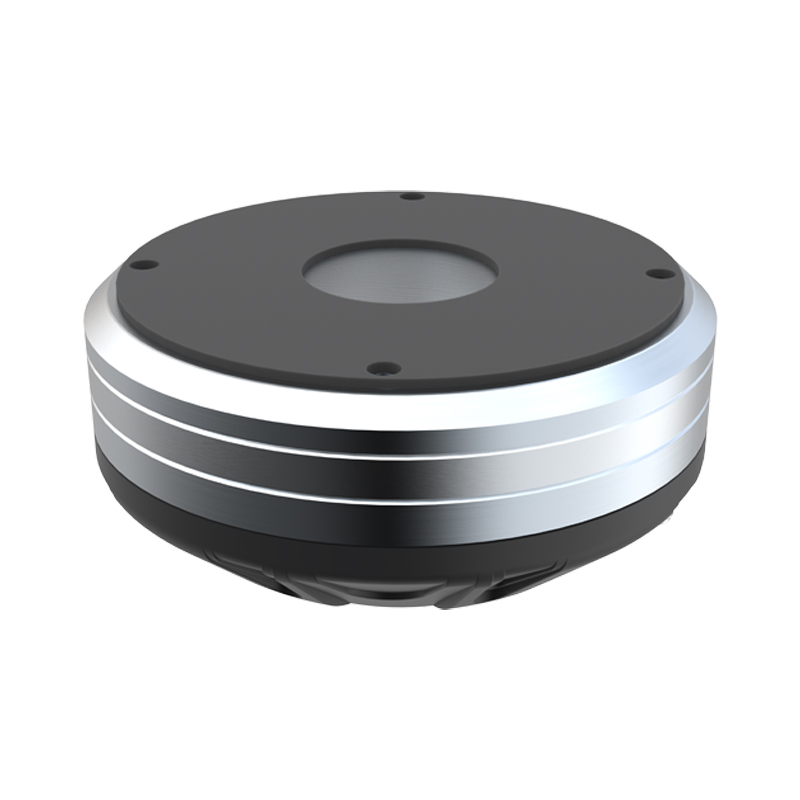

TN-NX7210
1.5''throat diameter
●74.4mm(3 in) CCAR VC
● 100 Watts RMS
● Titanium diaphragm
● 800Hz-18KHz response
● 106 dB sensitivity
● 8Ω nominal impedance
● Magnet Neodymium
| ELECTRO ACOUSTIC SPECIFICATIONS | |
| Throat Diameter | 1. 5/38 in/mm |
| MAX Power | 200 Watts |
| RMS Power | 100 Watts |
| Impedance | 8 Ohm |
| Frequency Response | 800 Hz-18k Hz |
| Sensitivity(1W/1m) | 106 dB |
| Voice Coil Diameter | 3"/74.4mm |
| Windling material | CCAR |
| Magnet | Neodymium |
| Diaphragm material | Titanium diaphragm |
| MOUNTING/SHIPPING INFORMATION | |
| Overall Diameter | 4. 9/124 in/mm |
| Depth | 2. 3/58 in/mm |
| Net Weight | 2. 2 kg |
| Shipping Weight(1 pc) | 2.3 kg |
| Shipping Box(1 pc) | 13. 5X13. 5X6.5 cm |
